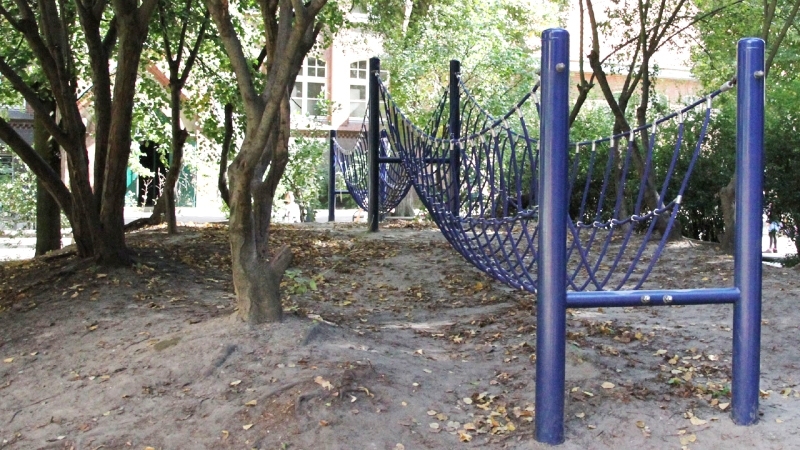

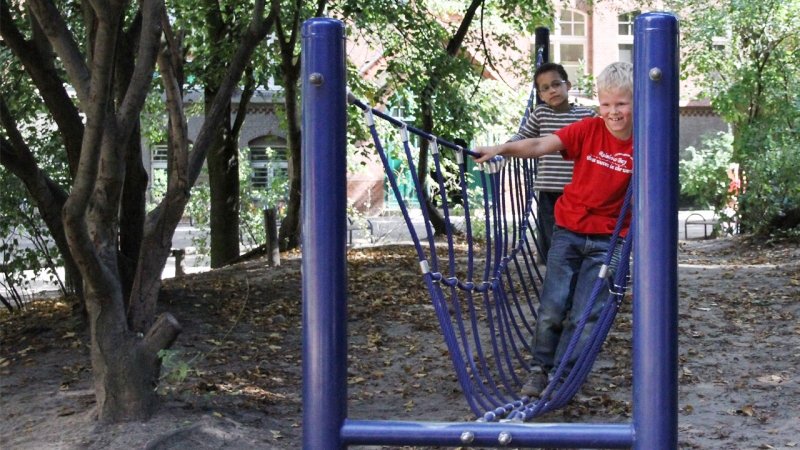

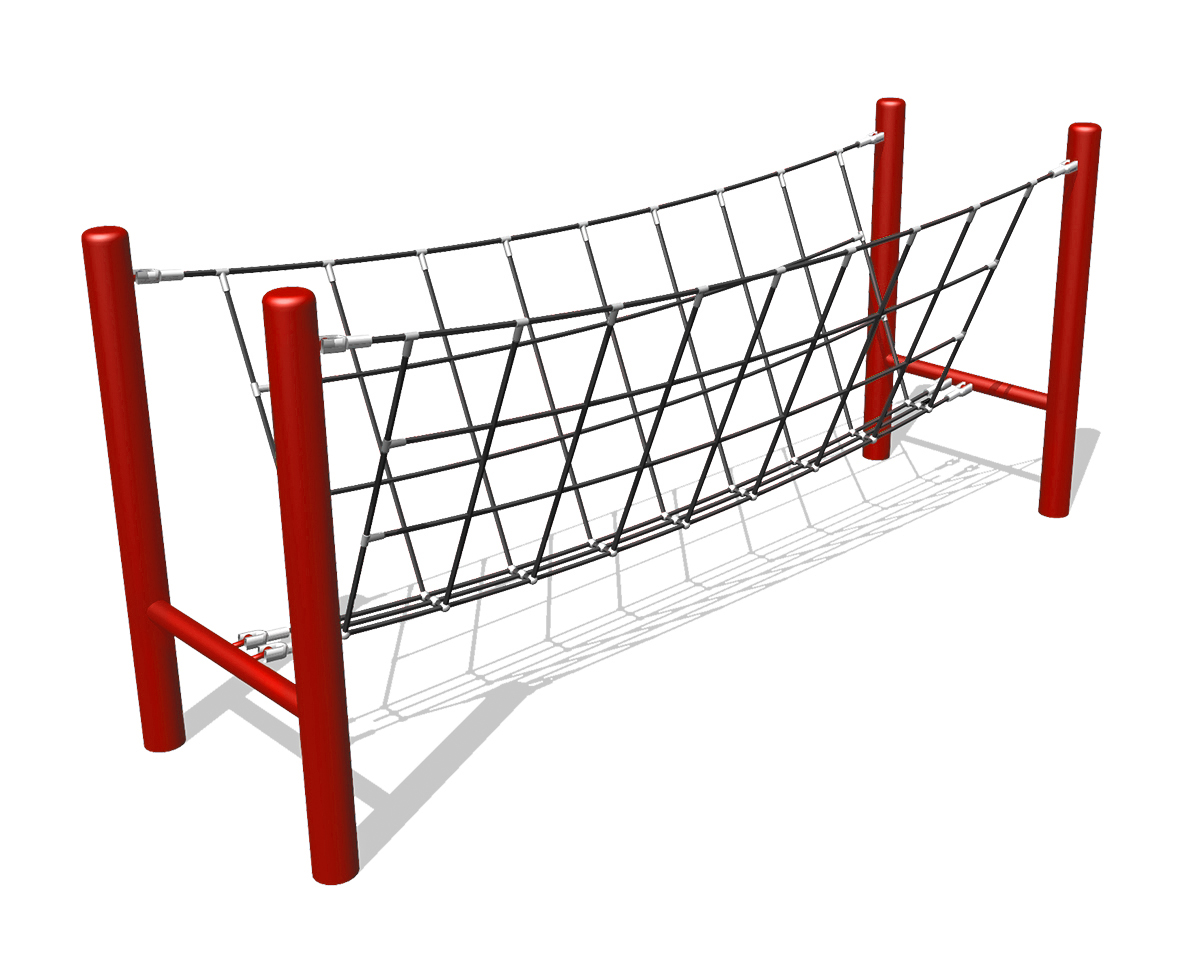

V-bridge

smb-bridges are ideal additional elements to add that certain something to our framework units.

Of course are the bridges also available as a separate device. Depending on the length of the bridge are center supports or special support ropes and fittings required.

Bridge

Rope 16 mm
Parapet height 850 mm
From 90 mm step width to 800 mm width (V-shape)

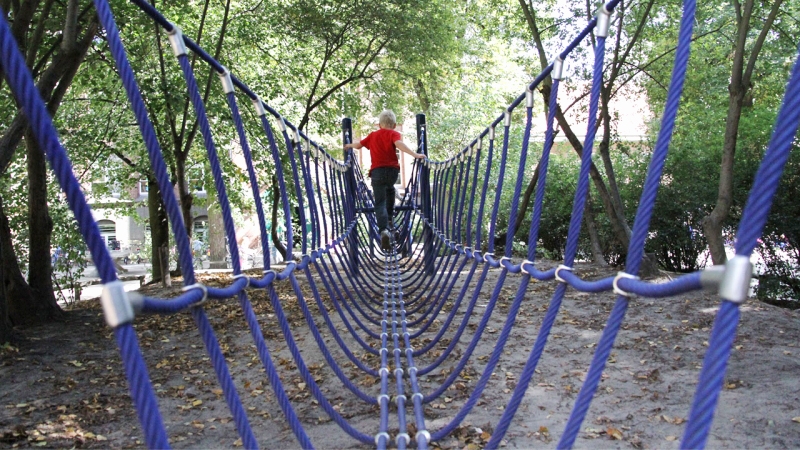

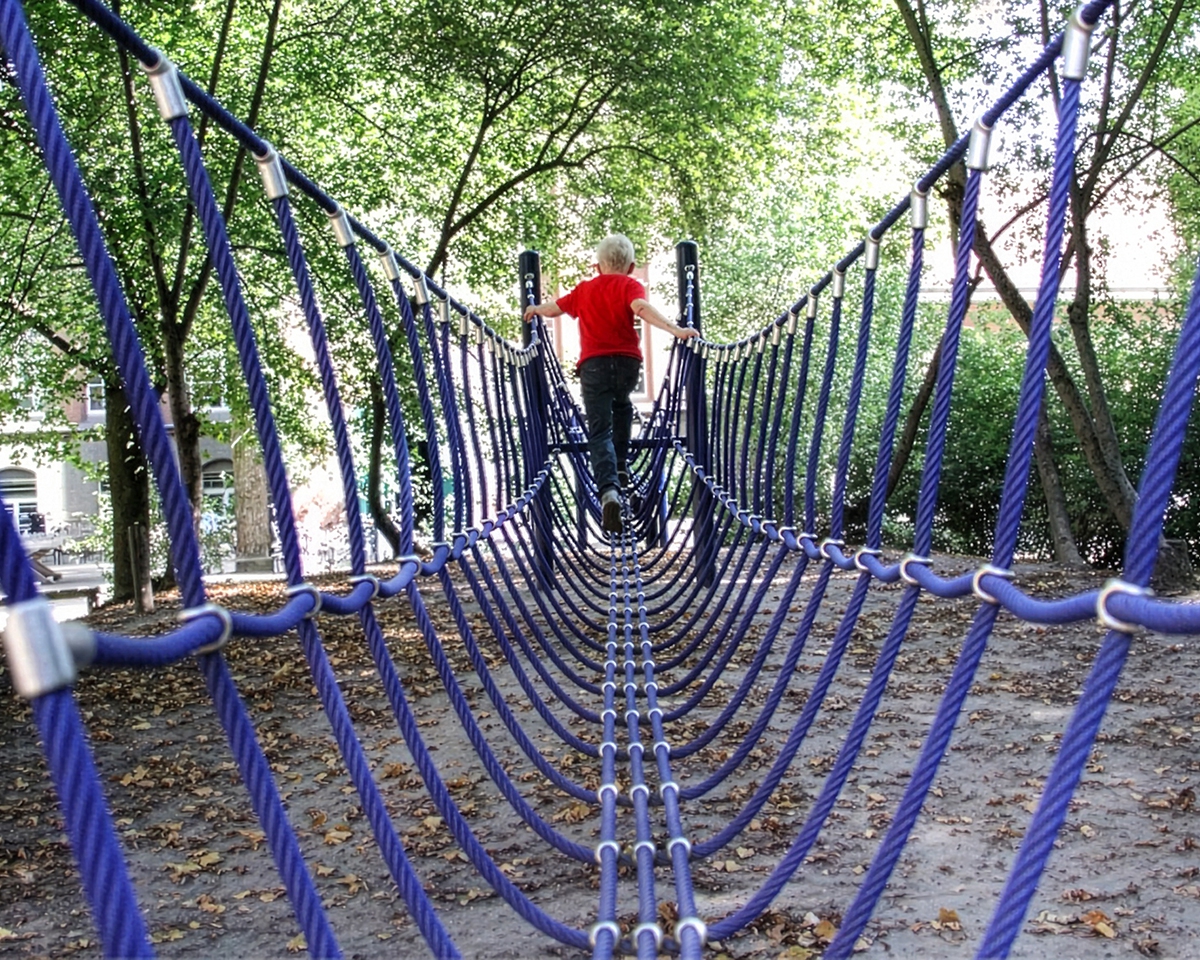

Step rope: 3 side by side running ropes, pressed with robust aluminum ball nodes.
Distance of the vertical ropes at least 250 mm

Standard lengths up to 6.00 m, anything longer than 6 m has to be in consultation.

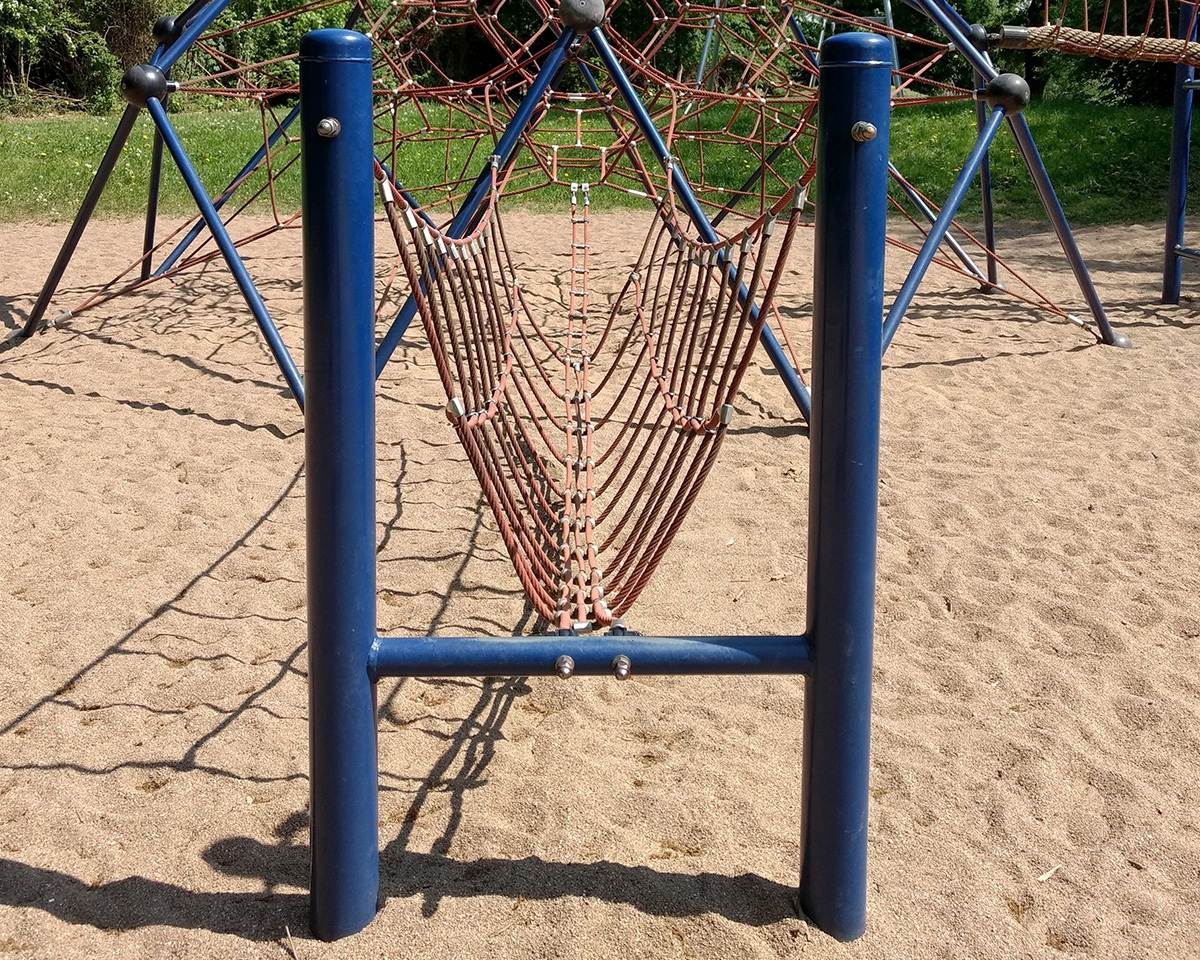

Entry support

Support construction out of steel tube 108 x 3,6 mm; protected against corrosion by galvanizing and subsequent powder coating RAL color.

Width (center) 800 mm

Entry height 400 mm
Post height of playground 1350 mm

We will also manufacture bridges according to your individual specifications.
