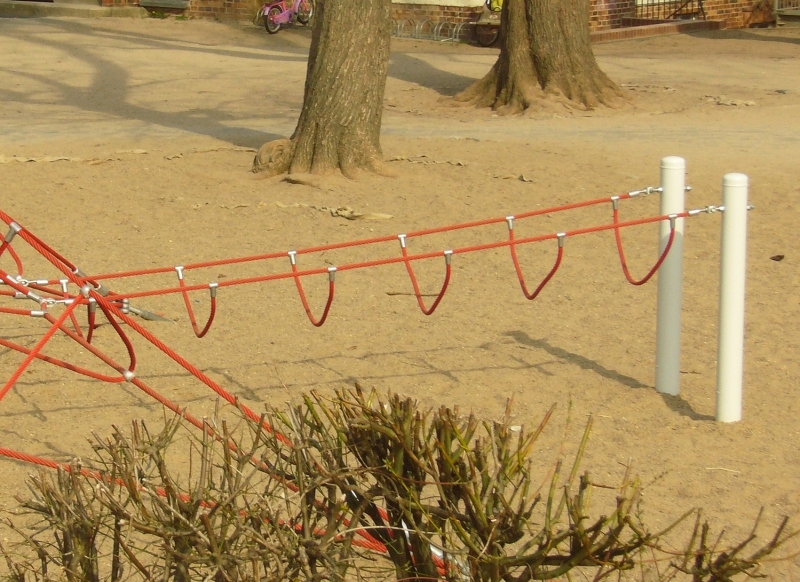

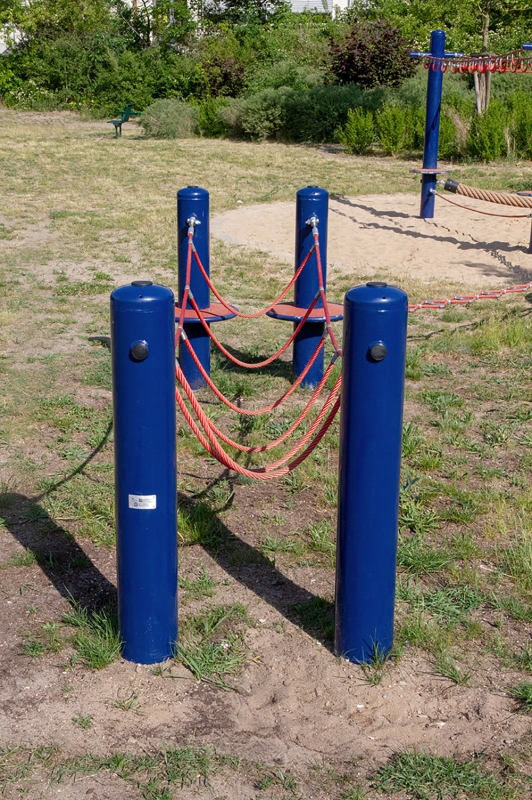

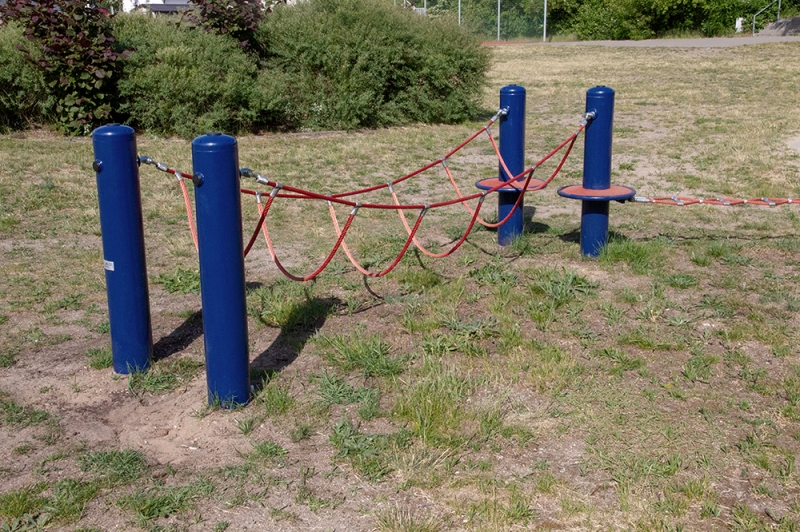

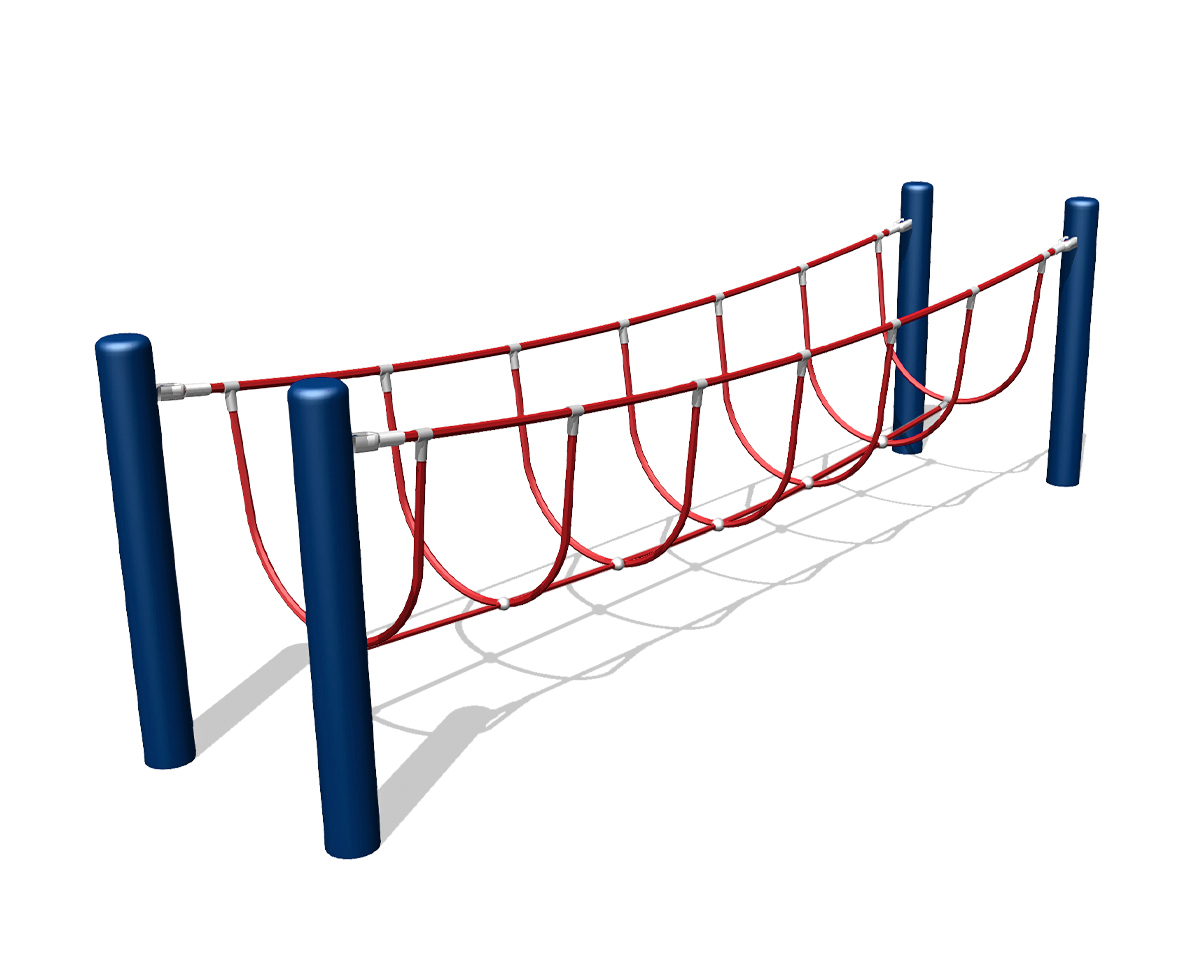

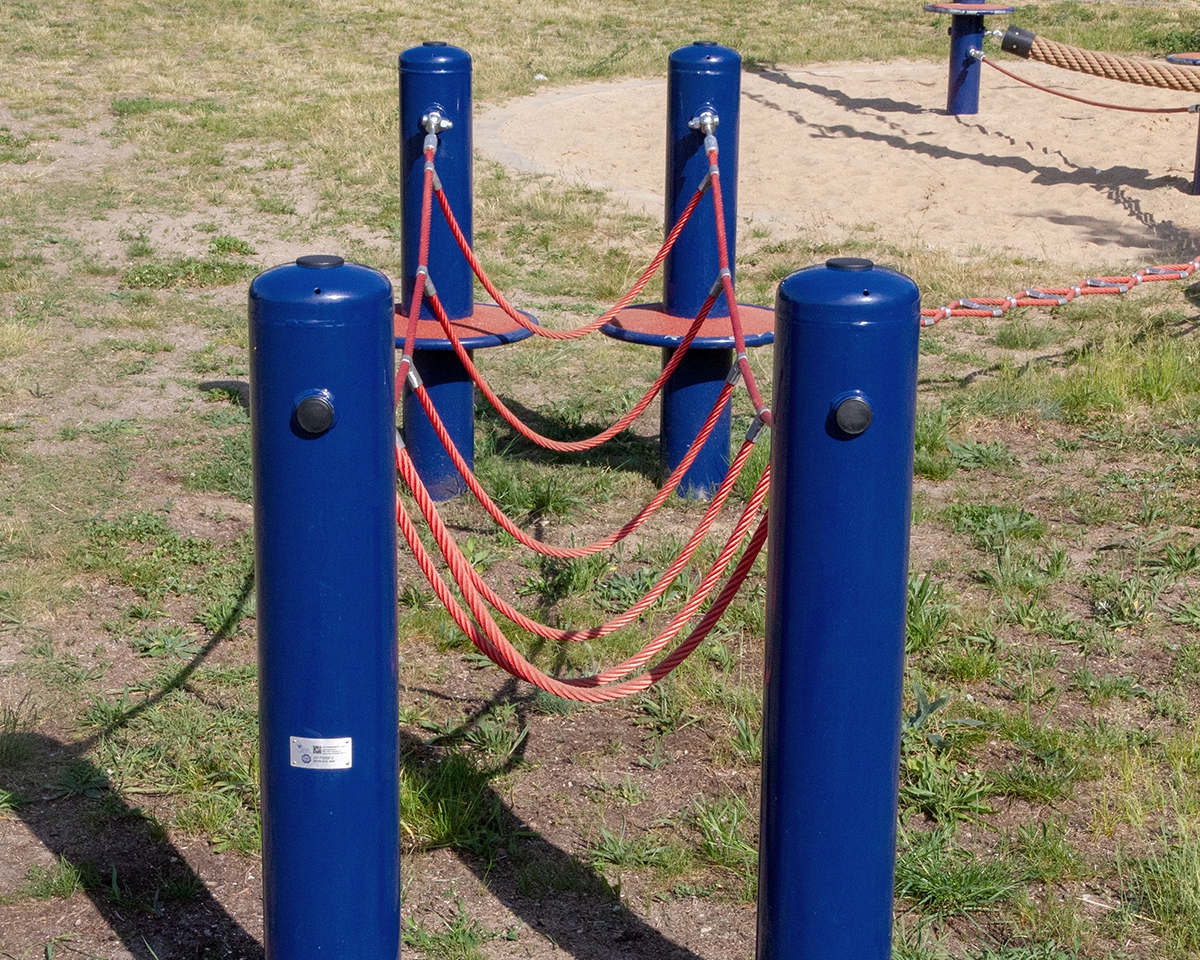

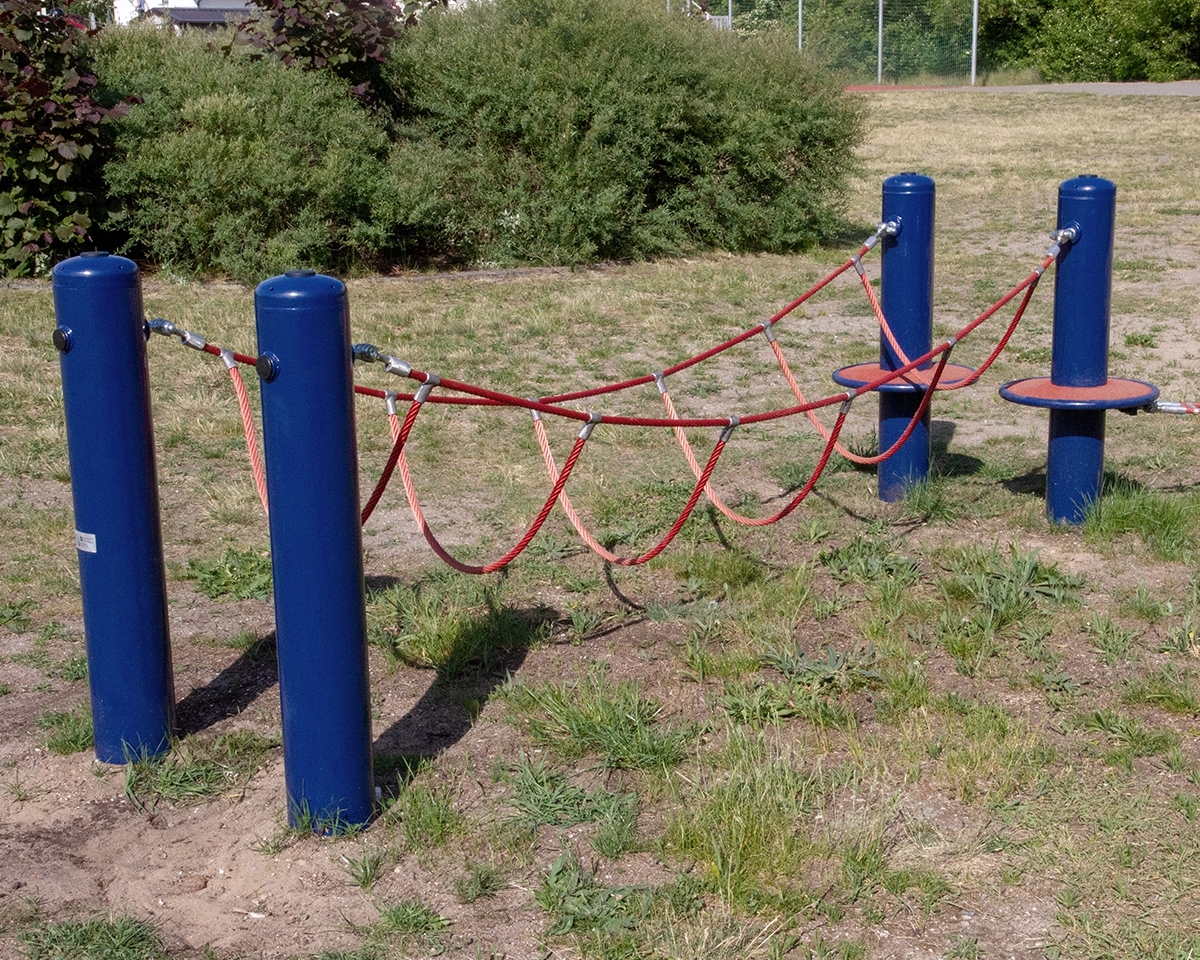

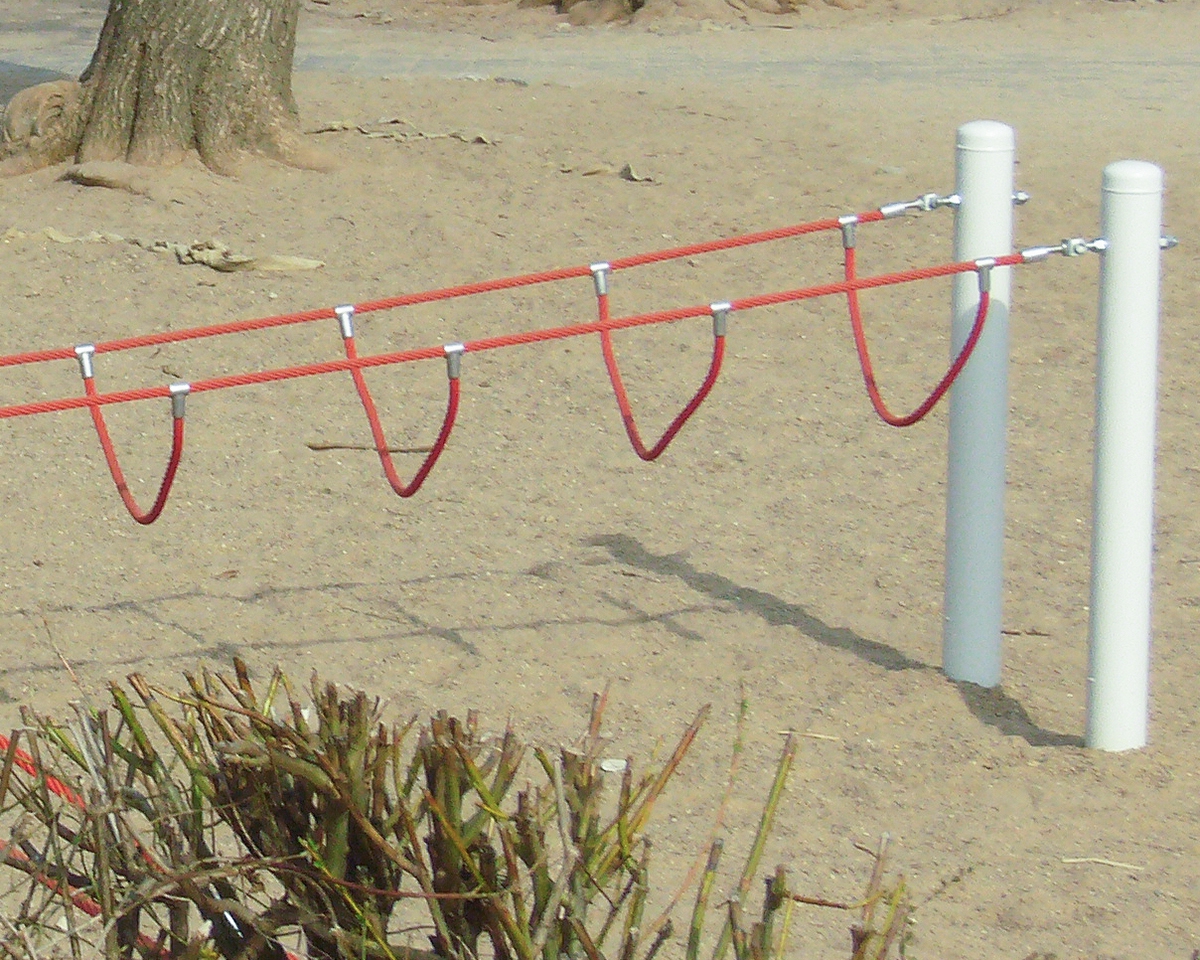

Loop-bridge

smb-bridges are ideal additional elements to add that certain something to our framework units.

Of course are the bridges also available as a separate device. Depending on the length of the bridge are center supports or special support ropes and fittings required.

Bridge

Border rope 22 mm
Loop rope 20 mm
Distance of the loop ropes 500 mm
Width 600 mm
Entry height 300 mm
Handrail height 800 mm
Fixation: bracket/eye bolt M16

Entry support

Support construction out of steel tube 108 x 3,6 mm; protected against corrosion by galvanizing and subsequent powder coating RAL color.

Width (center) 600 mm

We will also manufacture bridges according to your individual specifications.
