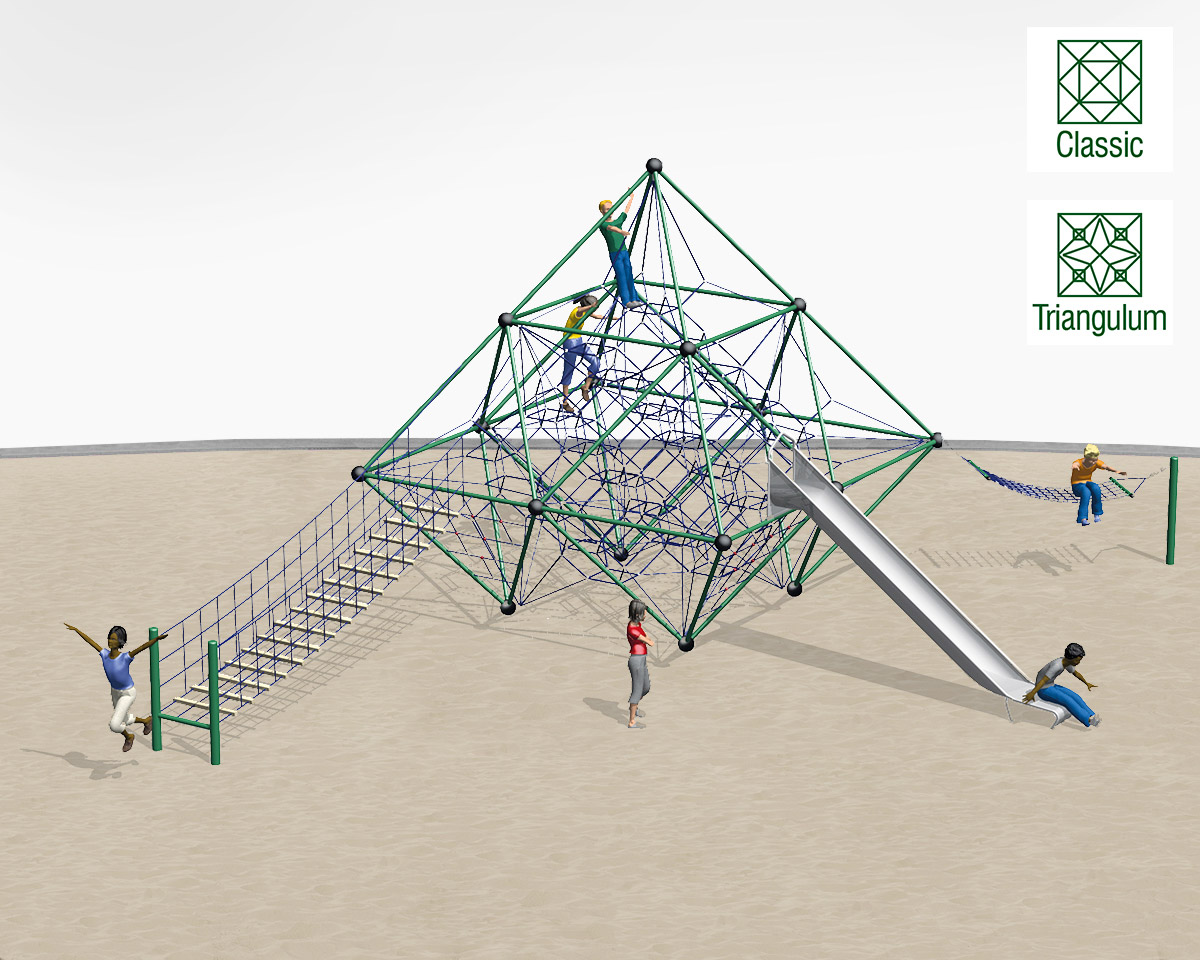

Mount Logan variant 6

No. 3153041, 3153341 (Triangulum)

Unit space area12.26 x 8.81 m
Safety space area15.33 x 12.62 m
Height of unit5.49 m
Age range5+
Number of users60
Free fall height2.30 m
Heaviest component175 kg
Total weight1475 kg
Assembly time7.50 hours
Installers3 persons
Foundations
Basic unit4 (1.30 m³ total quantity of concrete)
Additional elements2 (2.20 m³ total quantity of concrete) + Anchor plate

Mount Logan variant 6 consisting of the following individual components:

1 Basic unit
1 Hammock swing
1 Slide small, narrow, with anchor plate included
1 Rung bridge (5.00 m)

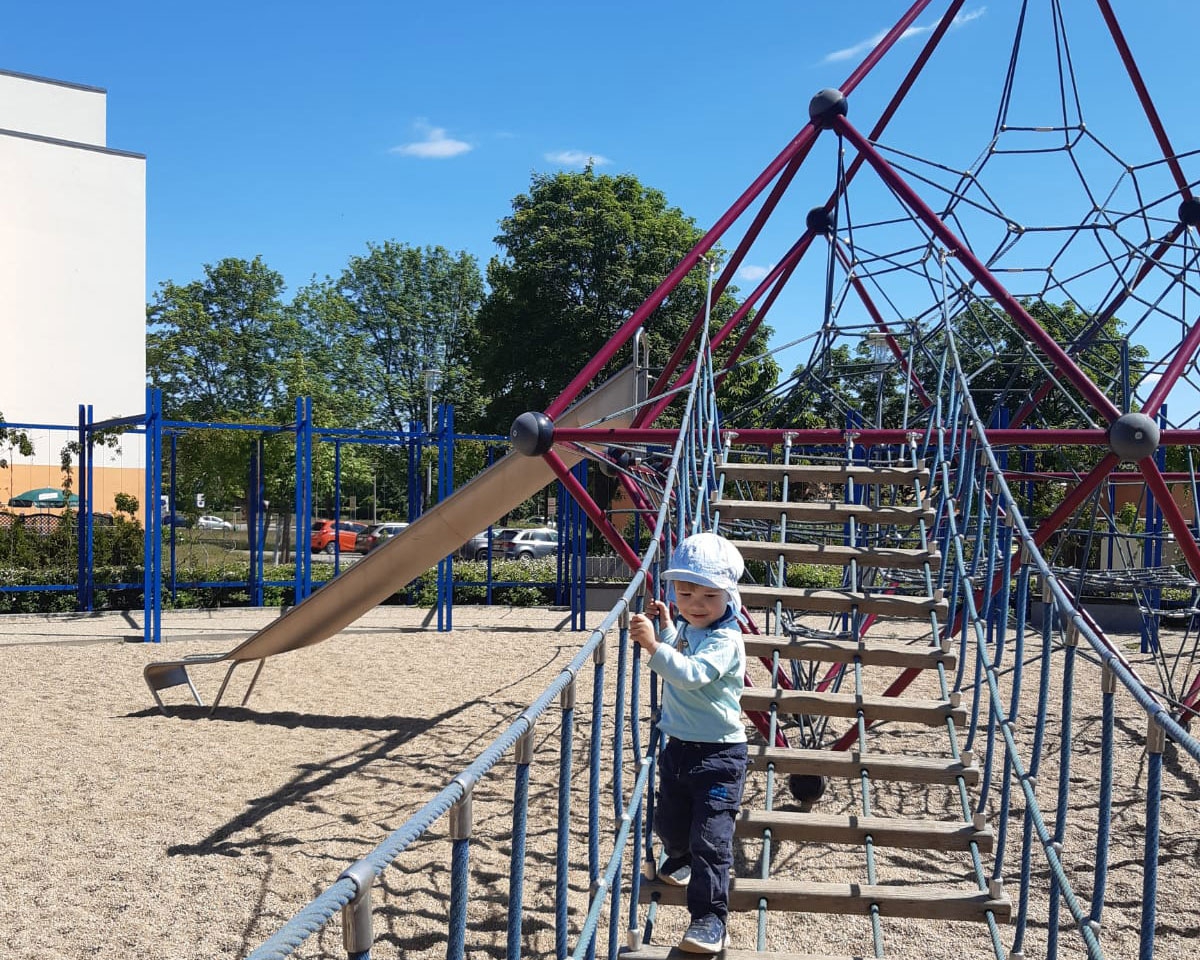

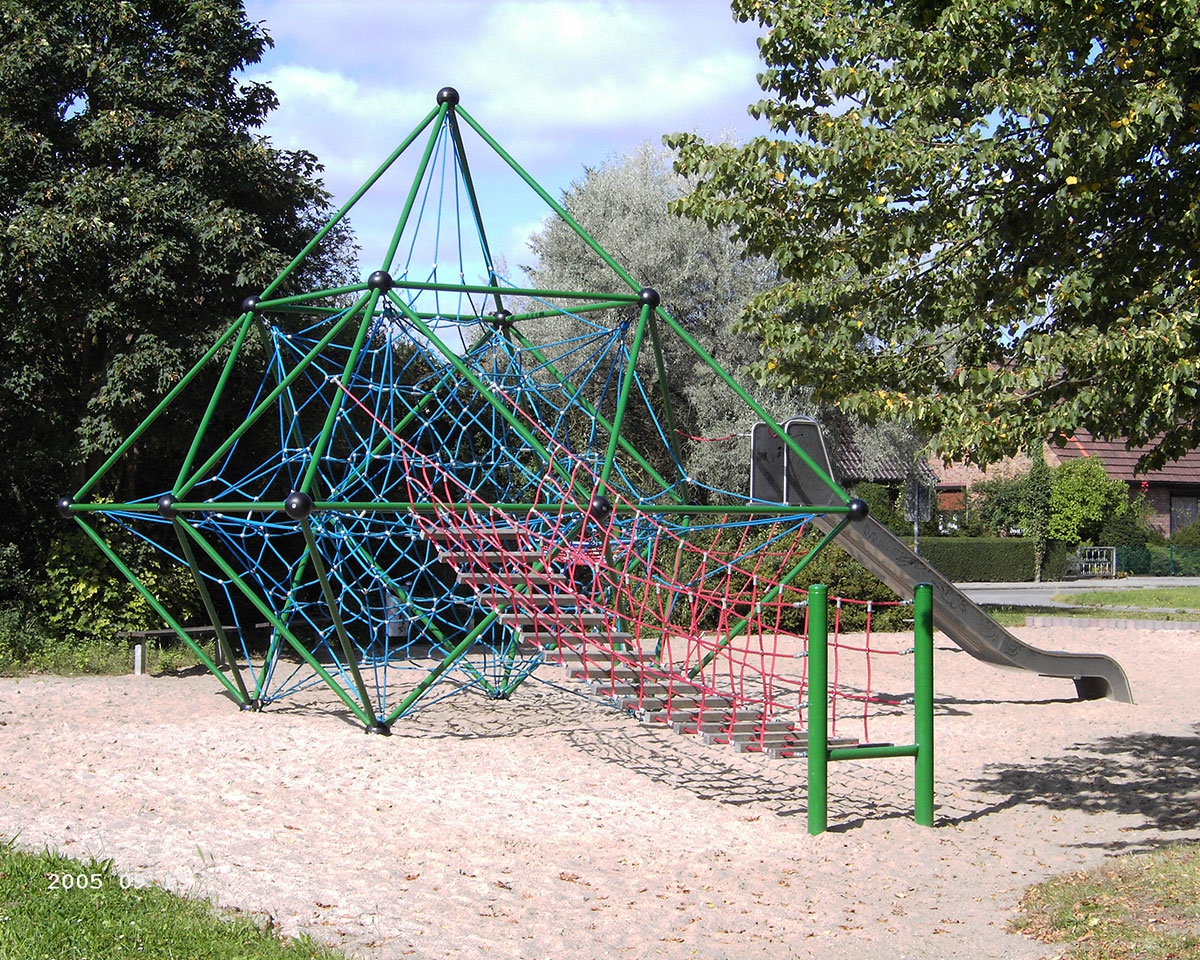

Always a highlight: The entry into the unit via a bridge construction.

The rung bridge has a length of 5.00 m. The entry support is galvanized and powder coated so that a permanent protection against corrosion is given. It allows a wide range of RAL colors.

A stainless slide with a bracket height of 1.80 m and a hammock swing complete the Mount Logan variant 6.



Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Additional elements Mount Logan

  • Triangular netTriangular net


  • Climbing net half-sideClimbing net half-side


  • Climbing net full-sideClimbing net full-side


  • Trapezoid net half-sideTrapezoid net half-side


  • Trapezoid net full-sideTrapezoid net full-side


  • Rung bridgeRung bridge


  • Catwalk bridgeCatwalk bridge


  • Jungle bridgeJungle bridge


  • Wobbly bridgeWobbly bridge


  • Hand over hand ladderHand over hand ladder


  • Hammock swingHammock swing


  • Hand over hand loop ropeHand over hand loop rope


  • Climbing rope, externalClimbing rope, external


  • Climbing rope, internalClimbing rope, internal


  • Climbing ladder, internalClimbing ladder, internal


  • Balancing ropeBalancing rope


  • Slide small, narrowSlide small, narrow


  • Slide small, wideSlide small, wide


  • Slide large, curved, party tunneledSlide large, curved,
    party tunneled
    (Classic)
  • Slide large, partly tunneledSlide large,
    partly tunneled
    (Classic)
  • Anchor frame, hot-dip-galvanisedAnchor frame,
    hot-dip-galvanised


  • colorballscolorballs
