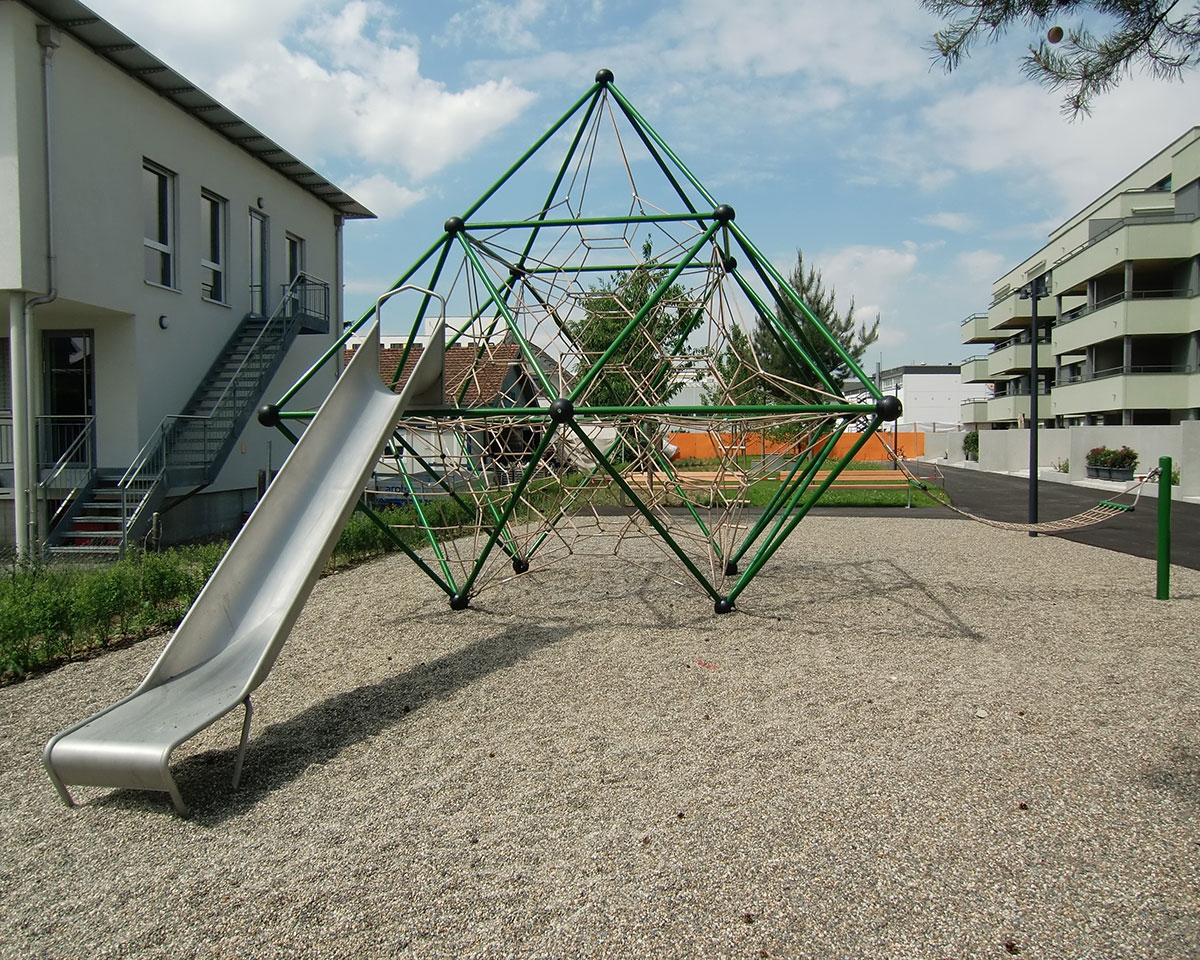

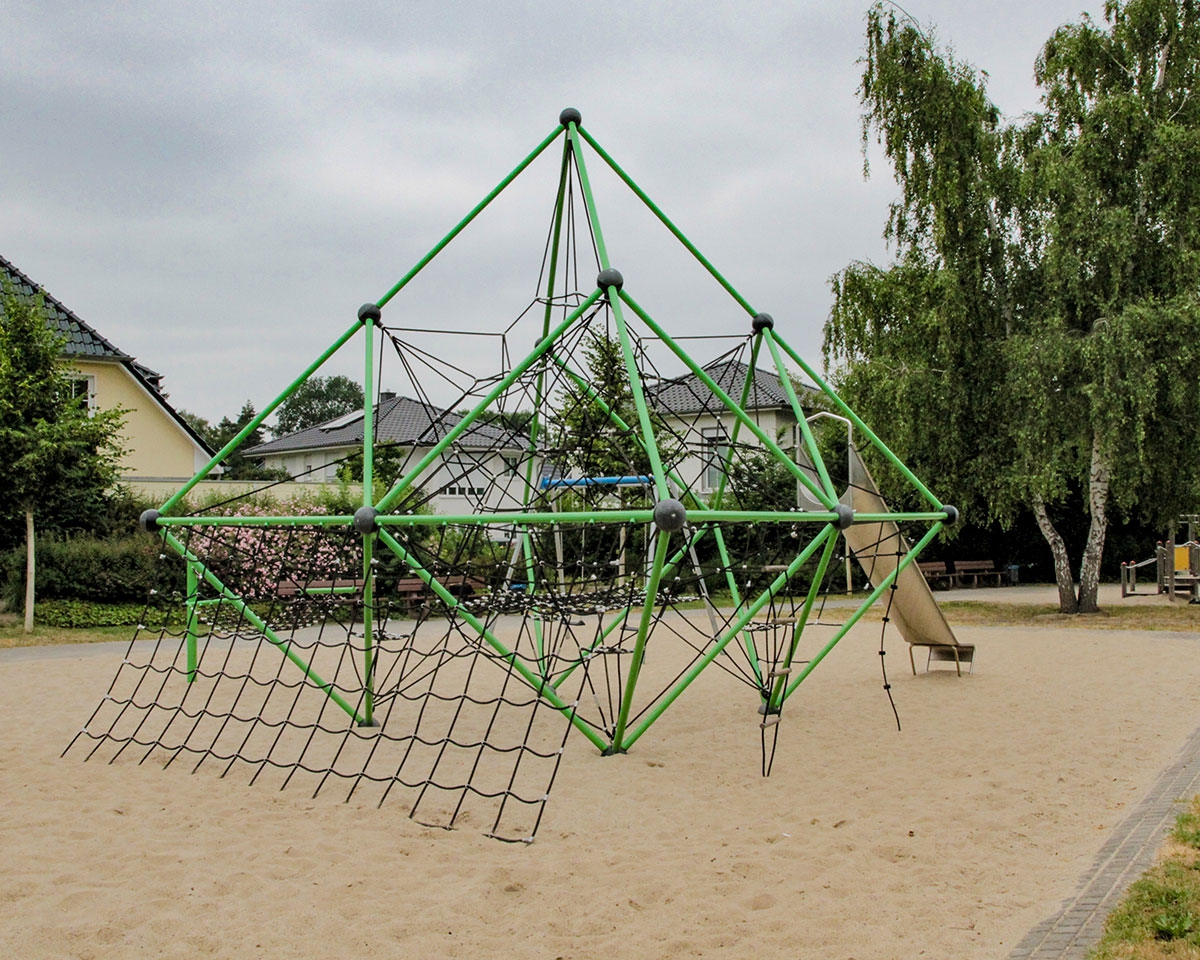

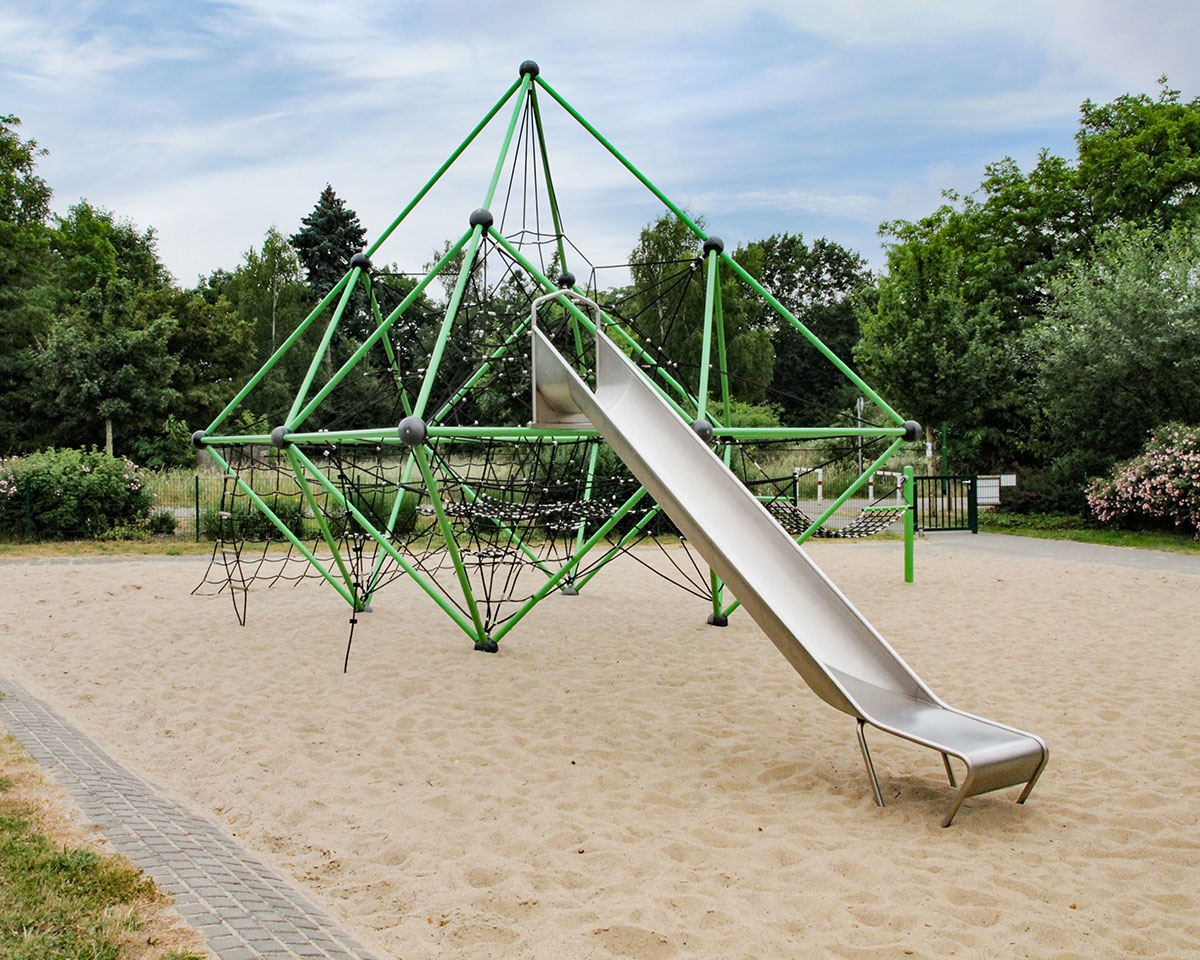

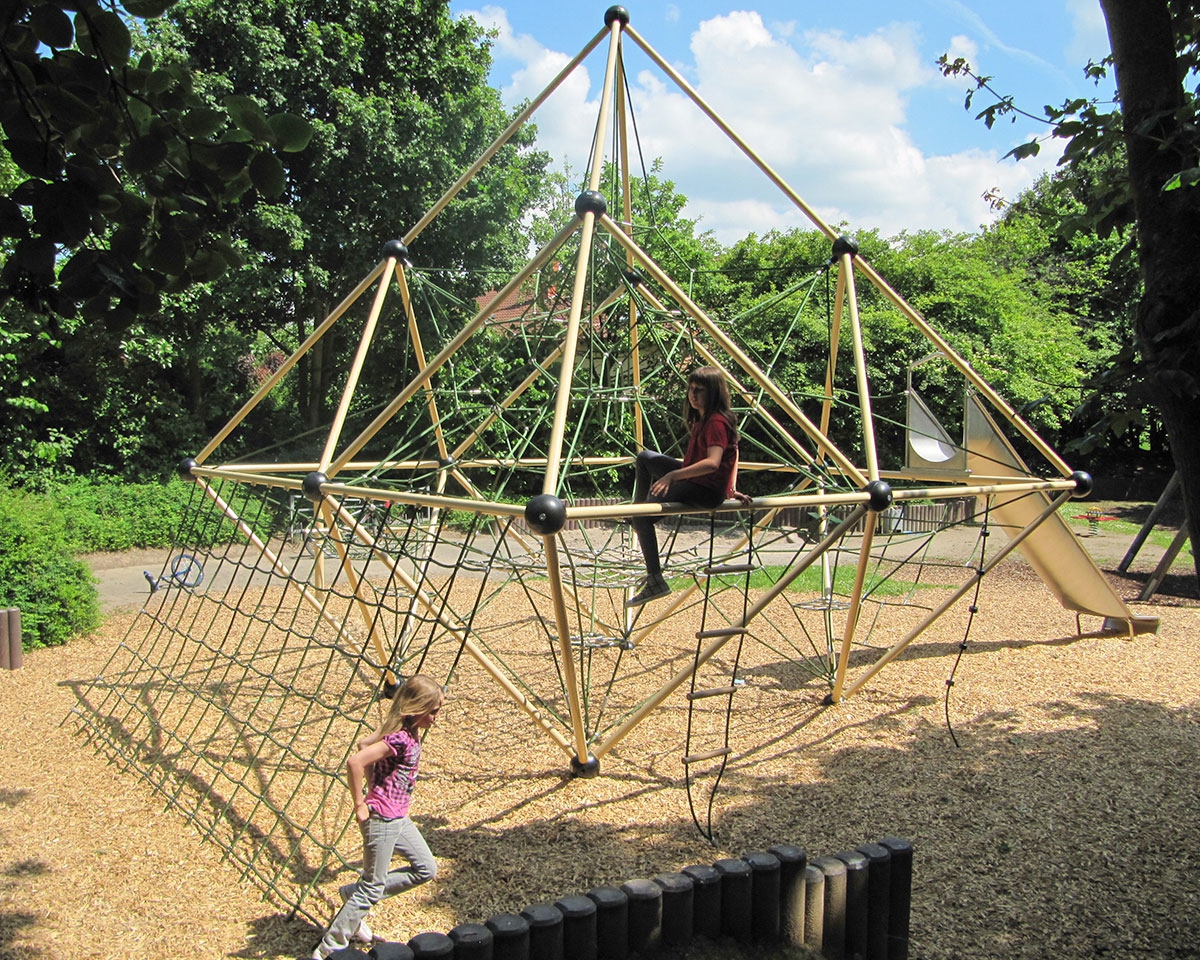

Mount Logan variant 5

No. 3153040, 3153340 (Triangulum)

Unit space area9.76 x 8.06 m
Safety space area13.26 x 11.36 m
Height of unit5.49 m
Age range5+
Number of users60
Free fall height1.98 m
Heaviest component175 kg
Total weight1285 kg
Assembly time8.00 hours
Installers3 persons
Foundations
Basic unit4 (1.30 m³ total quantity of concrete) optional anchor frame
Additional elements6 (1.10 m³ total quantity of concrete) + Anchor plate

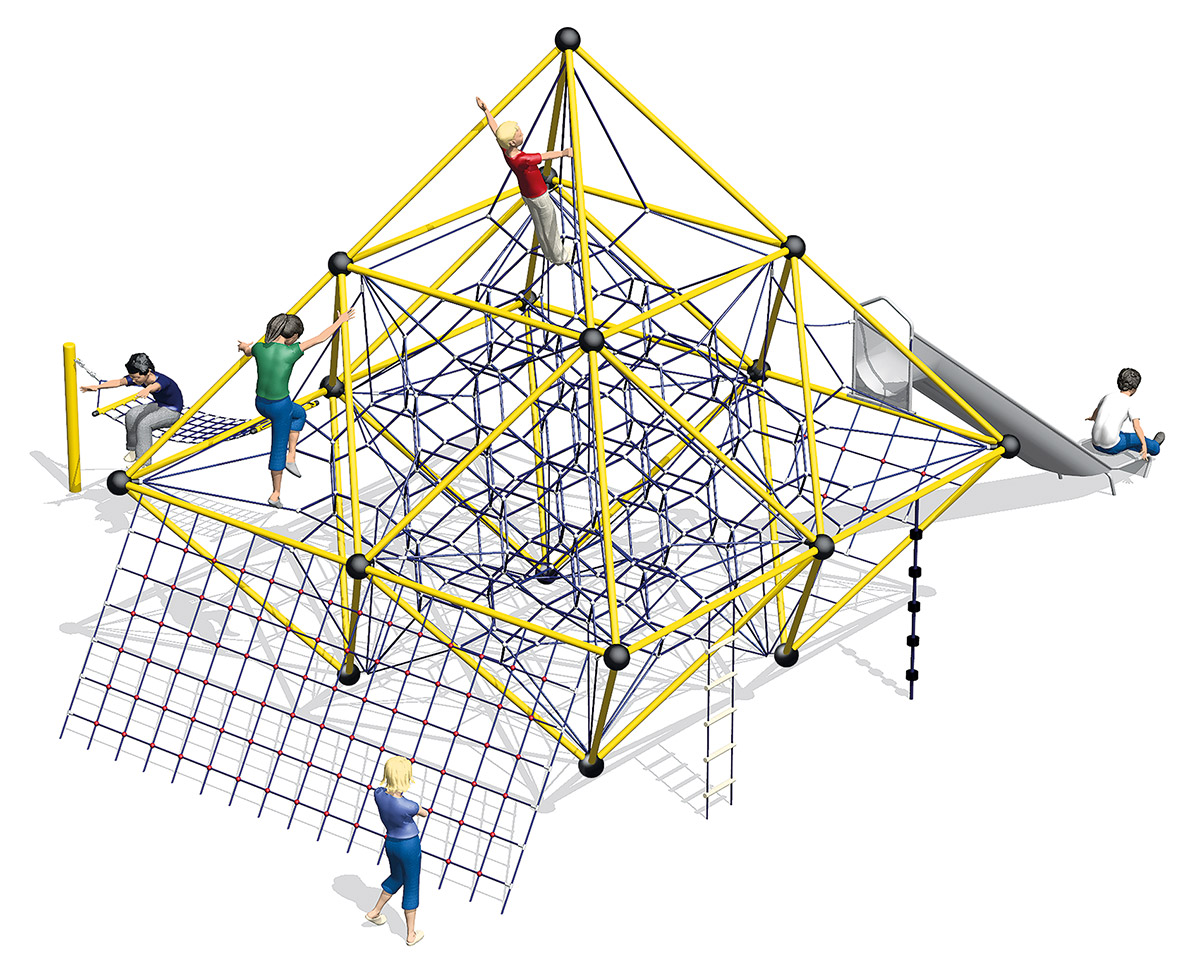

Mount Logan variant 5 consisting of the following individual components:

1 Basic unit
1 Climbing net full-side
1 Hammock swing
1 Climbing ladder, internal
1 Climbing rope, internal
1 Slide small, narrow, with anchor plate included

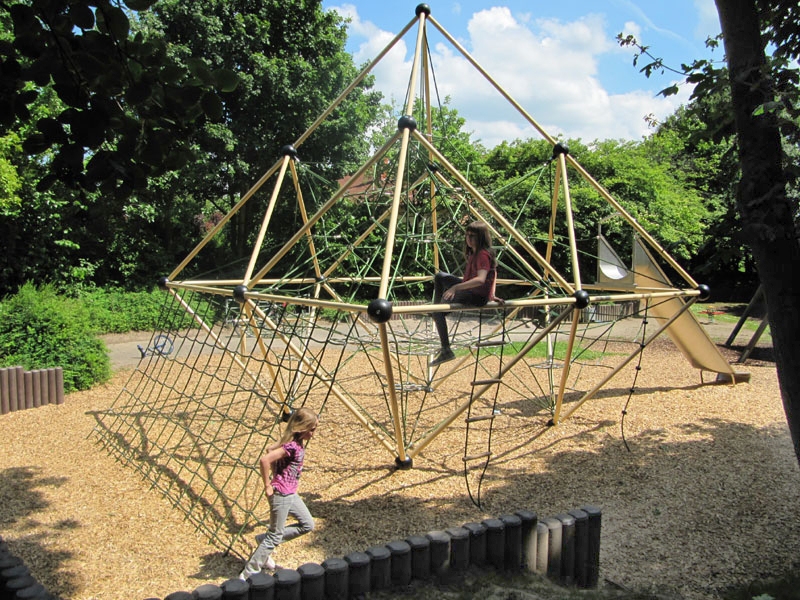

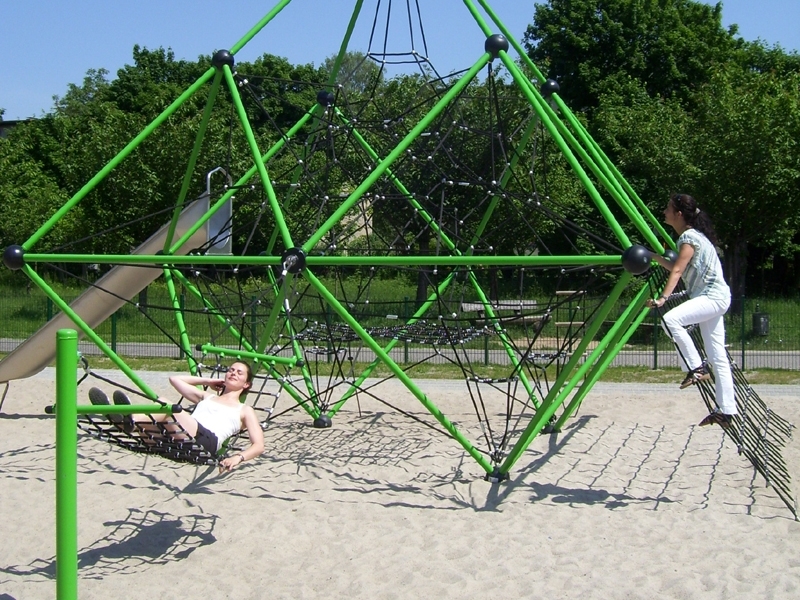

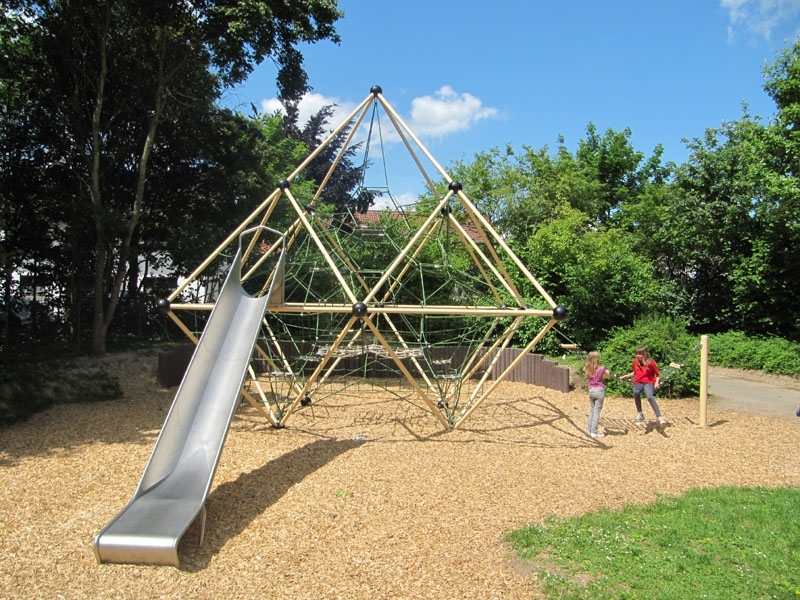

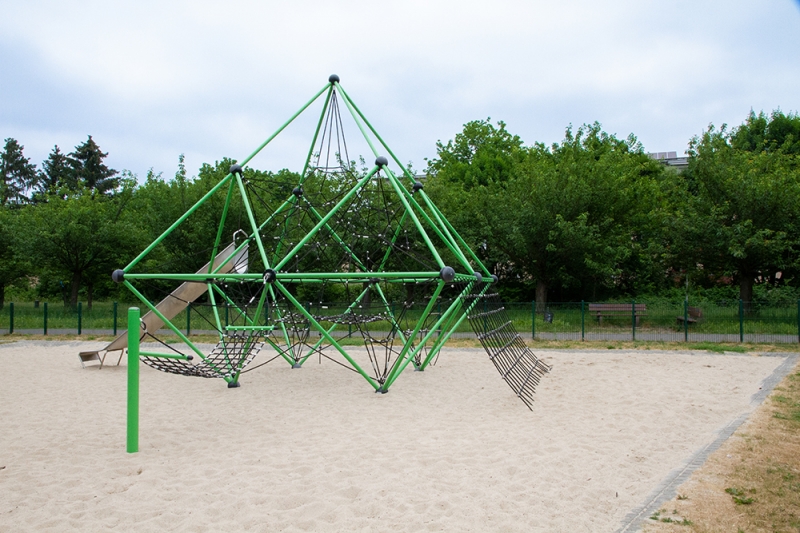

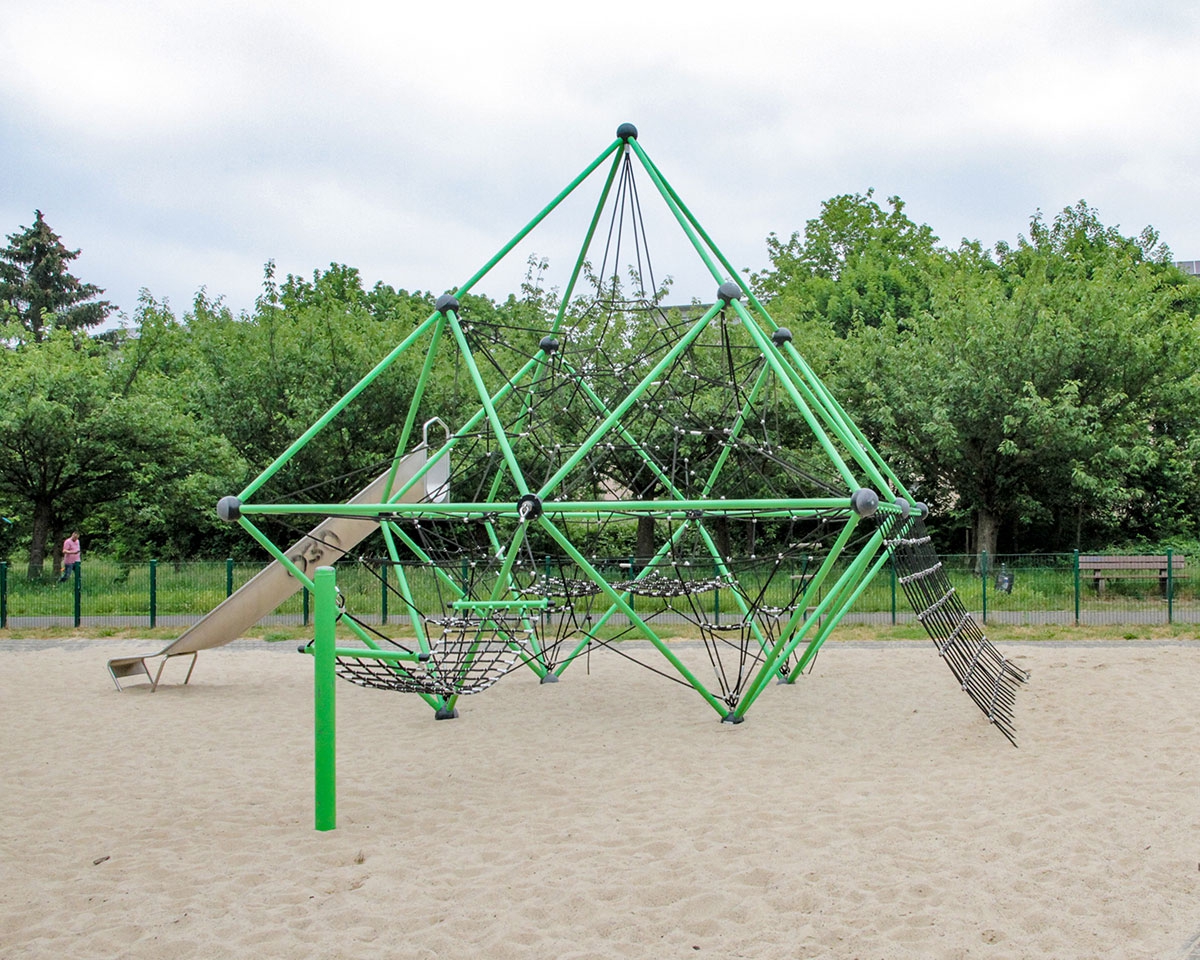

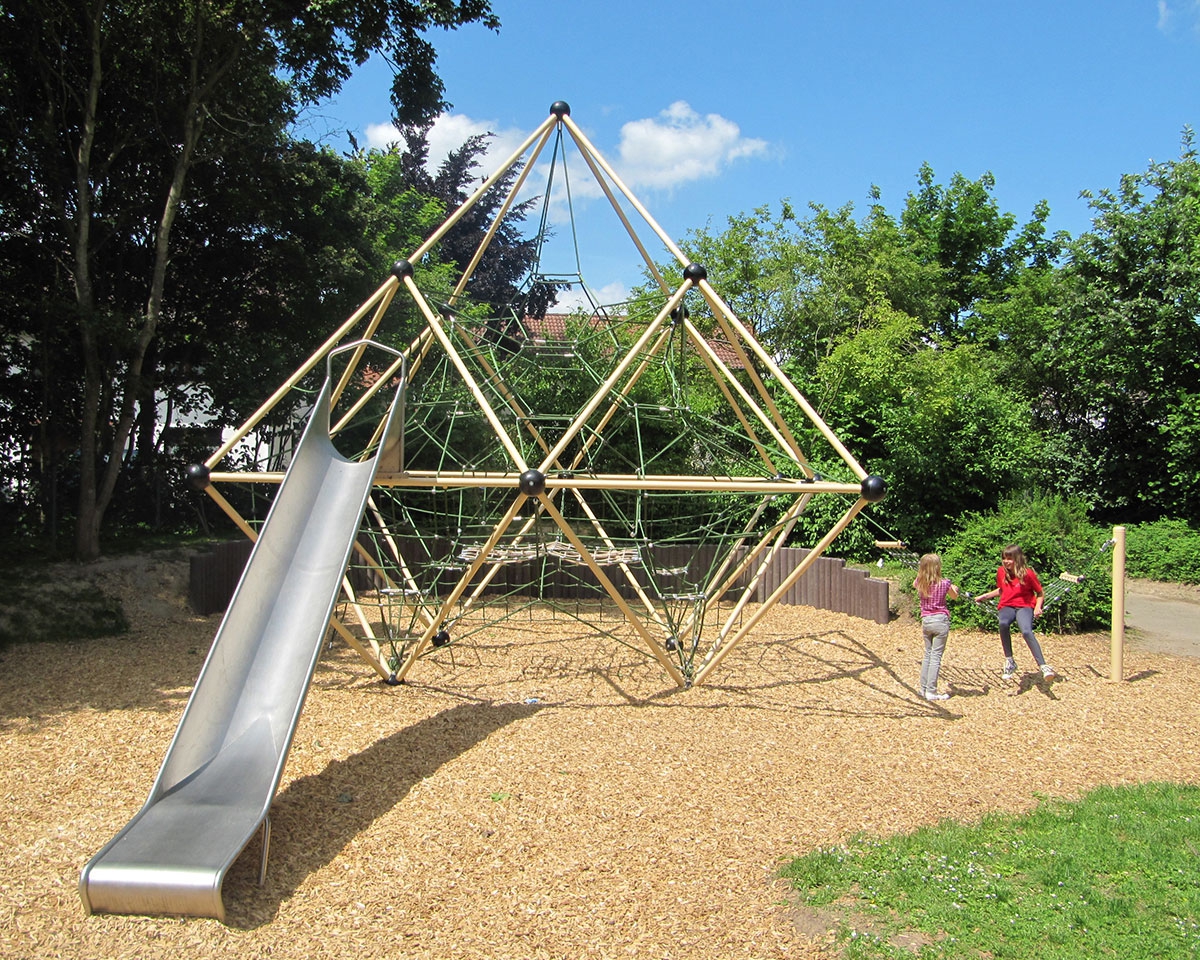

This variant of the Mount Logan makes children’s hearts beat faster.

The unit offers an impressive height of 5.50 m and a great play volume for up to 40 users.

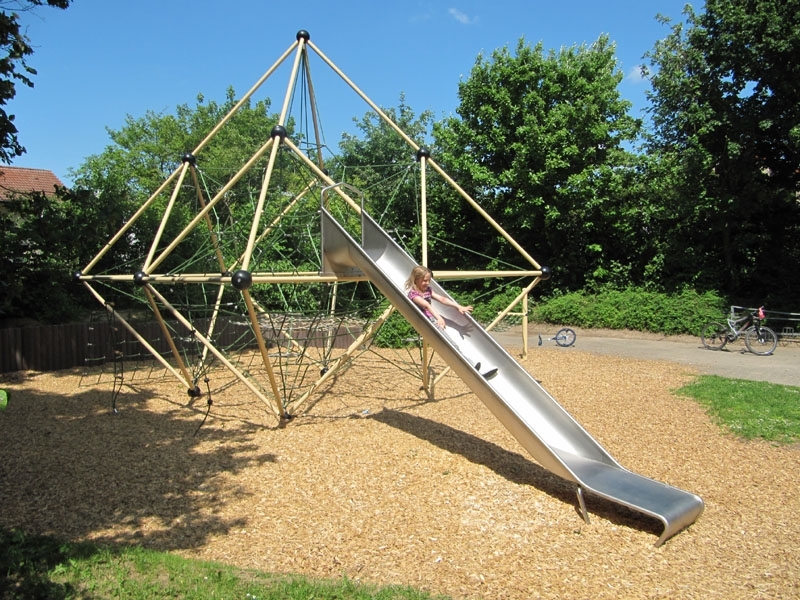

A stainless steel slide with a height of 1.80 m, a hammock swing with a length of 3.10 m, a full-sides climbing net with a length of approx. 5.00 m and a height of 1.80 m, a rope ladder with a height of 1.80 m and a climbing rope with a height of 1.80 m provide plenty of variety and challenges..

Our game experts, the children, will be able to confirm it!



anchor frameWith this unit is a fast and easy installation through the anchor frame possible.

More information about the anchor frame





Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Additional elements Mount Logan

  • Triangular netTriangular net


  • Climbing net half-sideClimbing net half-side


  • Climbing net full-sideClimbing net full-side


  • Trapezoid net half-sideTrapezoid net half-side


  • Trapezoid net full-sideTrapezoid net full-side


  • Rung bridgeRung bridge


  • Catwalk bridgeCatwalk bridge


  • Jungle bridgeJungle bridge


  • Wobbly bridgeWobbly bridge


  • Hand over hand ladderHand over hand ladder


  • Hammock swingHammock swing


  • Hand over hand loop ropeHand over hand loop rope


  • Climbing rope, externalClimbing rope, external


  • Climbing rope, internalClimbing rope, internal


  • Climbing ladder, internalClimbing ladder, internal


  • Balancing ropeBalancing rope


  • Slide small, narrowSlide small, narrow


  • Slide small, wideSlide small, wide


  • Slide large, curved, party tunneledSlide large, curved,
    party tunneled
    (Classic)
  • Slide large, partly tunneledSlide large,
    partly tunneled
    (Classic)
  • Anchor frame, hot-dip-galvanisedAnchor frame,
    hot-dip-galvanised


  • colorballscolorballs
