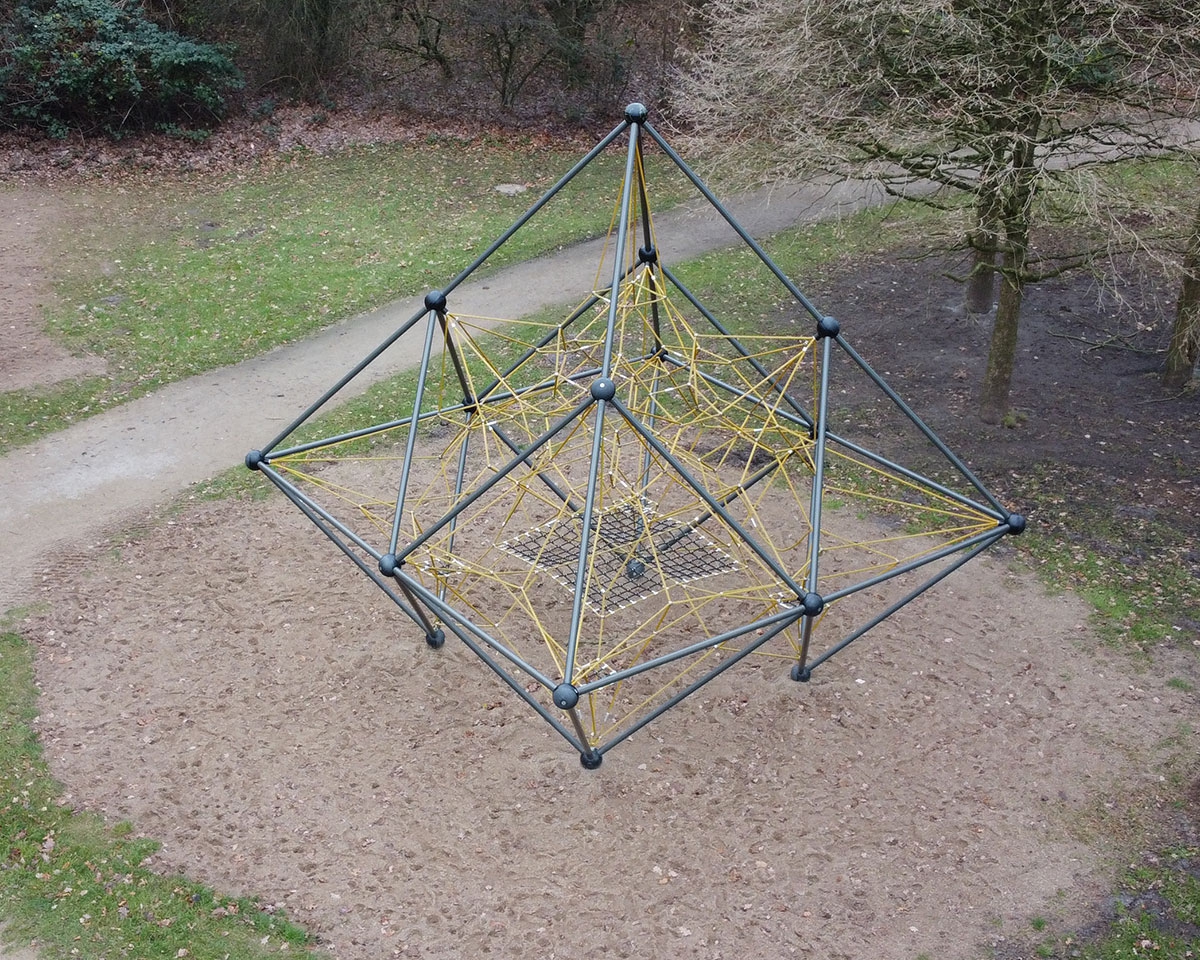

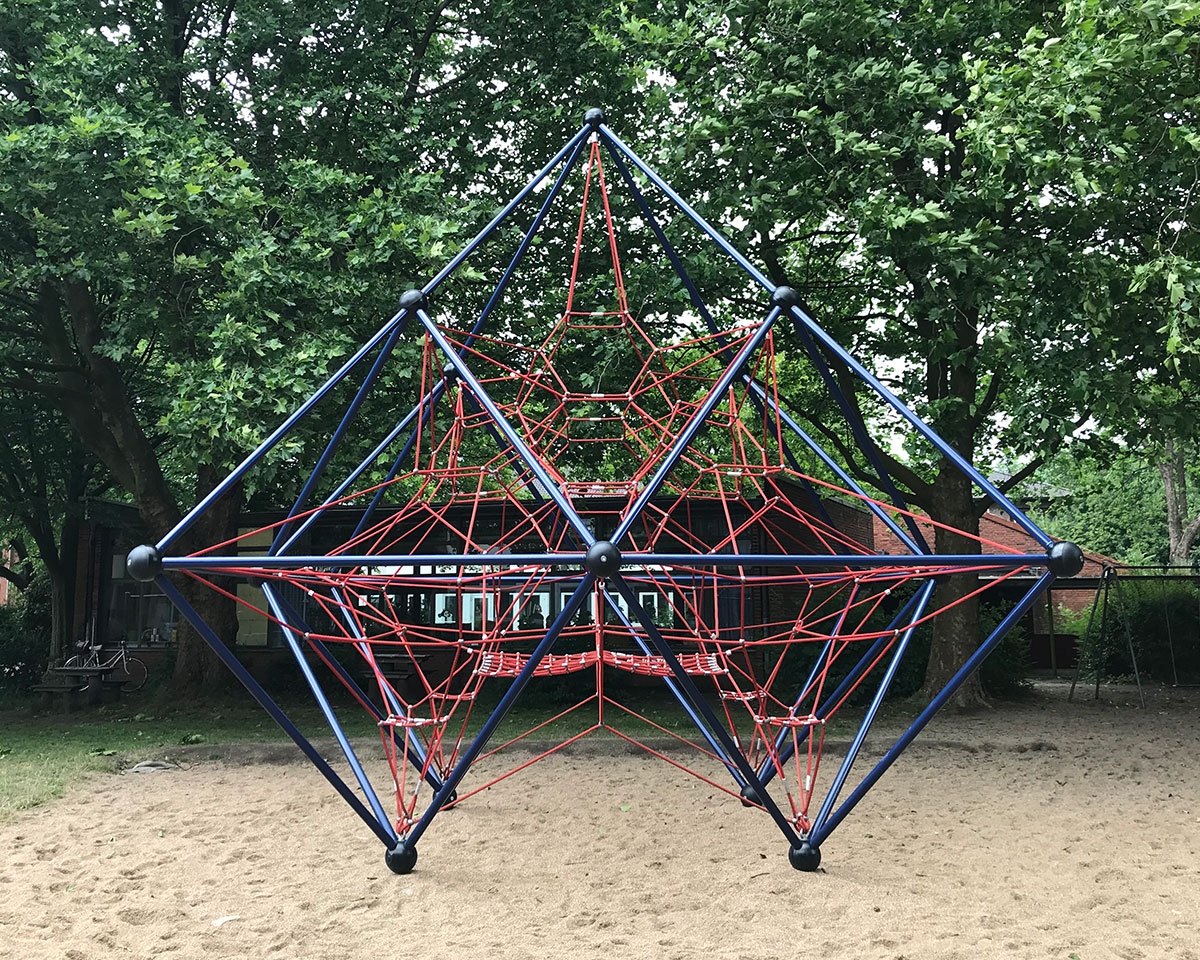

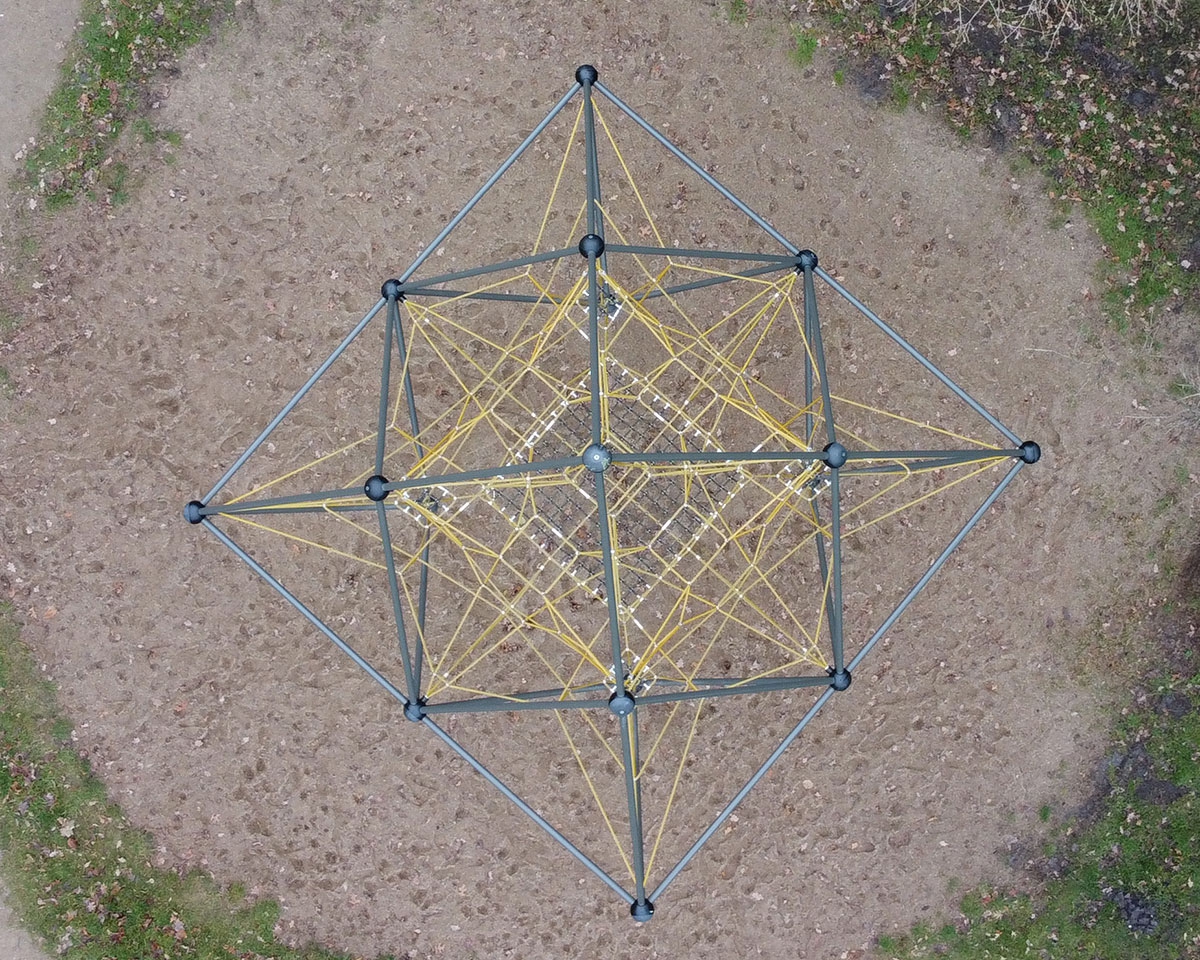

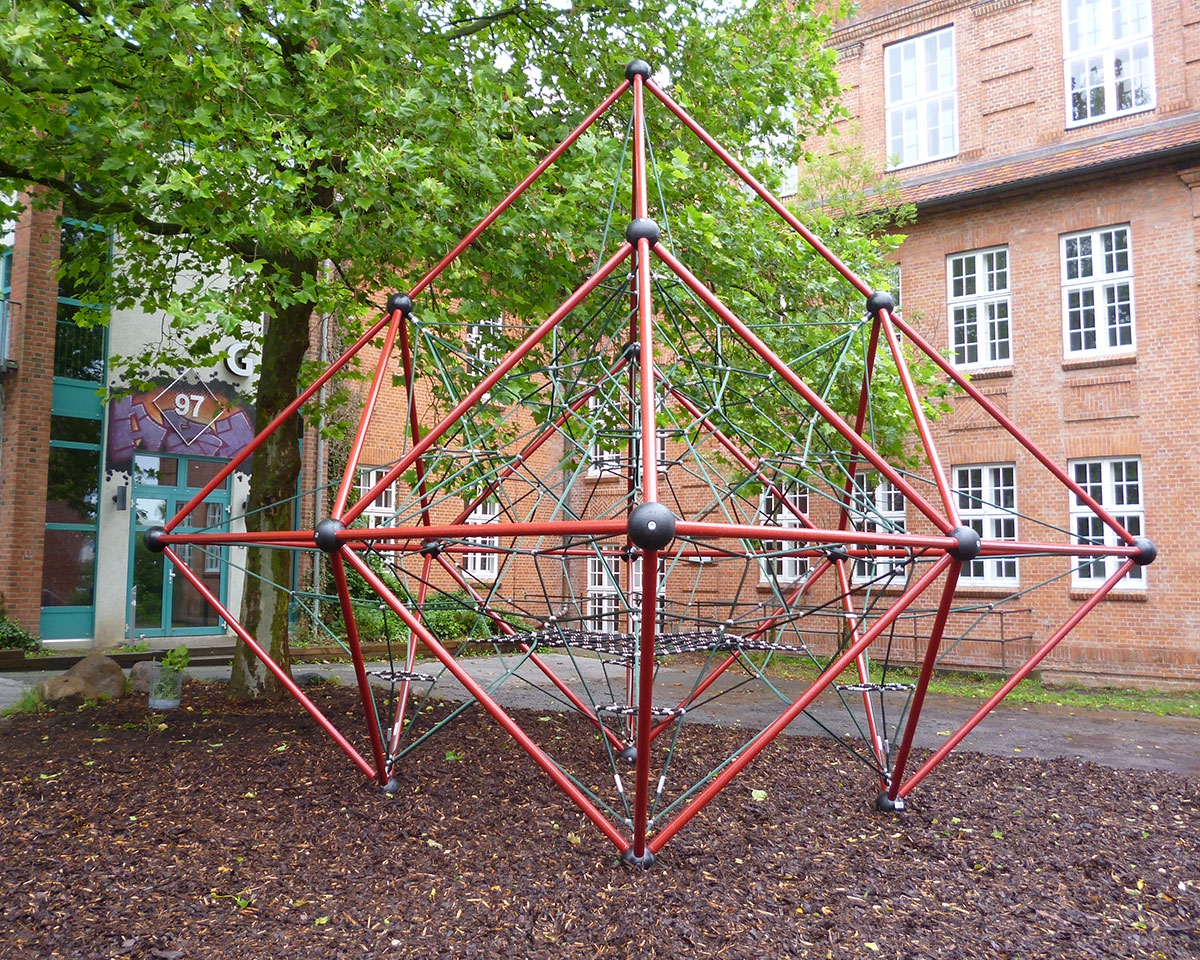

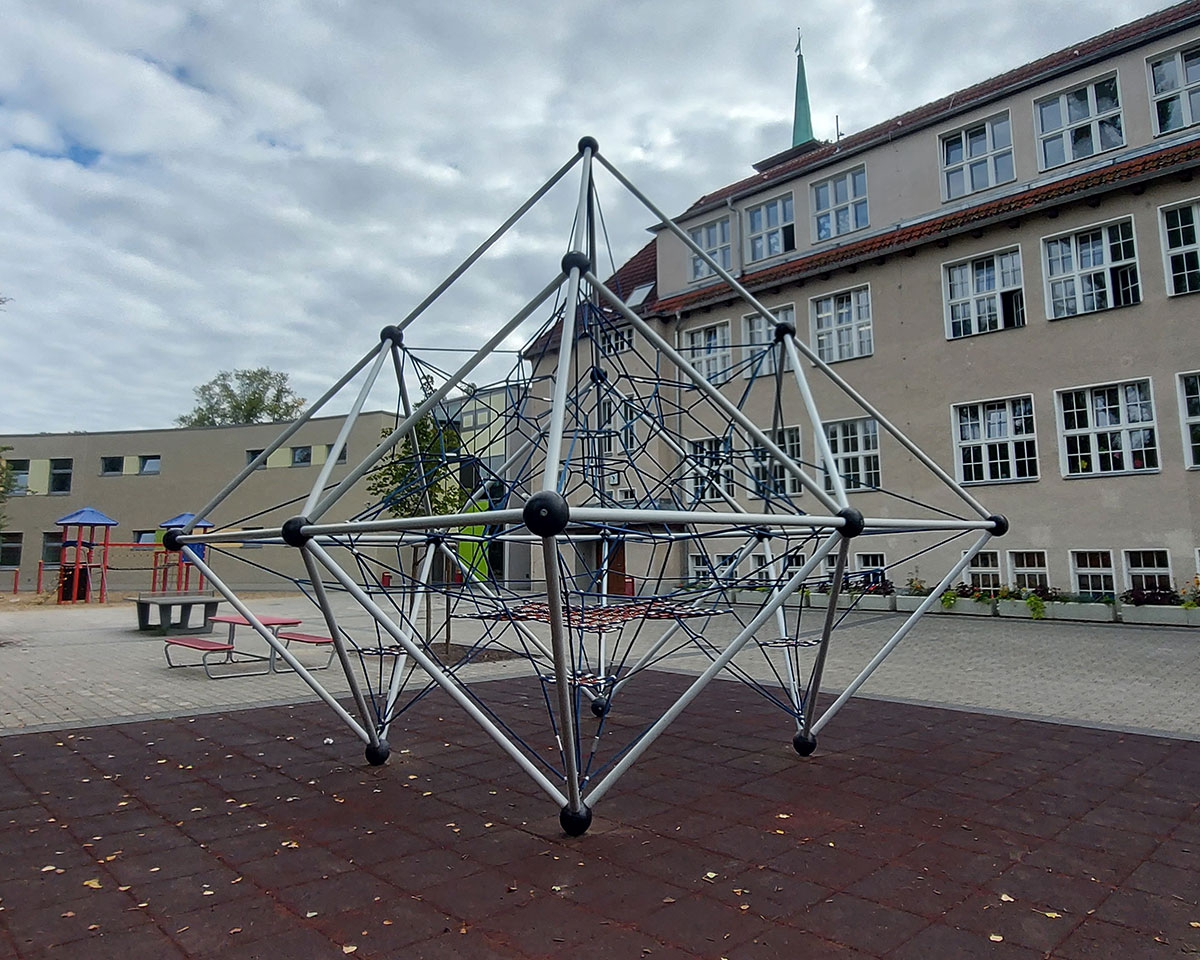

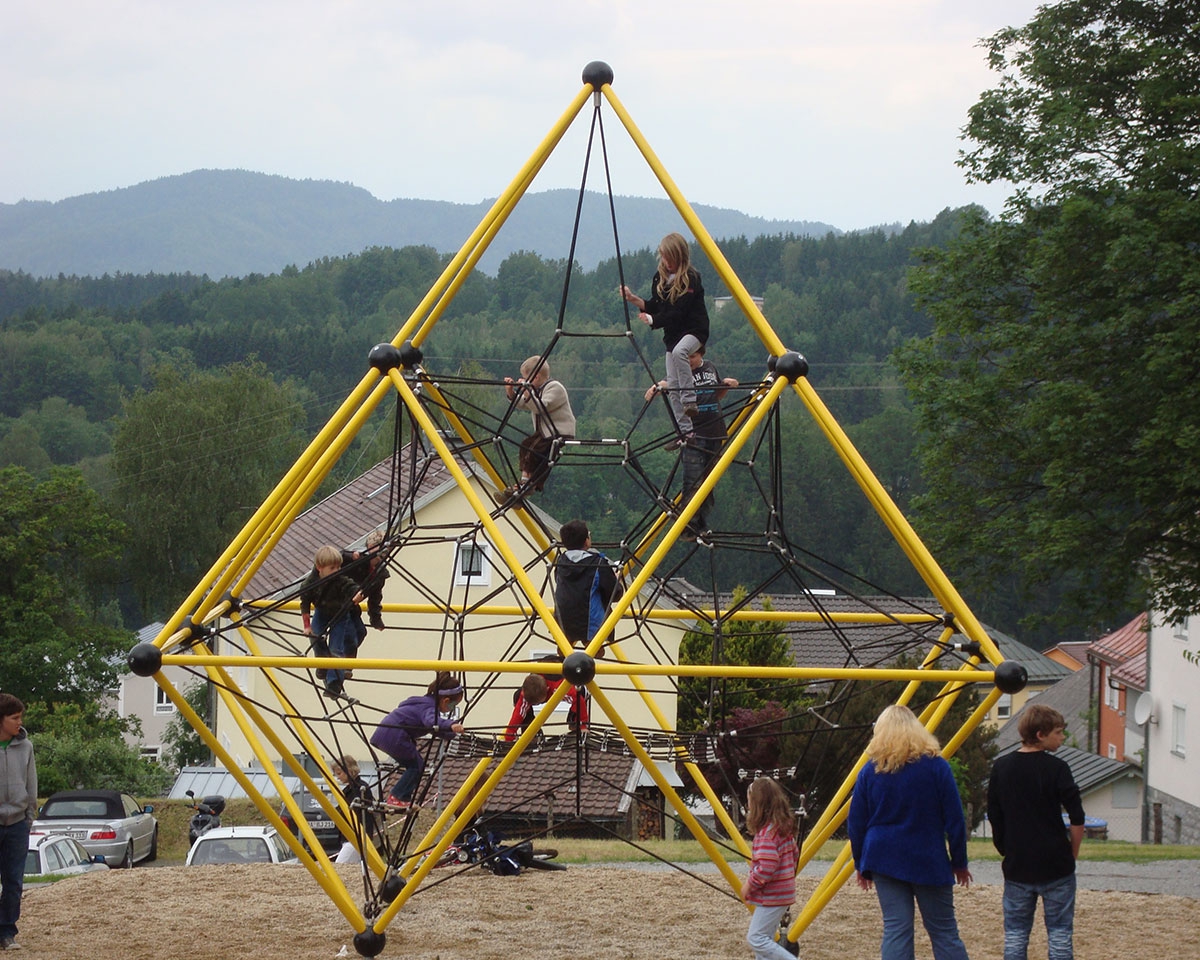

Mount Logan
No. 3153003, 3153303 (Triangulum)
| Unit space area | 5.20 x 5.20 m |
| Safety space area | 8.82 x 8.82 m |
| Height of unit | 5.49 m |
| Age range | 5+ |
| Number of users | 50 |
| Free fall height | 1.96 m |
| Heaviest component | 175 kg |
| Total weight | 853 kg |
| Assembly time | 5.00 hours |
| Installers | 3 persons |
| Foundations | |
| Basic unit | 4 (1.30 m³ total quantity of concrete) optional anchor frame |
Larger dimensions and a height of 5.50 m create a new and bigger play volume, which provides space for up to 50 users.
Through to a big variety of additional elements, this unit can fit into almost any place situation.
Let the Mount Logan variants 1 to 8 convince you of the variety of the device.
With this unit is a fast and easy installation through the anchor frame possible.
More information about the anchor frame
Popular colors for steel parts
Beige
RAL 1001
Colza yellow
RAL 1021
Pastel orange
RAL 2003
Flame red
RAL 3000
Cobalt blue
RAL 5013
Distant blue
RAL 5023
Leaf green
RAL 6002
Yellow green
RAL 6018
Anthracite grey
RAL 7016
Light grey
RAL 7035
Terra brown
RAL 8028
Jet black
RAL 9005
White aluminium
RAL9006
Pure white
RAL 9010
Information: A large number of further colors of the RAL-system or other color systems are possible.
Selectable colors for ropes
Classic red
Missouri green
Royal blue
Cosmos black
Silver grey
Nature
Autumn yellow
Additional elements Mount Logan
Triangular net
Climbing net half-side
Climbing net full-side
Trapezoid net half-side
Trapezoid net full-side
Rung bridge
Catwalk bridge
Jungle bridge
Wobbly bridge
Hand over hand ladder
Hammock swing
Hand over hand loop rope
Climbing rope, external
Climbing rope, internal
Climbing ladder, internal
Balancing rope
Slide small, narrow
Slide small, wide
Slide large, curved,
party tunneled
(Classic)
Slide large,
partly tunneled
(Classic)
Anchor frame,
hot-dip-galvanised
colorballs
