Monte Bianco variant 3

No. 3142027

Unit space area5.90 x 7.80 m
Safety space area9.50 x 10.70 m
Height of unit4.43 m
Age range4+
Number of users38
Free fall height2.72 m
Heaviest component220 kg
Total weight1065 kg
Assembly time6.00 hours
Installers4 persons
Foundations
Basic unit4 (1.30 m³ total quantity of concrete) optional anchor frame
Additional elements2 (0.50 m³ total quantity of concrete)

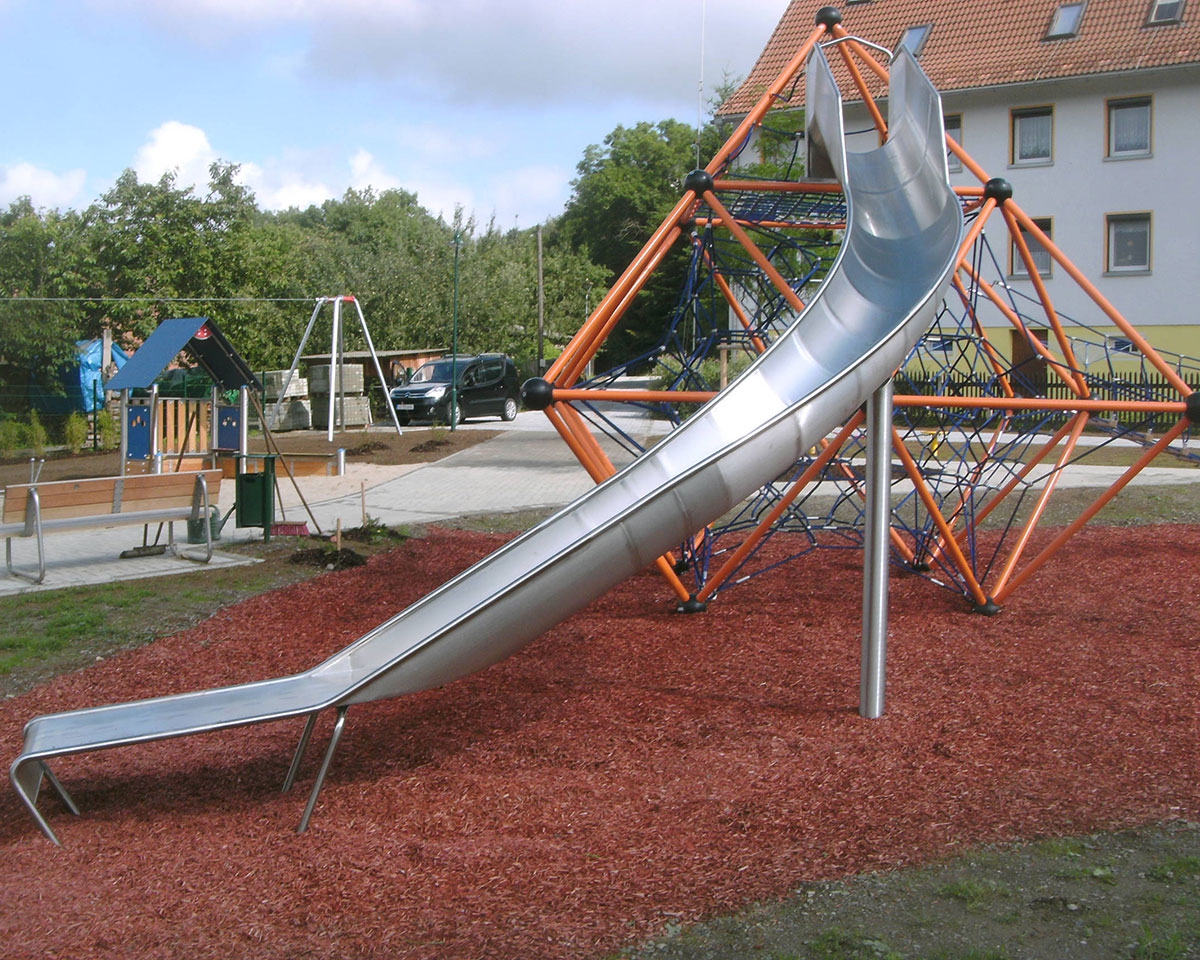

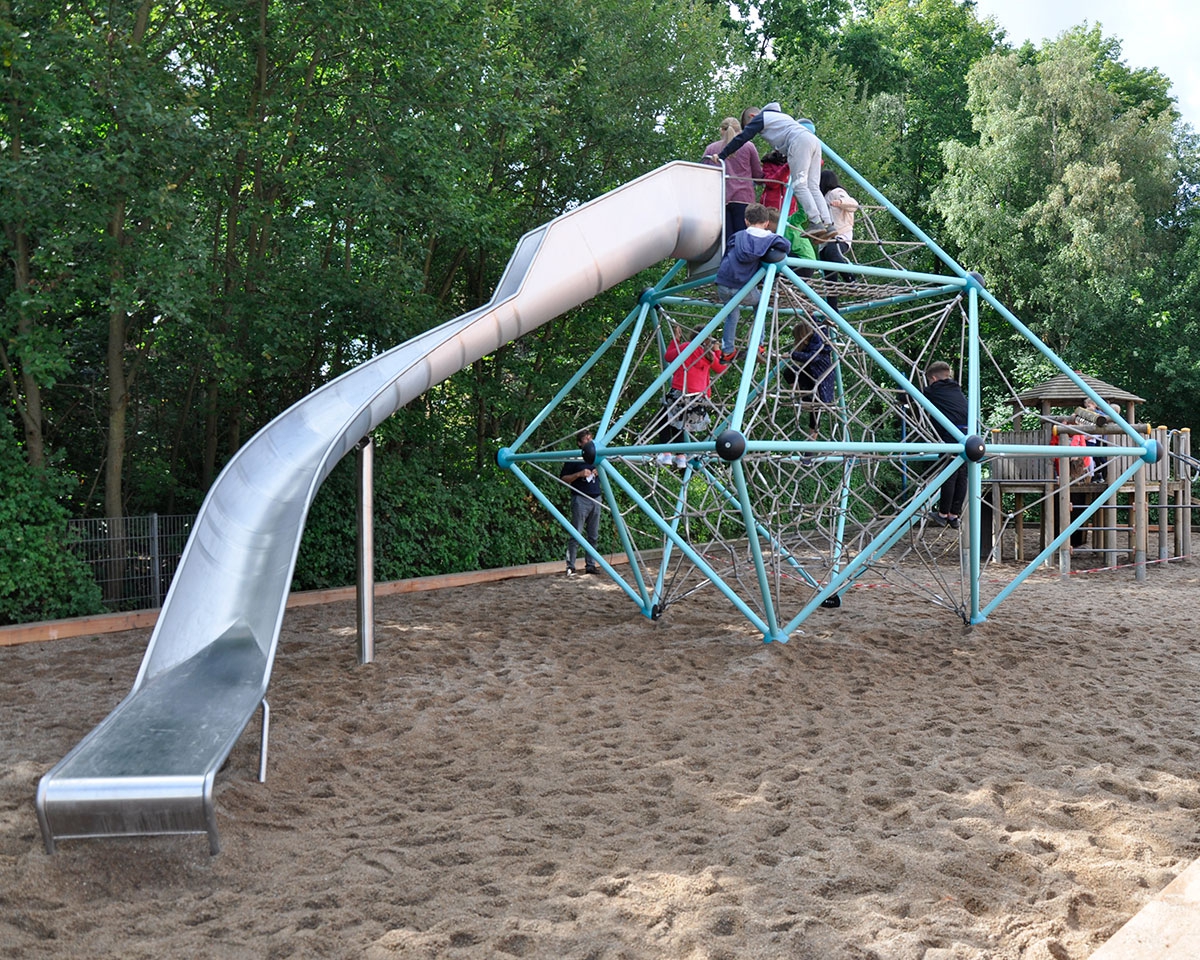

Monte Bianco variant 3 consisting of the following individual components:

1 Basic unit
1 Slide, large, left or right curve (with extended side walls)

A 2.90 m high slide provides the kick, when you slide down the 72° coiled slide.

A horizontal climbing net at the top of the unit allows easy access to the slide.
Through an opening in the surface net or via the outer spacenet you can get to the very top.

Safety nets and ropes at the top of the slide and underneath the slide ensure the necessary safety.

Well then, climb up and start sliding!



anchor frameWith this unit is a fast and easy installation through the anchor frame possible.

More information about the anchor frame





Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Additional elements Monte Bianco

  • Triangular netTriangular net


  • Climbing net half-sideClimbing net half-side


  • Climbing net full-sideClimbing net full-side


  • Trapezoid net half-sideTrapezoid net half-side


  • Trapezoid net full-sideTrapezoid net full-side


  • Rung bridgeRung bridge


  • Catwalk bridgeCatwalk bridge


  • Jungle bridgeJungle bridge


  • Wobbly bridgeWobbly bridge


  • Hand over hand ladderHand over hand ladder


  • Hammock swingHammock swing


  • Hand over hand loop ropeHand over hand loop rope


  • Climbing rope, externalClimbing rope, external


  • Climbing rope, internalClimbing rope, internal


  • Climbing ladder, internalClimbing ladder, internal


  • Balancing ropeBalancing rope


  • Slide small, narrowSlide small, narrow


  • Slide small, wideSlide small, wide


  • Slide large, curvedSlide large, curved
    (Classic)
  • Slide large, straightSlide large, straight
    (Classic)
  • Anchor frame, hot-dip-galvanisedAnchor frame,
    hot-dip-galvanised


  • colorballscolorballs
