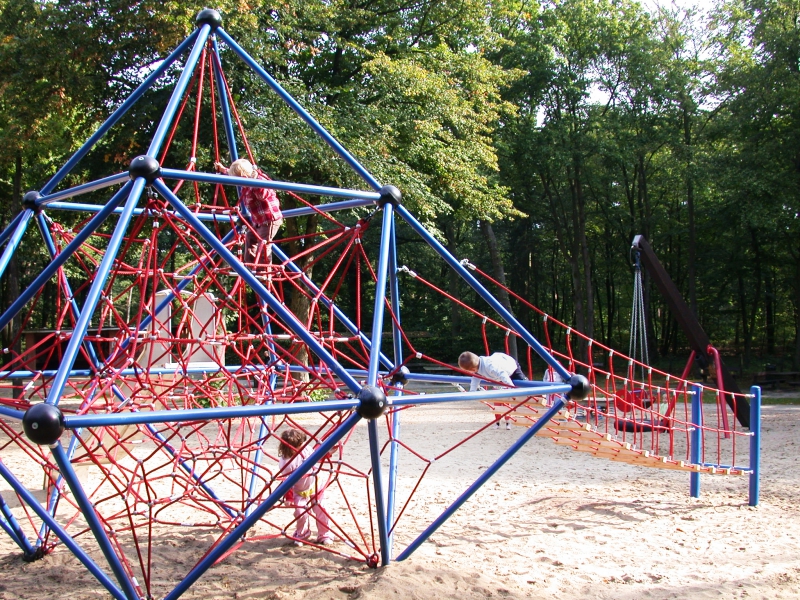

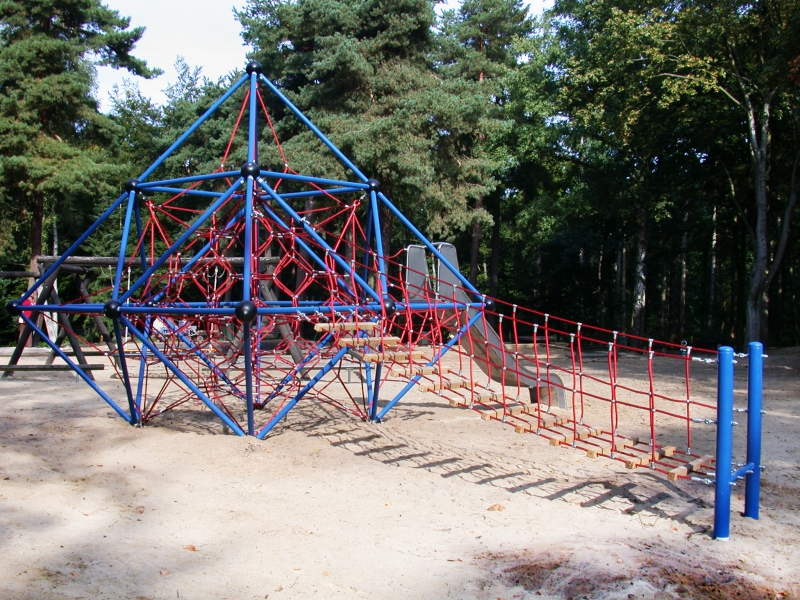

Monte Bianco variant 4

No. 3142016, 3142316 (Triangulum)

Unit space area7.21 x 8.15 m
Safety space area10.78 x 11.23 m
Height of unit4.43 m
Age range4+
Number of users40
Free fall height1.63 m
Heaviest component130 kg
Total weight975 kg
Assembly time7.00 hours
Installers3 persons
Foundations
Basic unit4 (1.30 m³ total quantity of concrete)
Additional elements1 (0.90 m³ total quantity of concrete) + Anchor plate

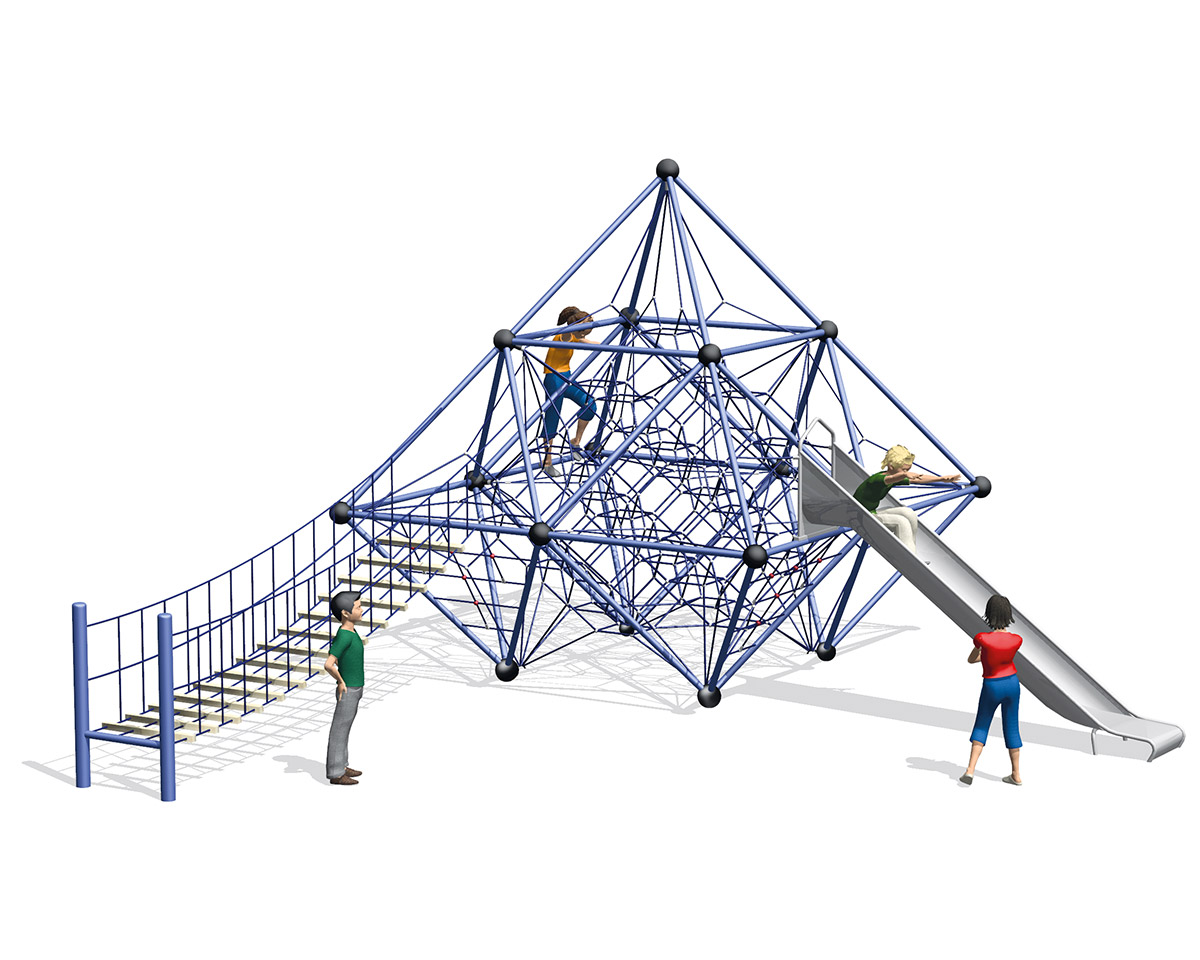

Monte Bianco variant 4 consisting of the following individual components:

1 Basic unit
1 Rung bridge (4.00 m)
1 Slide small, narrow, with anchor plate included

Varied playing is a duty with Monte Bianco variant 4.

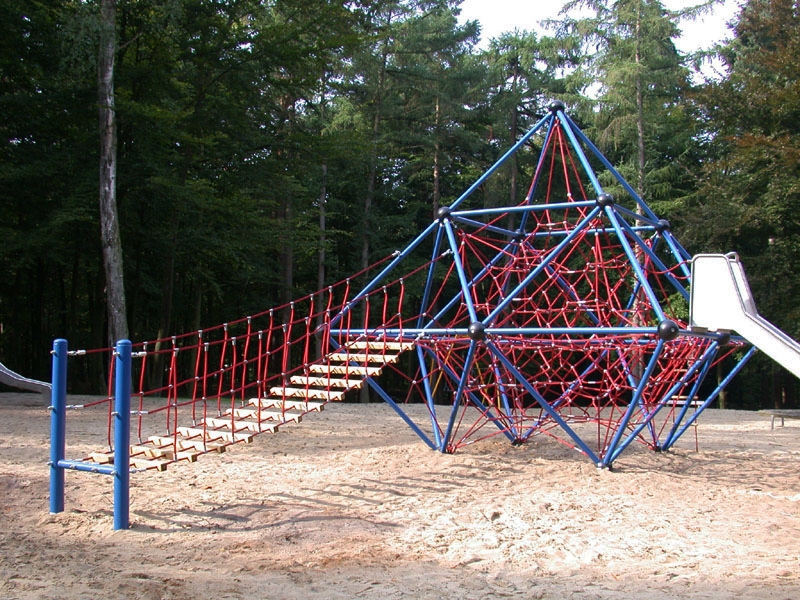

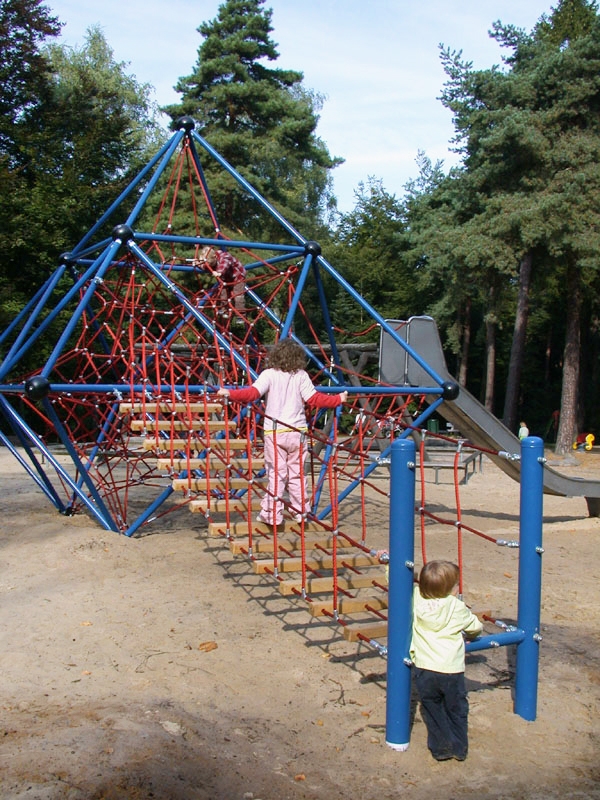

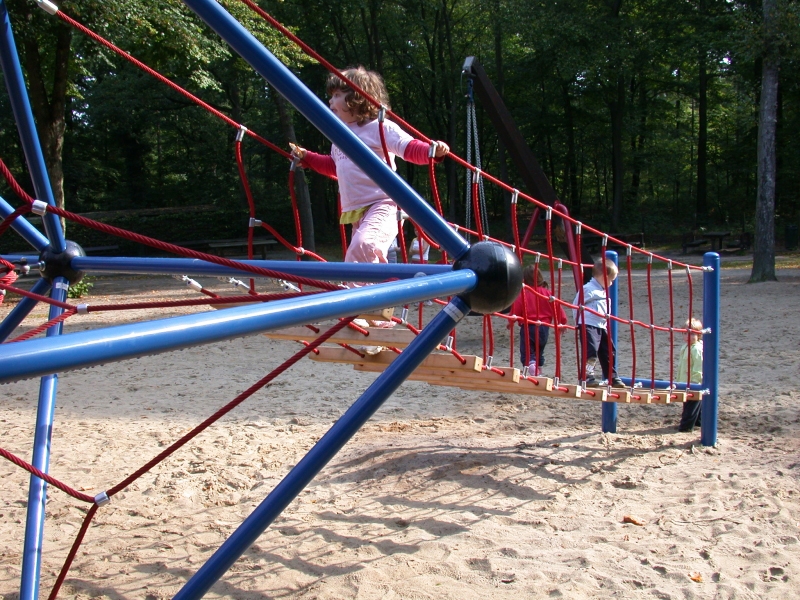

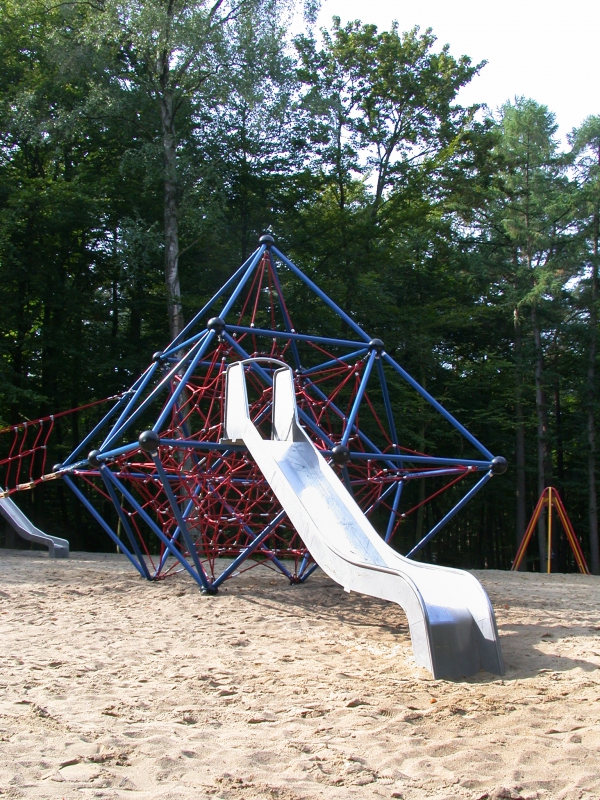

Slide down the high slide and climb up via the 4.00 m catwalk bridge.

Below the additional elements are climbing nets, those ensure the appropriate security.



Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Additional elements Monte Bianco

  • Triangular netTriangular net


  • Climbing net half-sideClimbing net half-side


  • Climbing net full-sideClimbing net full-side


  • Trapezoid net half-sideTrapezoid net half-side


  • Trapezoid net full-sideTrapezoid net full-side


  • Rung bridgeRung bridge


  • Catwalk bridgeCatwalk bridge


  • Jungle bridgeJungle bridge


  • Wobbly bridgeWobbly bridge


  • Hand over hand ladderHand over hand ladder


  • Hammock swingHammock swing


  • Hand over hand loop ropeHand over hand loop rope


  • Climbing rope, externalClimbing rope, external


  • Climbing rope, internalClimbing rope, internal


  • Climbing ladder, internalClimbing ladder, internal


  • Balancing ropeBalancing rope


  • Slide small, narrowSlide small, narrow


  • Slide small, wideSlide small, wide


  • Slide large, curvedSlide large, curved
    (Classic)
  • Slide large, straightSlide large, straight
    (Classic)
  • Anchor frame, hot-dip-galvanisedAnchor frame,
    hot-dip-galvanised


  • colorballscolorballs
