Monte Bianco variant 2
No. 3142038, 3142338 (Triangulum)
| Unit space area | 7.21 x 4.20 m |
| Safety space area | 10.78 x 7.35 m |
| Height of unit | 4.43 m |
| Age range | 4+ |
| Number of users | 35 |
| Free fall height | 1.63 m |
| Heaviest component | 130 kg |
| Total weight | 940 kg |
| Assembly time | 6.00 hours |
| Installers | 3 persons |
| Foundations | |
| Basic unit | 4 (1.30 m³ total quantity of concrete) optional anchor frame |
| Additional elements | Anchor plate |

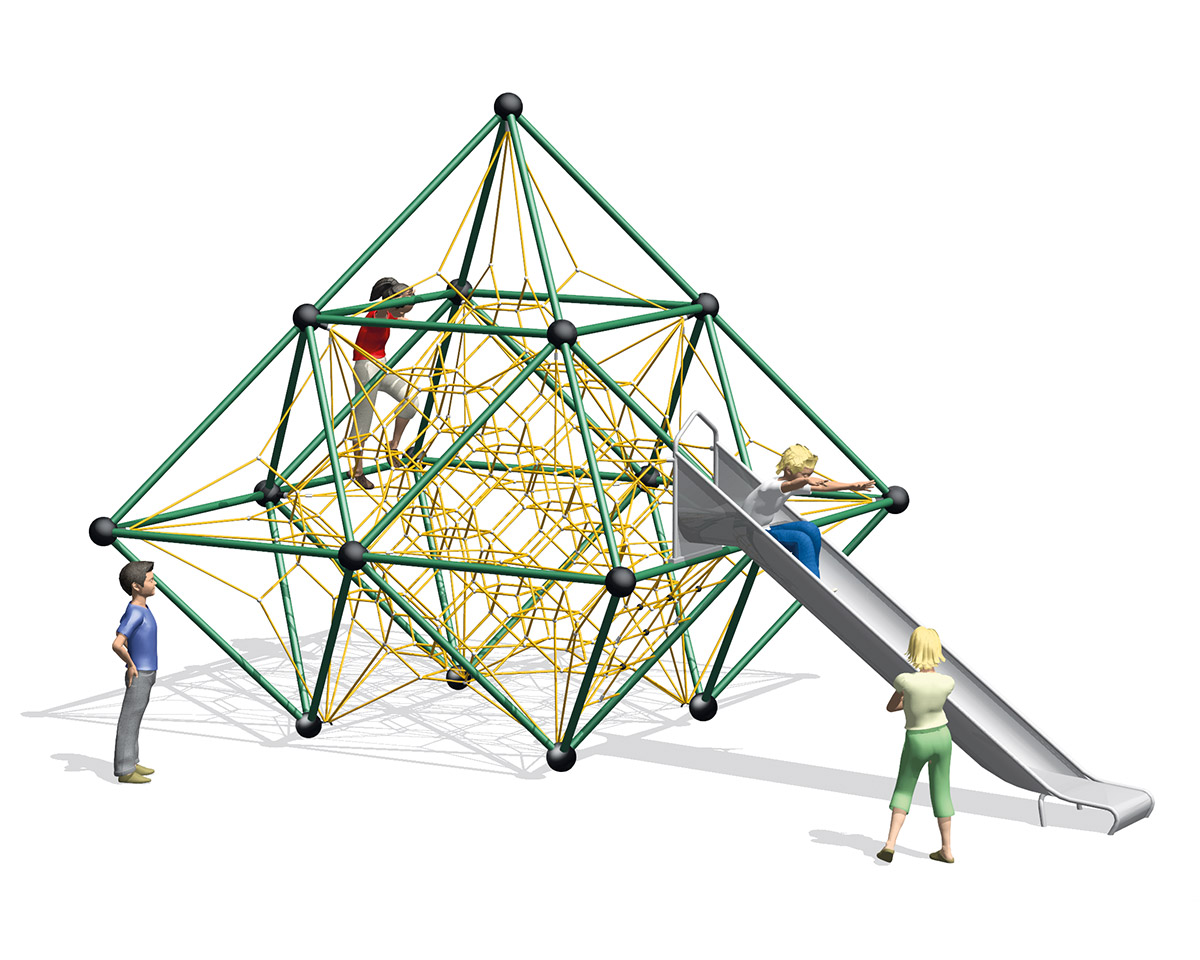

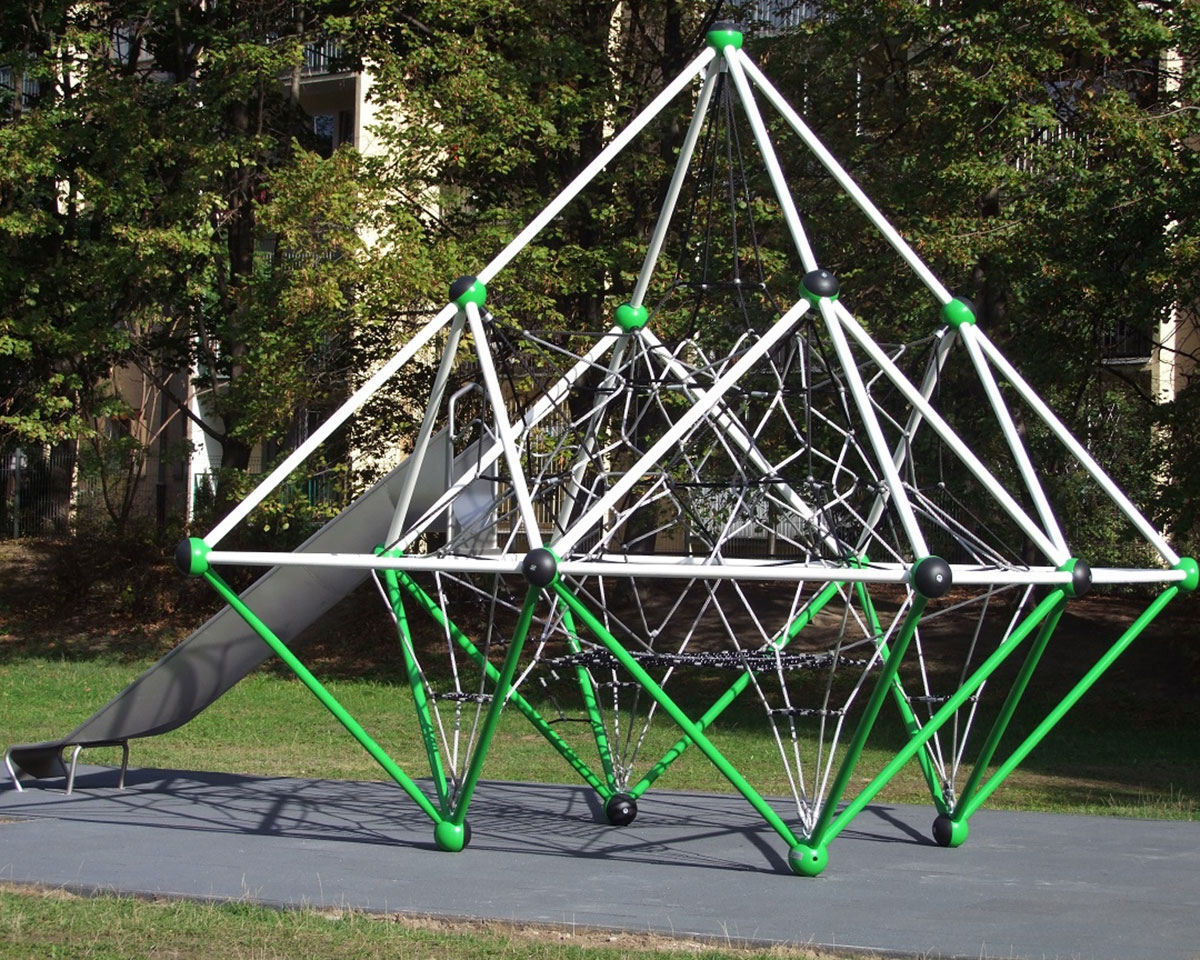

Monte Bianco variant 2 consisting of the following individual components:
1 Basic unit
1 Slide small, narrow, with anchor plate included

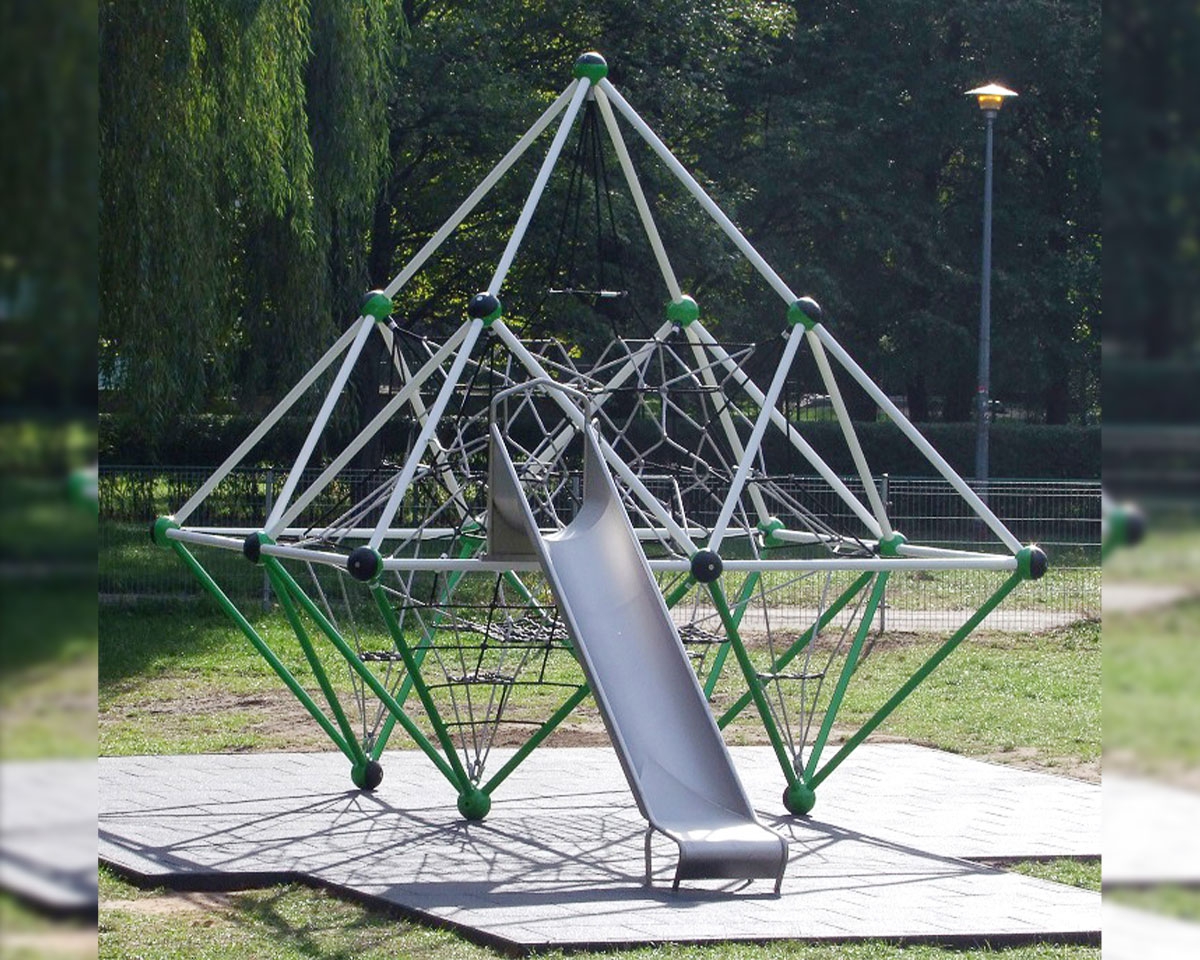

Here we attached to the basic unit a 1.50 m high slide.
The net under the slide allows even the smaller children to climb up the slide easily.
Those who love a challenge climb into the slide via the spacenet.
With this unit is a fast and easy installation through the anchor frame possible.
More information about the anchor frame
Popular colors for steel parts
Beige
RAL 1001
Colza yellow
RAL 1021
Pastel orange
RAL 2003
Flame red
RAL 3000
Cobalt blue
RAL 5013
Distant blue
RAL 5023
Leaf green
RAL 6002
Yellow green
RAL 6018
Anthracite grey
RAL 7016
Light grey
RAL 7035
Terra brown
RAL 8028
Jet black
RAL 9005
White aluminium
RAL9006
Pure white
RAL 9010
Information: A large number of further colors of the RAL-system or other color systems are possible.
Selectable colors for ropes
Classic red
Missouri green
Royal blue
Cosmos black
Silver grey
Nature
Autumn yellow
Additional elements Monte Bianco
Triangular net
Climbing net half-side
Climbing net full-side
Trapezoid net half-side
Trapezoid net full-side
Rung bridge
Catwalk bridge
Jungle bridge
Wobbly bridge
Hand over hand ladder
Hammock swing
Hand over hand loop rope
Climbing rope, external
Climbing rope, internal
Climbing ladder, internal
Balancing rope
Slide small, narrow
Slide small, wide
Slide large, curved
(Classic)
Slide large, straight
(Classic)
Anchor frame,
hot-dip-galvanised
colorballs
