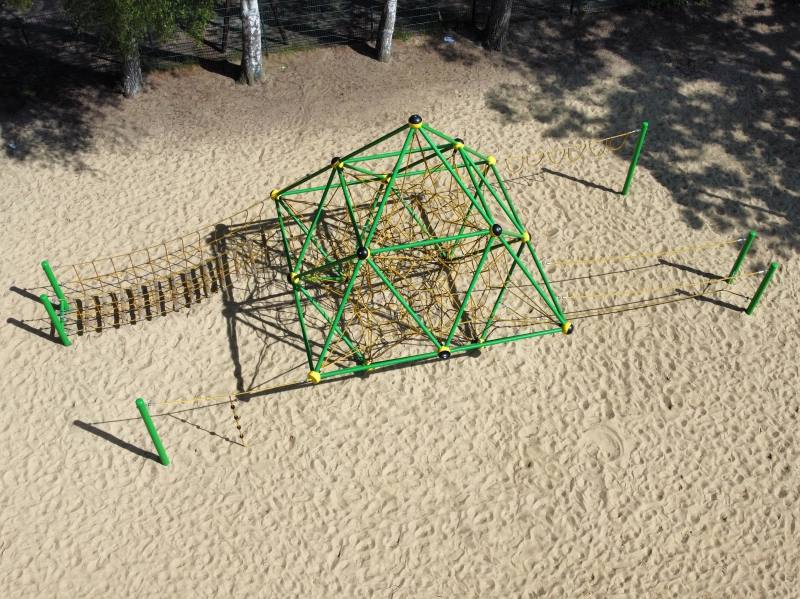

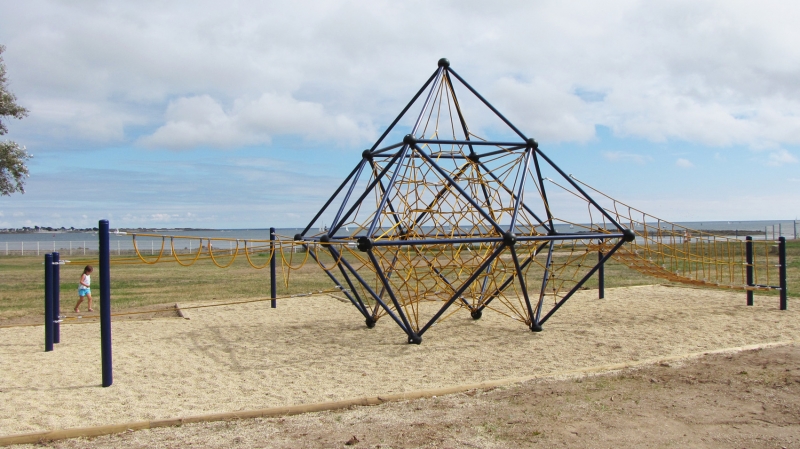

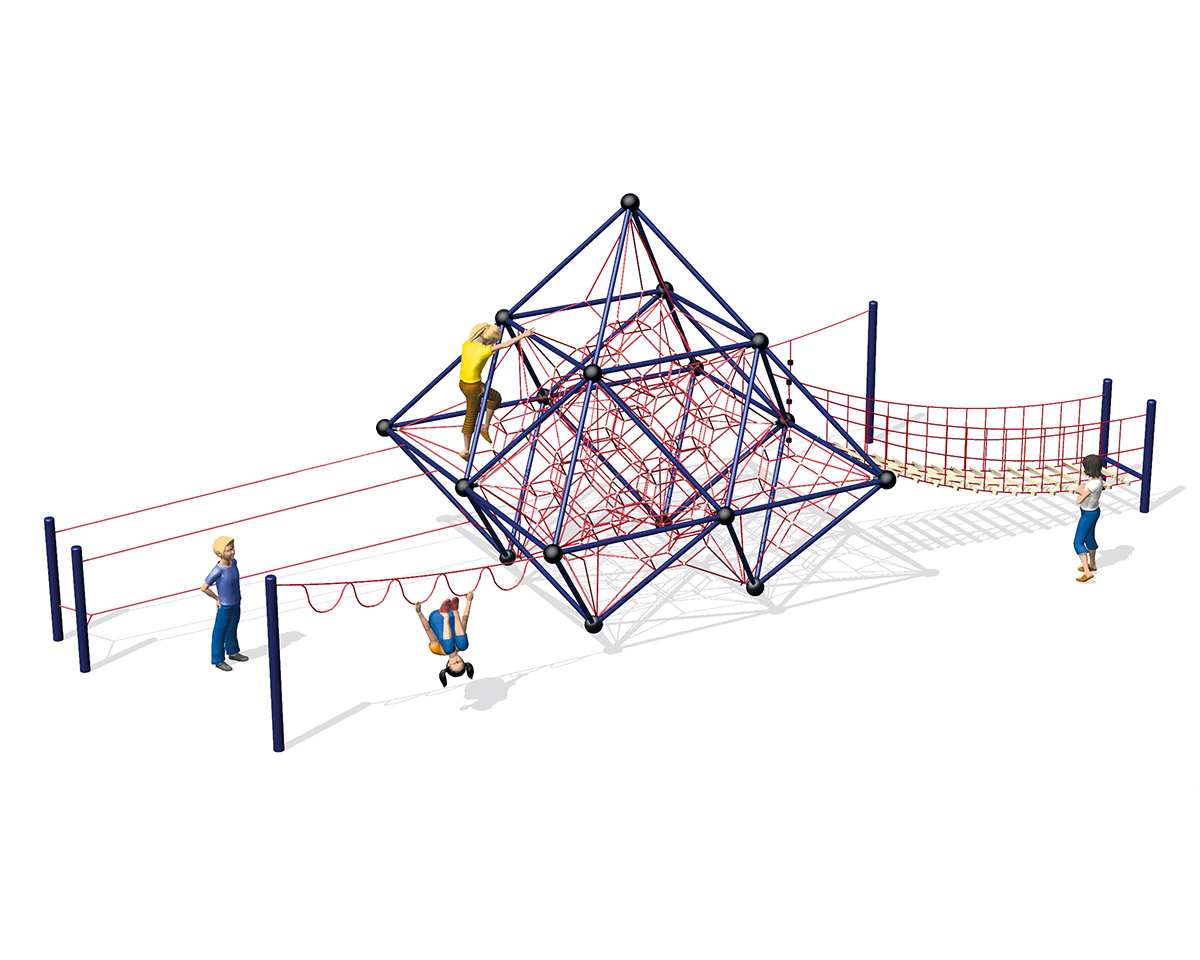

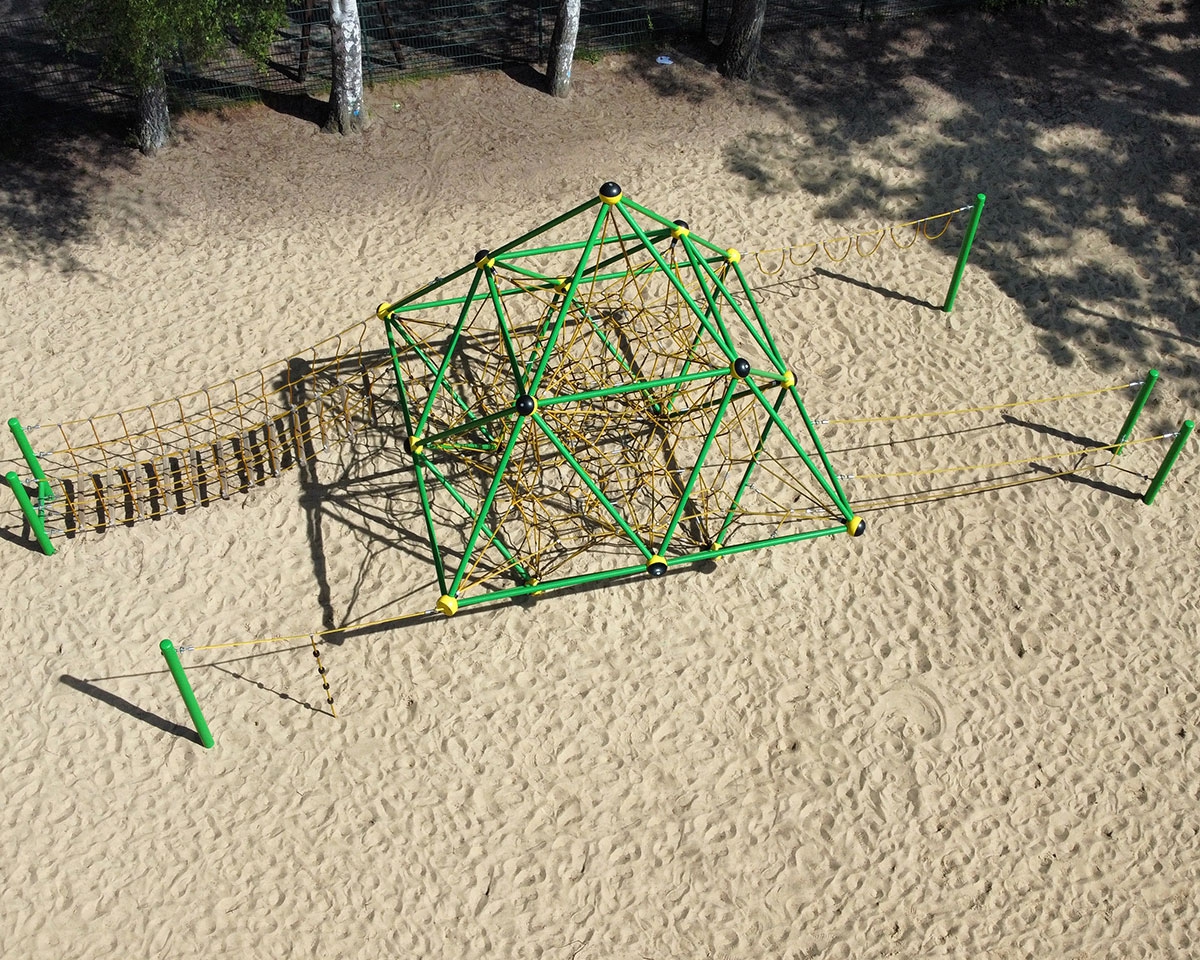

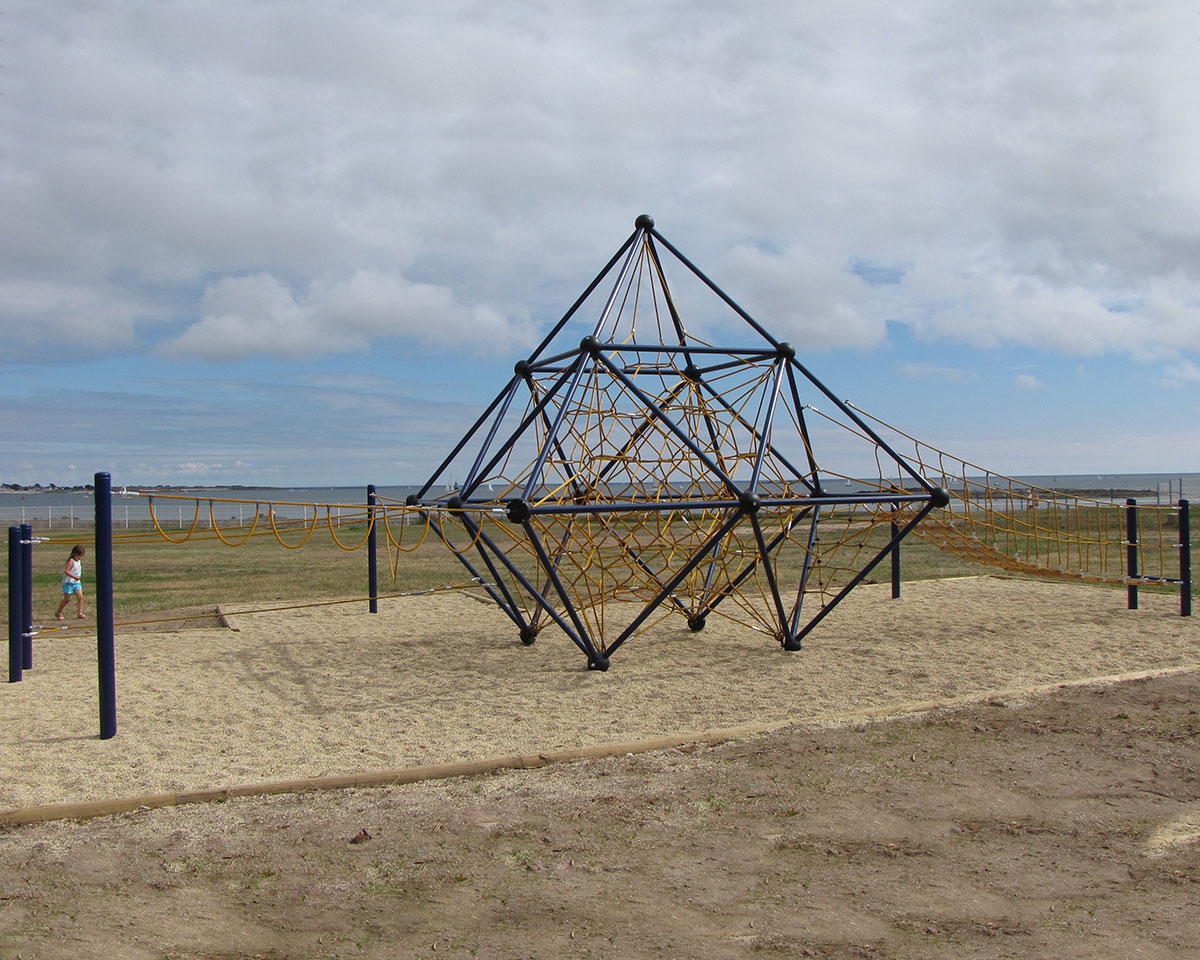

Monte Bianco variant 1
No. 3142014, 3142314 (Triangulum)
| Unit space area | 12.11 x 4.21 m |
| Safety space area | 15.11 x 7.39 m |
| Height of unit | 4.43 m |
| Age range | 4+ |
| Number of users | 44 |
| Free fall height | 1.70 m |
| Heaviest component | 130 kg |
| Total weight | 1244 kg |
| Assembly time | 8.00 hours |
| Installers | 3 persons |
| Foundations | |
| Basic unit | 4 (1.30 m³ total quantity of concrete) |
Monte Bianco variant 1 consisting of the following individual components:
1 Basic unit
1 Balancing rope (4.00 m)
1 Hand over hand loop rope (3.00 m)
1 Climbing rope, external
1 Rung bridge (4.00 m)
The basic unit Monte Bianco is added a variety of additional elements and thus becomes the Monte Bianco variant 1.
A balancing rope, a hand over hand loop rope, a climbing rope and a rung bridge bring variety and movement possibilities in many variations into play.
Features Download area
Selectable standard colors for steel parts:
Information: A large number of further colors of the RAL-system or other color systems are possible.
Selectable colors for ropes:
