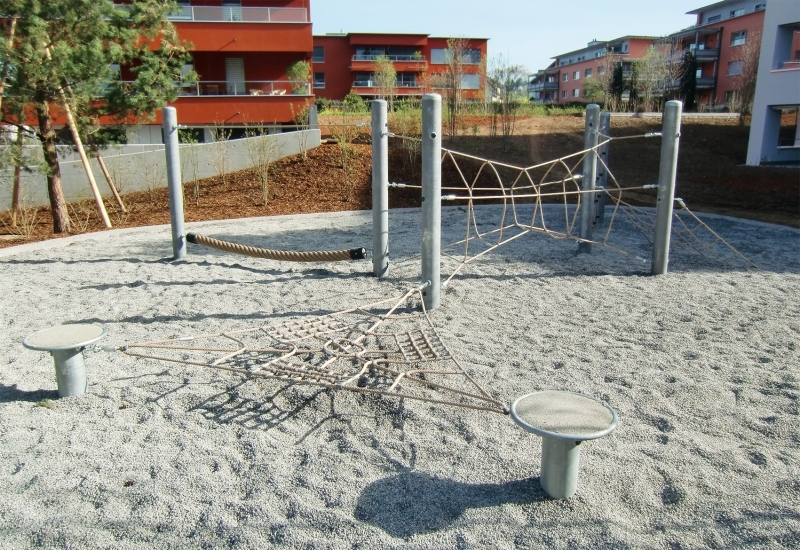

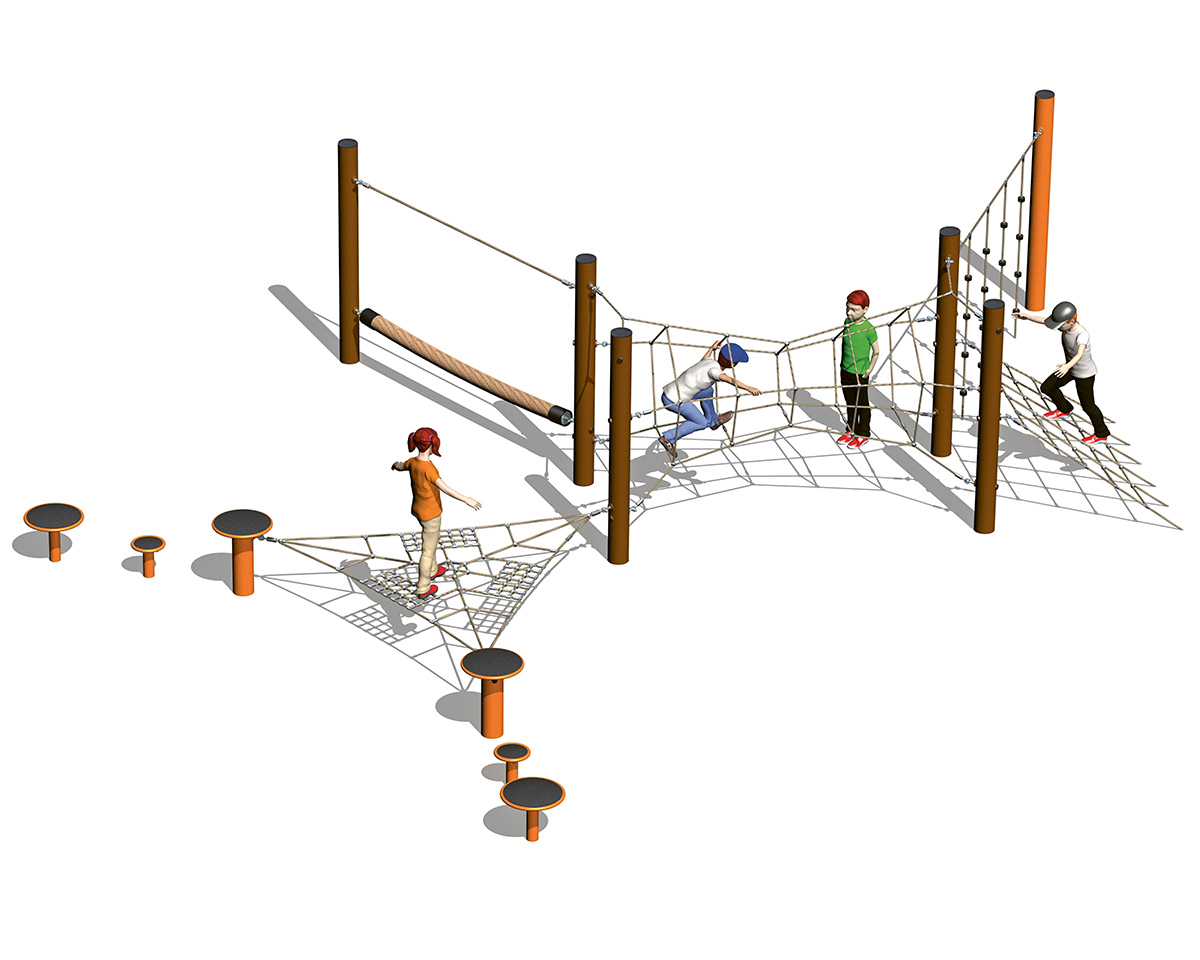

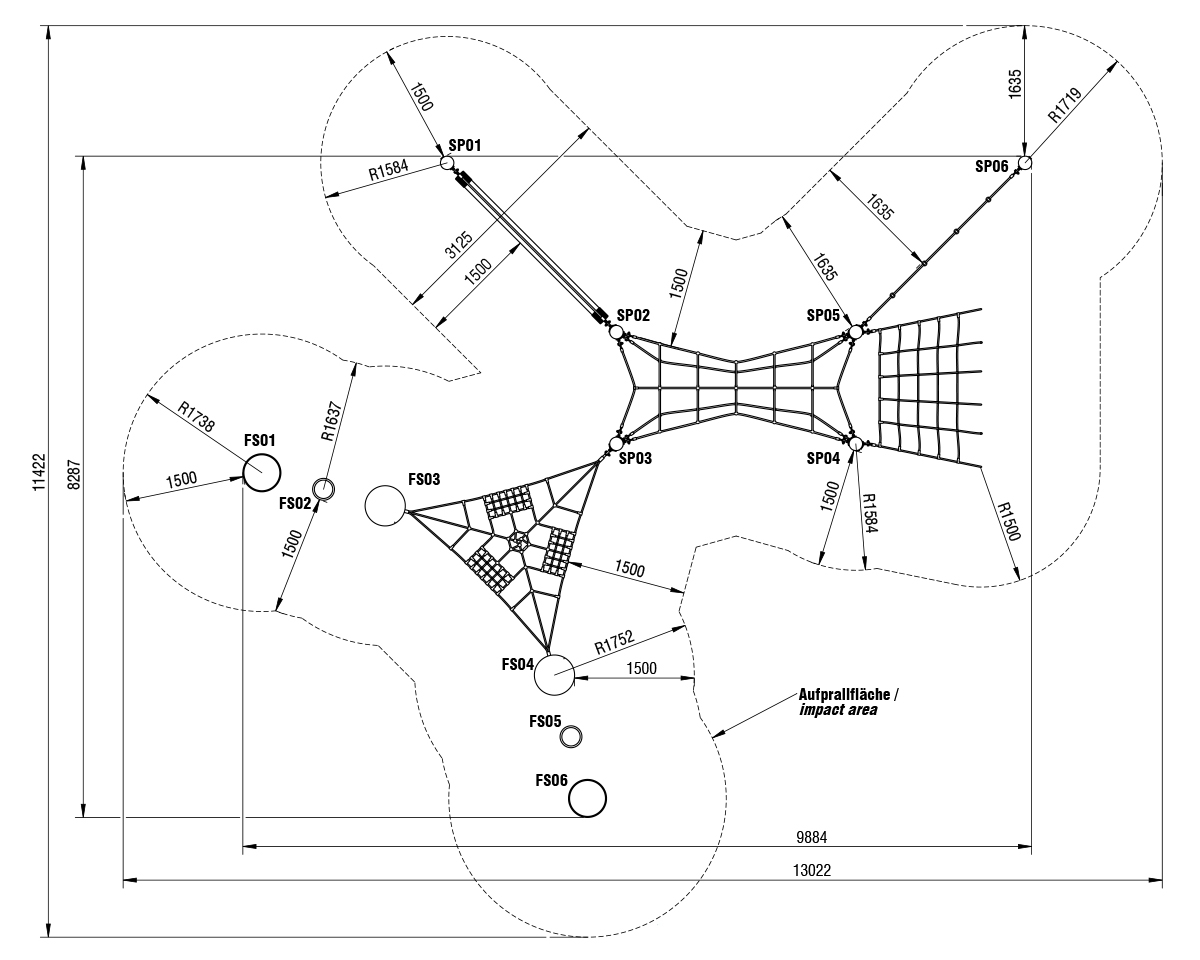

smb Adventure Park Junior Variant 5
No. 7220043
consistings of:

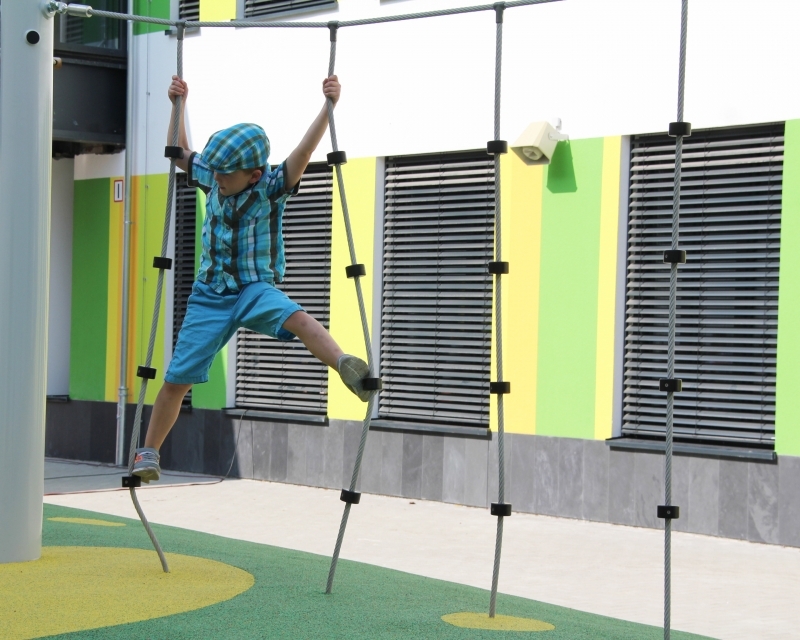

1x Raindrops (3.00 m)
No. 7218019
The raindrop consists of robust Hercules ropes, each with a diameter of 18 mm, with galvanized steel strands and a durable and easy-grip polyamide or polyester yarn coating.
The element consists of a horizontal rope and four vertical ropes (depending on the post spacing) with polyethylene climbing aids.
The horizontal rope is connected to the respective support posts in an easy-to-install manner using the internal and protected SECUCOPE® PLUS tensioning system. This articulated connection (M16) ensures a long service life and enables optimum rope tension.
Depending on the manufacturing length, the element with its horizontal ropes is suitable for a post spacing of up to 5 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

1x Jungle bridge (3.00 m)
No. 7218014
The jungle bridge consists of a robust Hercules rope, Ø 20 mm, as a handrail rope with galvanized steel strands and a durable and easy-grip polyamide or polyester yarn coating.
The rope rope (natural color) made of six-strand polypropylene rope, Ø 130 mm, serves as a tread surface. The ends of the polypropylene rope are sealed with thick-walled PE plastic sleeves, which hold the fastenings in place via an inserted steel plate (fork eye bolt connection). This prevents the rope ends from fraying or unraveling.
The horizontal handrail rope is connected to the respective support posts in an easy-to-install manner using the internal and protected SECUCOPE PLUS tensioning system. This articulated connection (M16) ensures a long service life and enables optimum rope tension.
Depending on the manufacturing length, the jungle bridge is suitable for a post spacing of up to 3.00 m (center of post to center of post).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

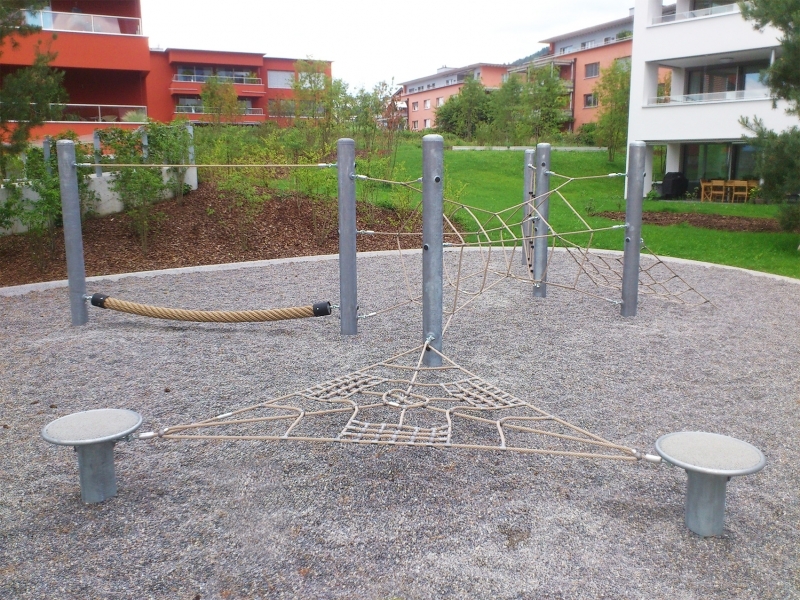

1x Spider web (3.00 x 3.00 x 3.00 m)
No. 7218017
The Spider web is a triangular horizontal net made of robust Hercules ropes Ø 16 mm with galvanized steel strands and a durable, easy-to-grip yarn cover made of polyamide or polyester.
The net crossing points are connected using aluminum ball knots or stainless steel wire rope clips. The net outsides are attached to the edge ropes with aluminum T-clamps.
The ends of this triangular net are connected to the respective support posts using the internal and protected SECUCOPE® PLUS tensioning system. This flexible M20 connection ensures a long service life and allows for optimal rope tensioning.
The post spacing is 3.00 x 3.00 x 3.00 m (post center to post center).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

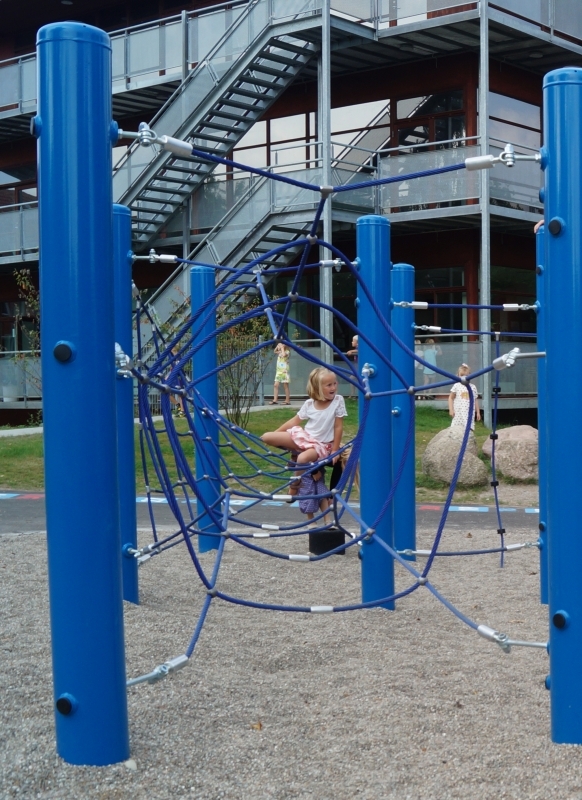

1x Air cave (3.00 x 1.40 m)
No. 7218021
The Air Cave consists of a robust Hercules rope Ø 18mm with galvanized steel strands and a durable, easy-to-grip yarn cover made of polyamide or polyester.
The rope tunnel tapers toward the center from both sides. It is connected horizontally on both ends to two support posts each, using the internal and protected SECUCOPE®PLUS tensioning system. The net crossing points are connected using aluminum ball knots. This flexible M16 connection ensures a long service life and allows for optimal rope tensioning.
The post spacing is 1.40 × 3.00m (post center to post center).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

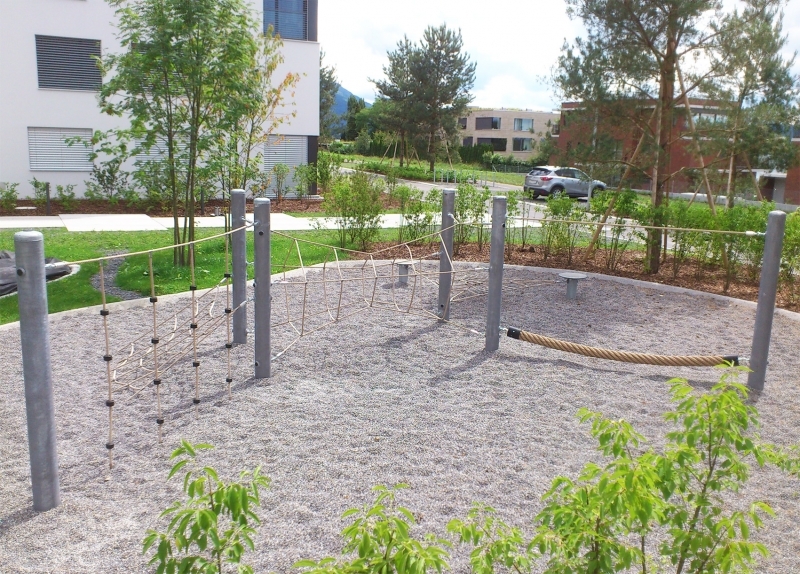

1x Liana net (2.00 x 1.63 m)
No. 7218026
The liana net consists of a robust Hercules rope Ø 16 mm with galvanized steel strands and a durable, easy-to-grip yarn cover made of polyamide or polyester.
The net crossing points are connected using stainless steel wire rope clips. The net outsides are attached to the edge ropes with aluminum T-clamps.
The net is connected on one side, at a height of 1000 mm, to the respective support posts using the internal and protected SECUCOPE® PLUS tensioning system. This flexible M16 connection ensures a long service life and allows for optimal rope tensioning.
On the opposite side, the net is anchored into the ground at four points using concrete foundations measuring
0.40 m x 0.40 m x 0.40 m (2 pieces) and 0.80 m x 0.40 m x 0.40 m (1 piece).
Note: Matching support posts are not included in the scope of delivery and must be ordered separately.

- The Hercules ropes are made of galvanized steel strands and a durable and easy-to-grip yarn cover made of polyamide or polyester.
- The articulated M16 connections ensure a long service life and enable optimum rope tensioning

6x Support post big
No. 7218050
The large support post consists of a steel tube with a diameter of 168.3 mm.
It is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The top of the steel tube is permanently sealed by a flat, elegant slatted cap made of black, weather-resistant plastic.
The post height above the playing level is 2070 mm and the total length is 3070 mm.
The post offers the respective connection options for the articulated fork-eye bolt tensioning system. The large support post has a total of 15 connection options for various adventure park elements.
Anchoring is carried out using a concrete foundation depending on the rope element in sizes ranging from 1.1 m x 1.1 m x 0.8 m to 1.35 m x 1.35 m x 0.8 m.
The minimum concrete grade is C20/25 (B25).

2x Plateau platform
No. 7218052
The platform pedestal is a round standing surface with a diameter of 480 mm and is coated with rubber granulate.
The flange column made of steel tubing with a diameter of 168.3 mm is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The platform offers connection options for the articulated fork-eye bolt clamping system M16 mm.
It is anchored using a concrete foundation (0.8 x 0.8 x 0.8 m) and the minimum concrete grade is C20/25 (B25).

2x Small beetle
No. 7216400 (Concrete foundation)
The small beetle has a round base with a diameter of 274 mm and is coated with rubber granulate.
The flange column made of steel tubing with a diameter of 88.9 mm is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The platform plate and flange column are bolted together so that the platform plate can be removed if necessary.
The height above the play level is between 200 and 400 mm.
Anchoring is carried out using a concrete foundation (0.4 x 0.4 x 0.4 m) and the minimum concrete grade is C20/25 (B25).

or

No. 7216500 (Flange anchorage)
The small beetle has a round base with a diameter of 274 mm and is coated with rubber granulate.
The steel tube column with a diameter of 88.9 mm for flanging is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in RAL colors.
The platform plate and flange column are screwed together.
The height above the play level is between 200 and 400 mm, depending on the design requirements.
The four necessary dowels and the fastening materials are included in the scope of delivery.
Anchoring is carried out using a concrete foundation (0.4 x 0.4 x 0.4 m) and the minimum concrete grade is C20/25 (B25).

2x Big beetle
No. 7216401 (Concrete foundation)
The big beetle has a round base with a diameter of 480 mm and is coated with rubber granulate.
The flange column made of steel tube with a diameter of 88.9 mm is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
The platform plate and flange column are bolted together so that the platform plate can be removed if necessary. The height above the play level is between 100 and 500 mm.
Anchoring is carried out using a concrete foundation (0.6 x 0.6 x 0.4 m) and the minimum concrete grade is C20/25 (B25).

or

No. 7216501 (Flange anchorage)
The big beetle has a round base with a diameter of 480 mm and is coated with rubber granulate.
The steel tube stand column (Ø 88.9 mm) for flanging is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in RAL colors.
The platform plate and flange column are bolted together.
The height above the play level is between 200 and 400 mm, depending on the design requirements.
The four necessary dowels and the fastening material are included in the scope of delivery.
Anchoring is carried out using a concrete foundation (0.6 x 0.6 x 0.4 m) and the minimum concrete grade is C20/25 (B25).

Color options: A wide range of rope and panel colors is available for individual design preferences.
