Plateau platform

No. 7218052

Unit space areaØ 0.48 m
Safety space areaØ 3.48 m
Height of unit0.40 m
Number of users1
Free fall height0.40 m
Total weight54.5 kg
Assembly time0.25 hours
Installers1 person
Foundations0.80 x 0.80 x 0.80 m
Total quantity of concrete0.52 m³

Suitable for Adventure Park Bambino and Junior.

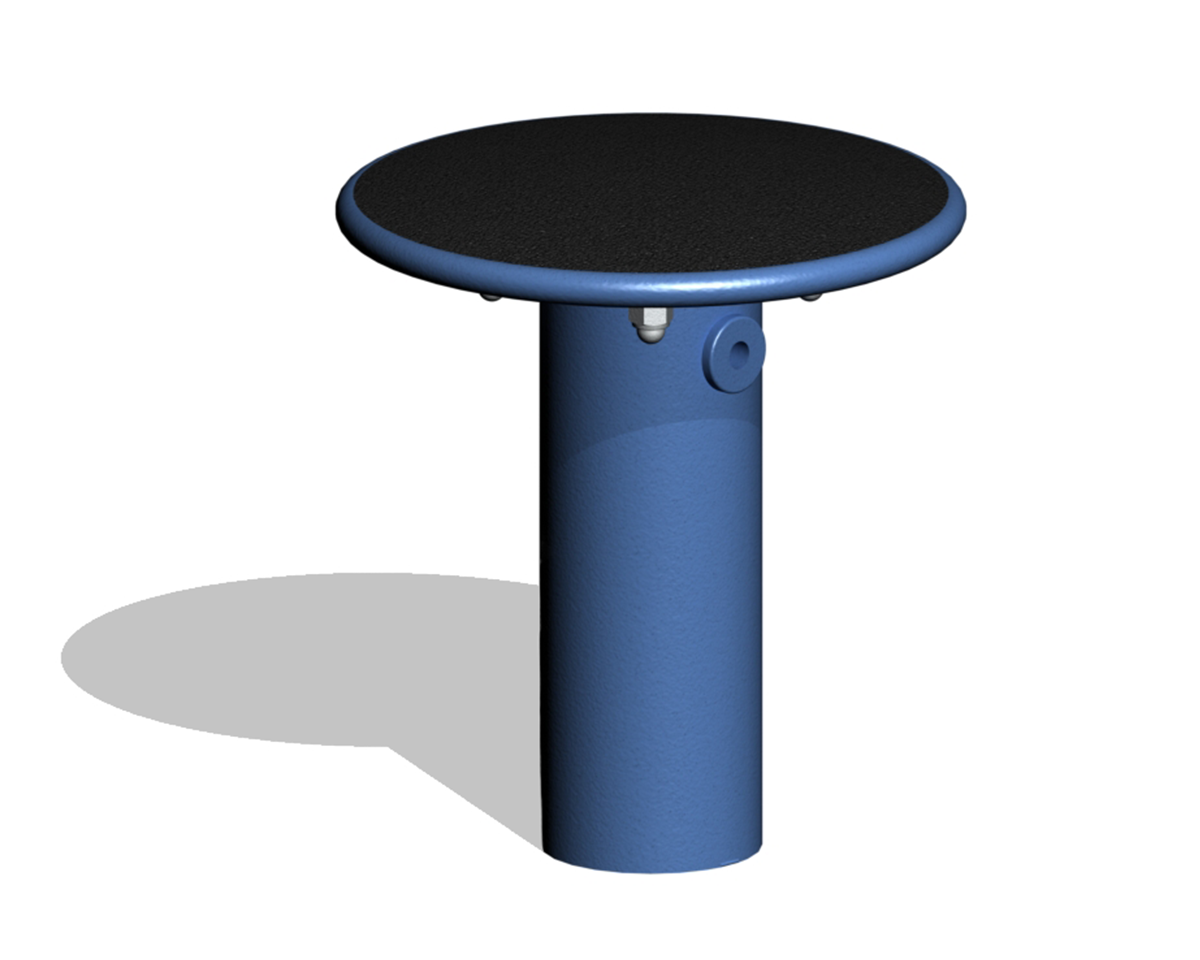

The plateau platform is a round standing surface with Ø 480 mm and coated with rubber granulate.

The flange column made of steel tube with Ø 168.3 mm is permanently protected against corrosion by means of hot-dip galvanizing and subsequent color powder coating in a RAL color.

For the Adventure Park product series, we have further developed our proven SECUCOPE® PLUS tensioning system with fork eye bolt. It offers the advantage that the optimum degree of pretensioning can be set for each individual rope element between the posts. Furthermore, the rope elongation due to use can be compensated at the following maintenance intervals.

Welcome to new adventures! Build your own Adventure Park - with your ideas and our experiences!

Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL4012Pearl blackberry
    RAL 4012
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable granulate colors for platforms

  • 000Brick red
    000
  • 290Pearl white
    290
  • 390Black
    390
  • 210Beige
    210
  • 410May green
    410
  • 180Sky blue
    180


Information: A large number of further colors are possible.
