Small beetle

No. 7218030

Unit space area	Ø 0.27 m
Safety space area	Ø 3.27 m
Height of unit	0.20 - 0.40 m
Number of users	1
Free fall height	0.20 - 0.40 m
Total weight	27.5 kg
Assembly time	0.25 hours
Installers	1 person
Foundations	0.40 x 0.40 x 0.40 m
Total quantity of concrete	0.06 m³

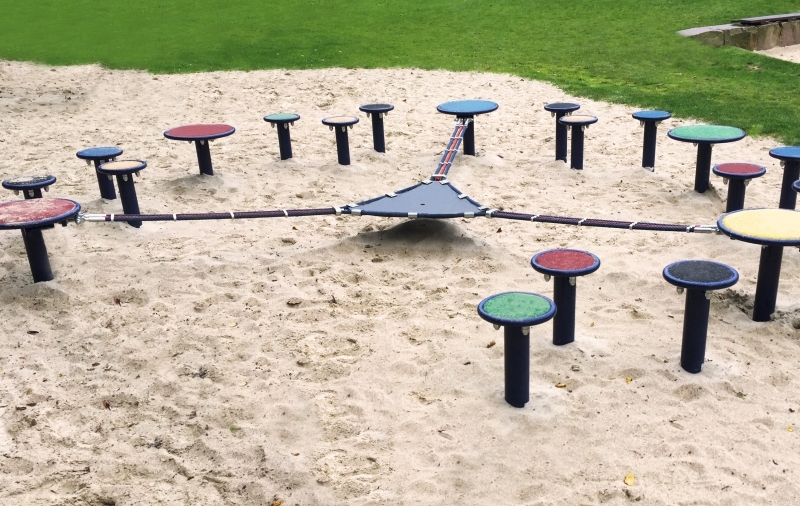

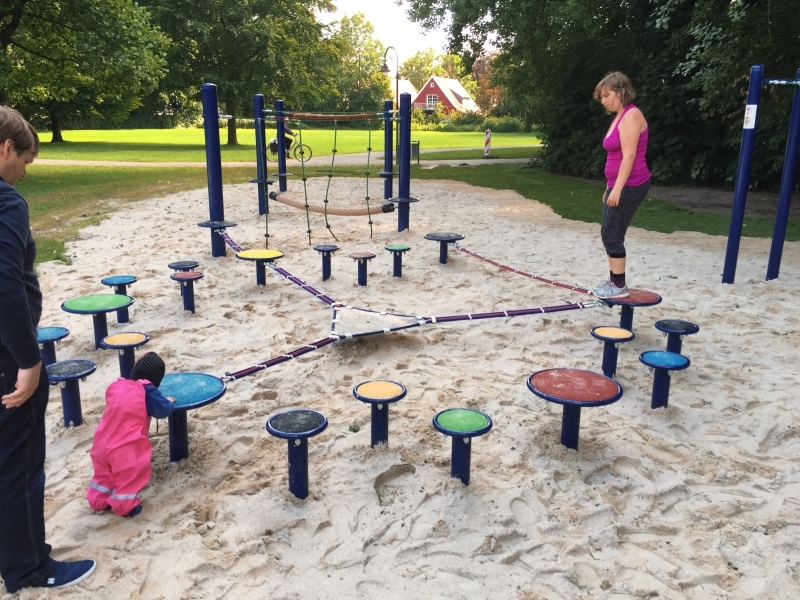

Suitable for Adventure Park Bambino and Junior.

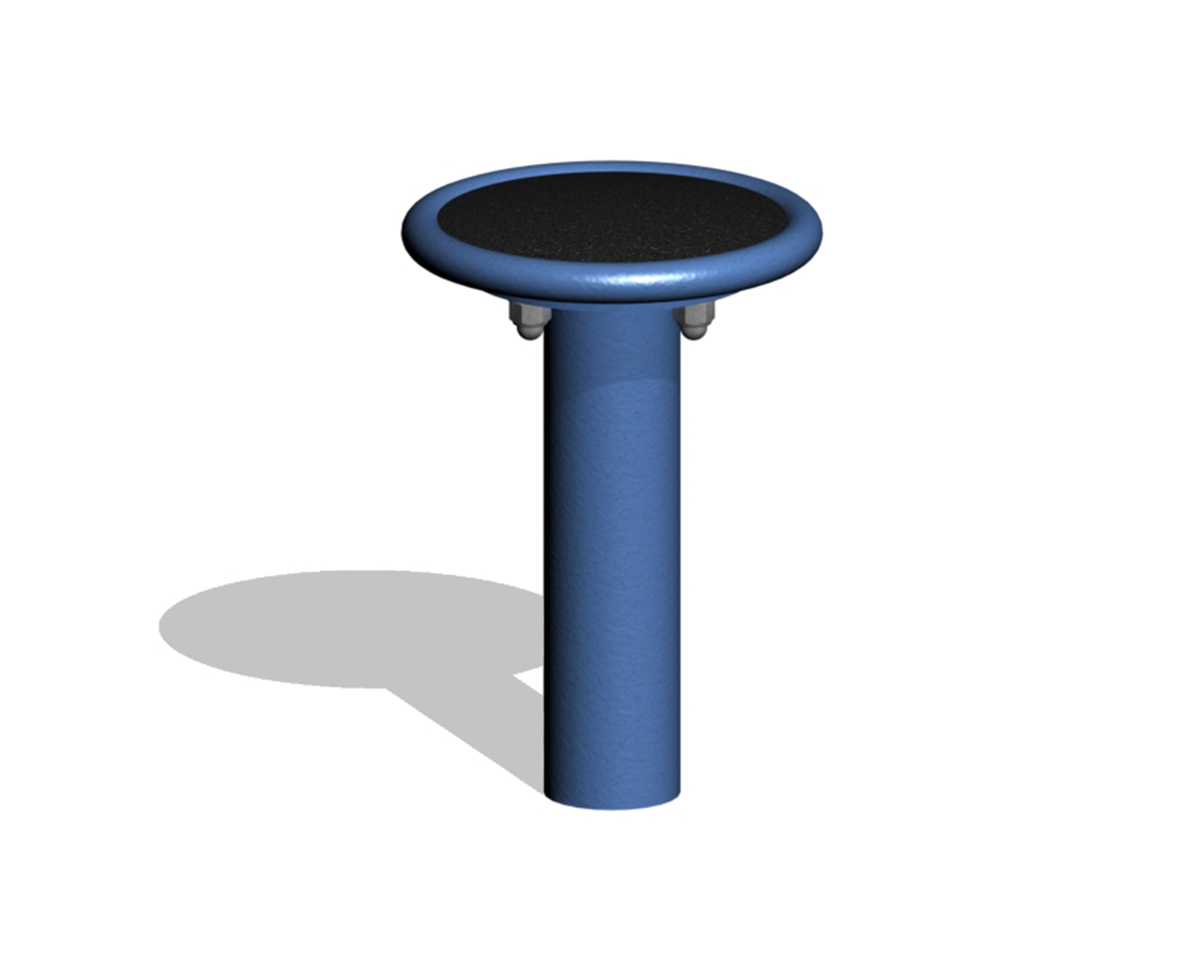

The small beetle has a round base with a diameter of 274 mm and is coated with rubber granulate.
The flanged column made of steel tube Ø 88.9 mm is permanently protected against corrosion by means of hot-dip galvanizing and subsequent color powder coating in a RAL color tone.

For the Adventure Park product series, we have further developed our proven SECUCOPE^® PLUS tensioning system with fork eye bolt. It offers the advantage that the optimum degree of pretensioning can be set for each individual rope element between the posts. Furthermore, the rope elongation due to use can be compensated at the following maintenance intervals.

Welcome to new adventures! Build your own Adventure Park - with your ideas and our experiences!
