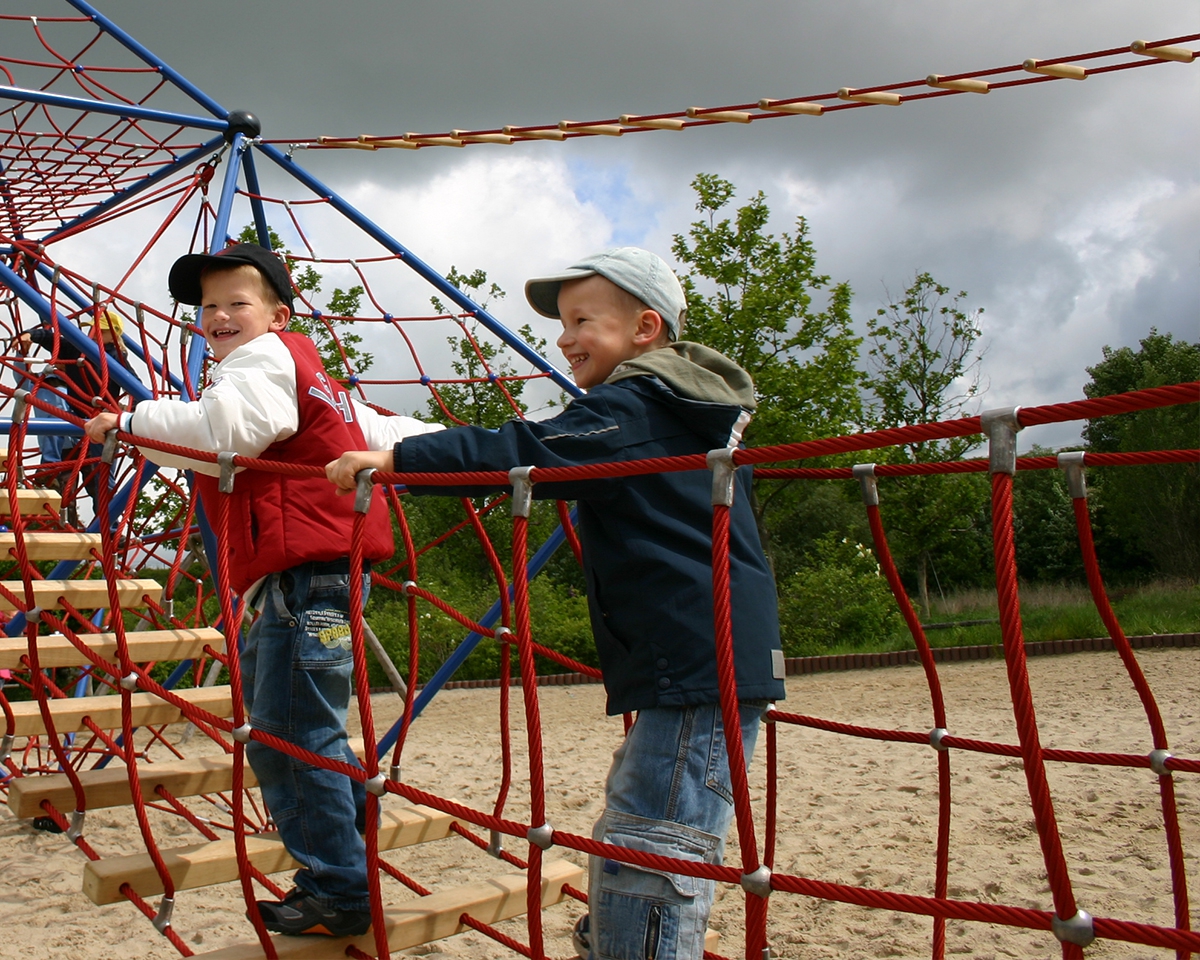

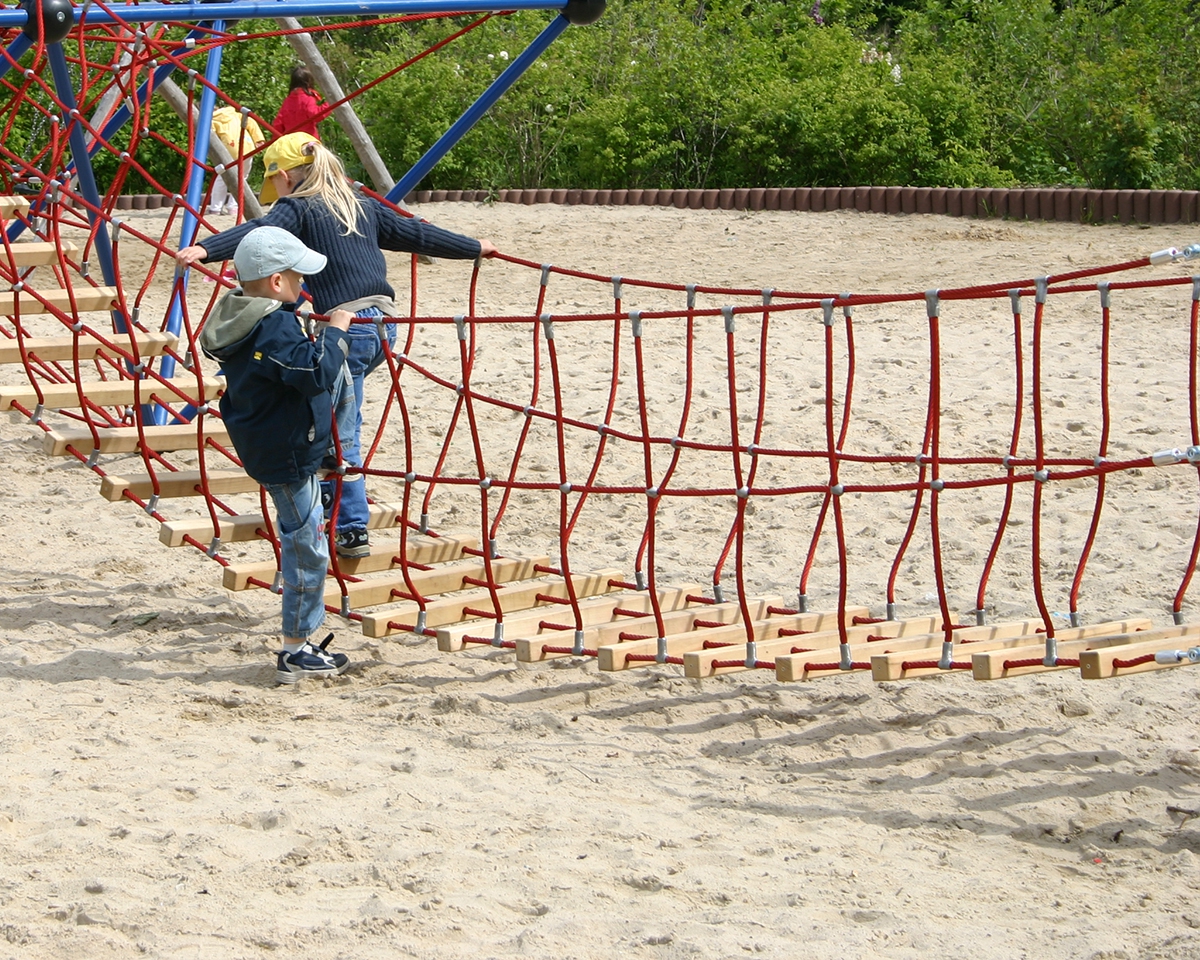

Rung-bridge

No. 9000046

Assembly timedepends on construction
Installersdepends on construction
Foundations2x 1.40 x 0.80 x 0.80 m

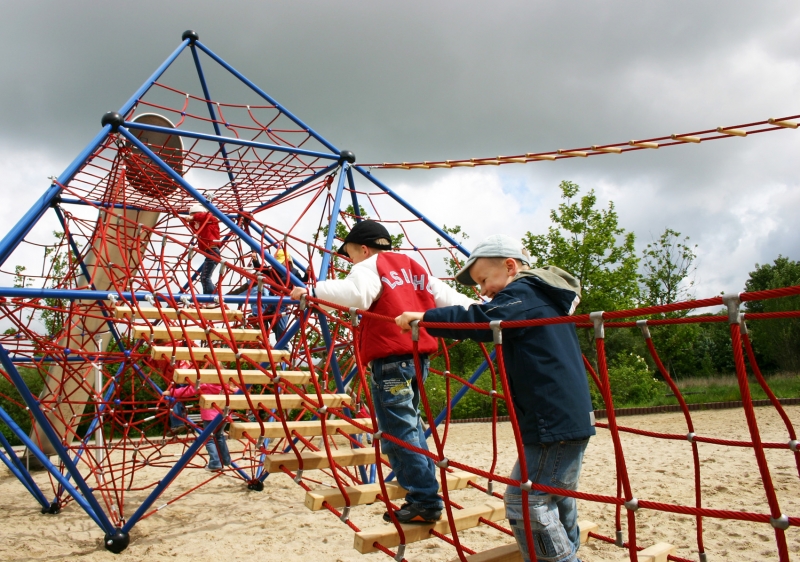

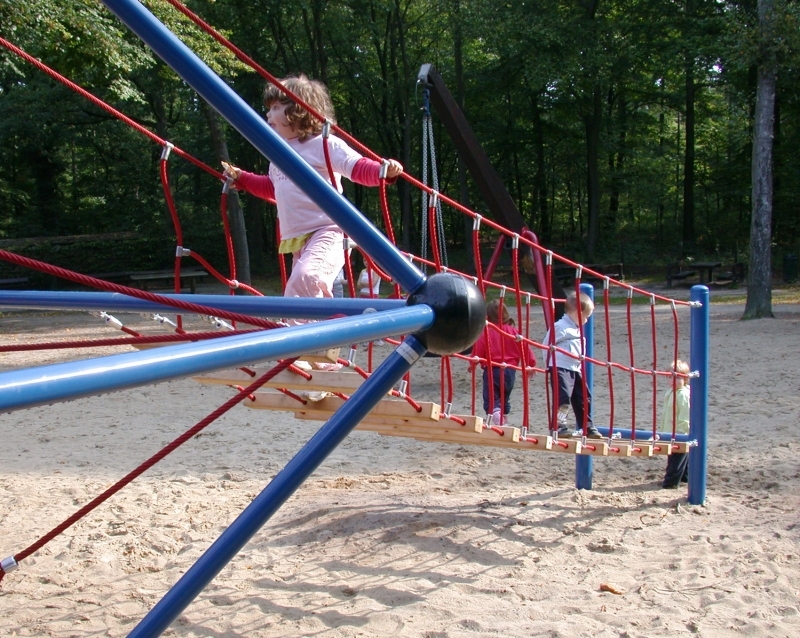

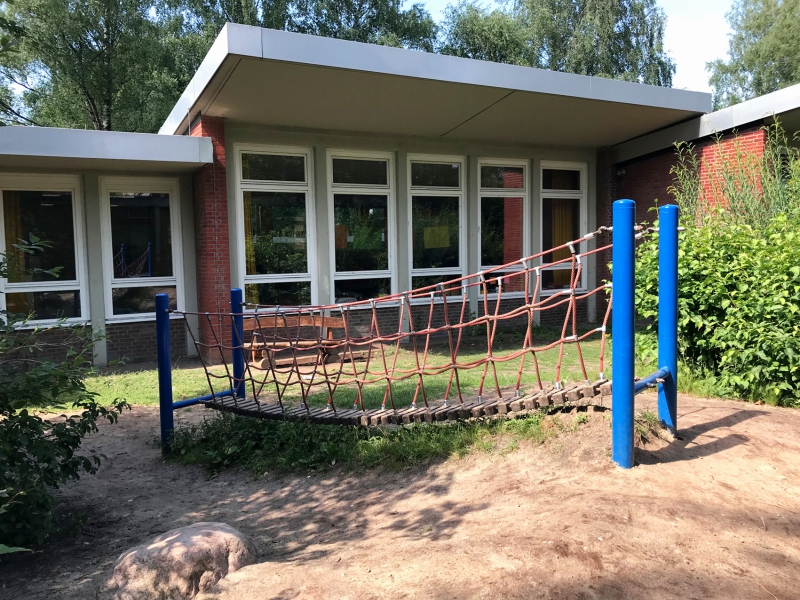

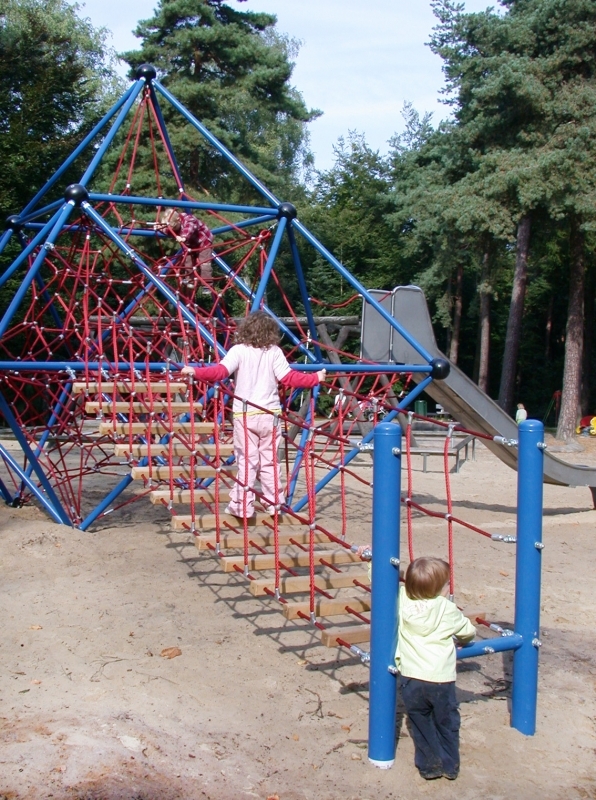

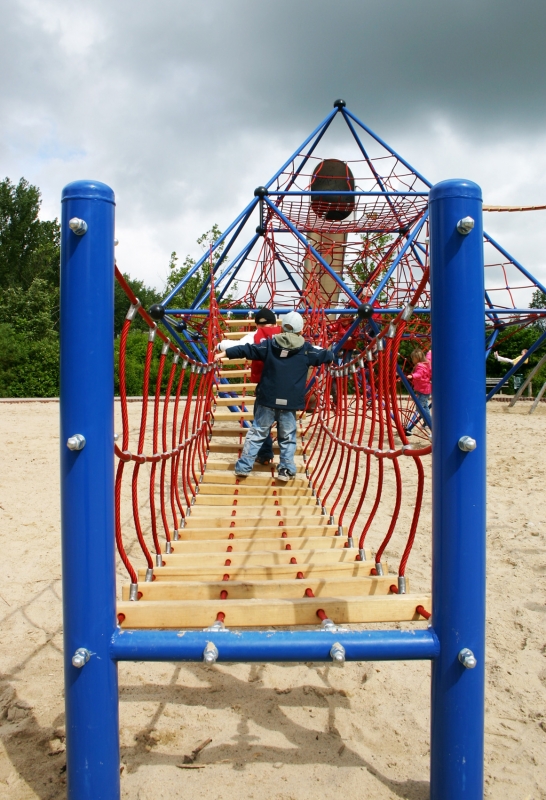

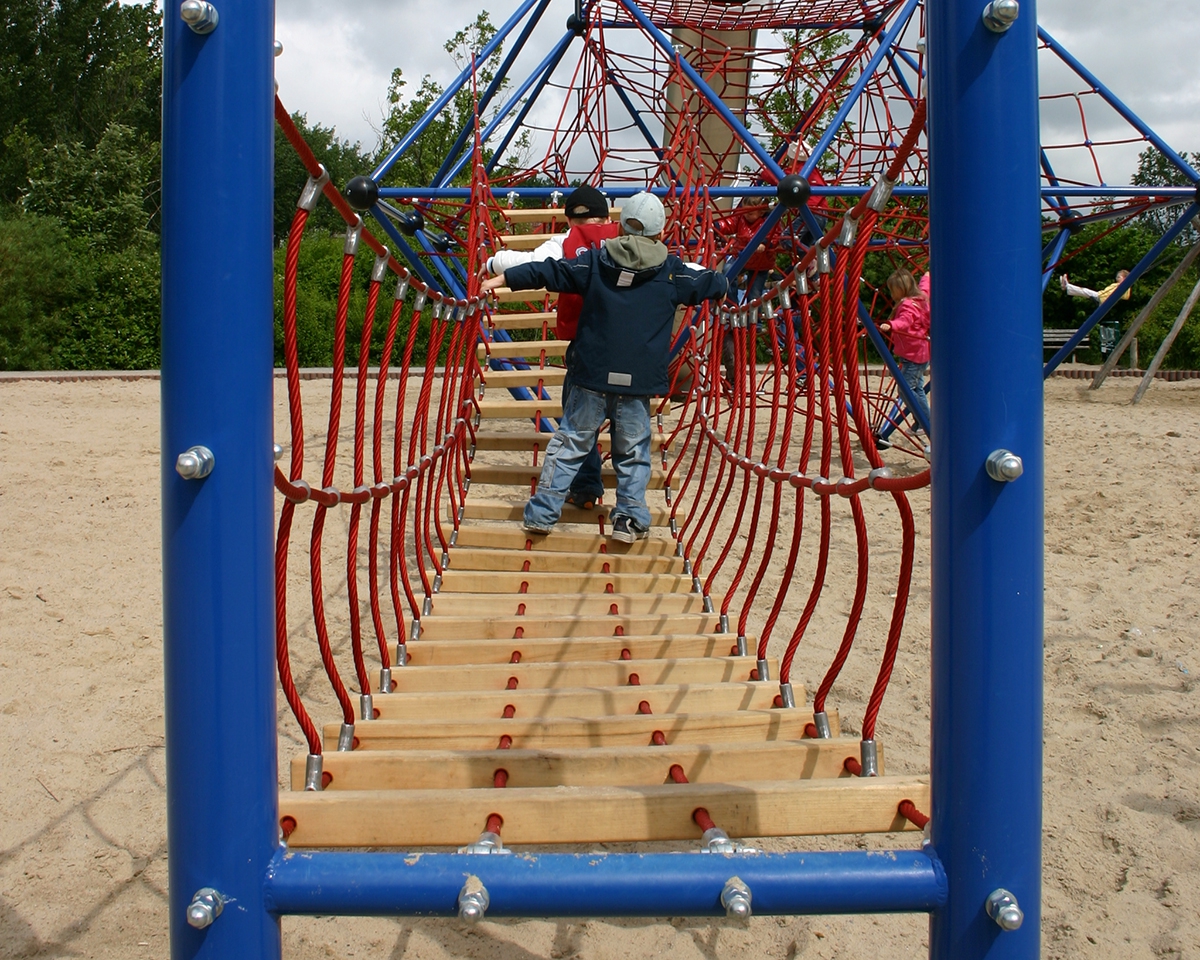

smb-bridges are ideal additional elements to add that certain something to our framework units.

Of course are the bridges also available as a separate device. Depending on the length of the bridge are center supports or special support ropes and fittings required.

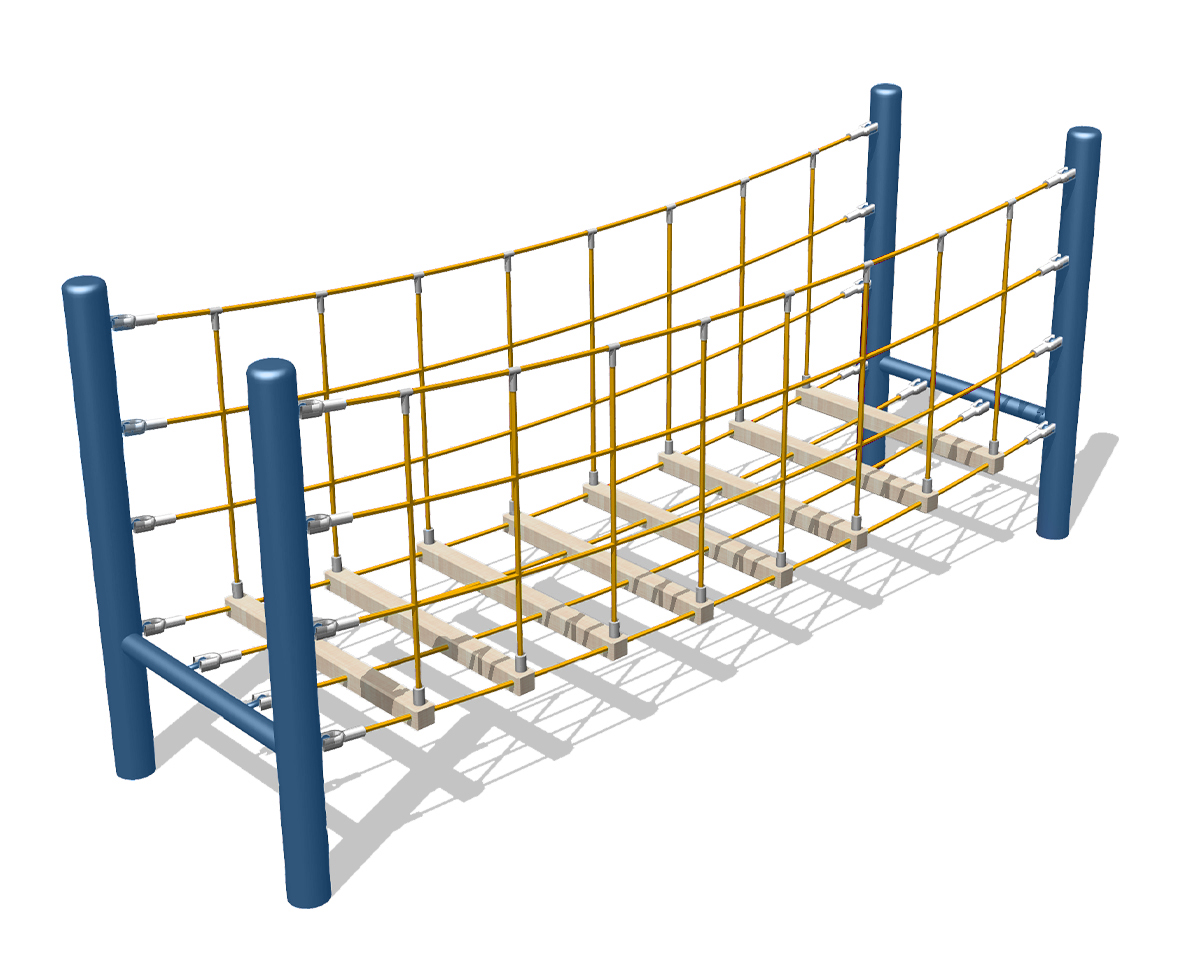

Bridge

Rope 16 mm
Bridge width 750 mm
Parapet height 850 mm
Ladder step clearance 250 mm
ladder steps 60 x 60 x 850 mm (acacia wood)
Standard lengths up to 6.00 m, anything longer than 6 m has to be in consultation.

Fixation: bracket/eye bolt M16

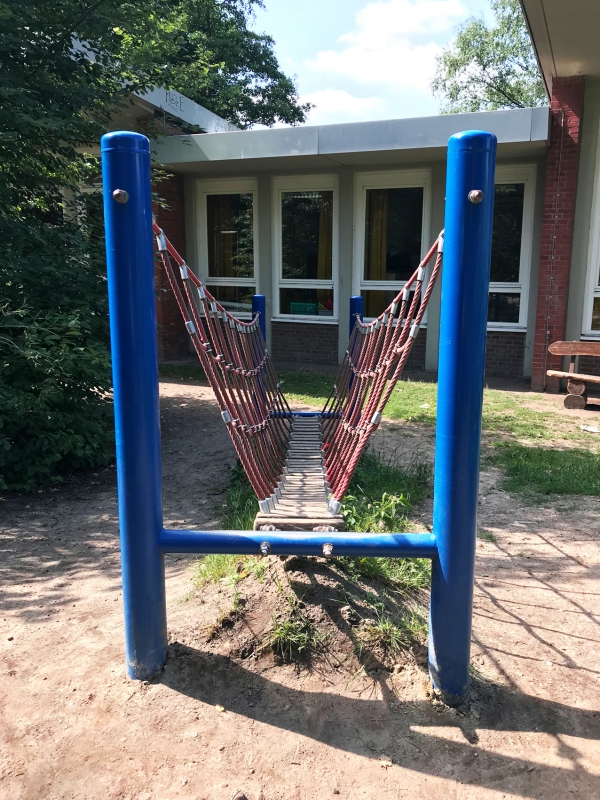

Entry support

Support construction out of steel tube 108 x 3,6 mm; protected against corrosion by galvanizing and subsequent powder coating RAL color.

Width (center) 800 mm

Entry height 400 mm
Post height of playground 1350 mm

The ladder steps out of acacia wood have the dimension of 60 x 60 mm.

All corners and edges are rounded. Acacia wood has a variety of characteristics that are ideal for outdoor use. The wood is hard, tough and elastic and does not require environmentally harmful impregnation. The durability is according to DIN EN 350-2 class 1, which is a long life.

We will also manufacture bridges according to your individual specifications.


Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL4012Pearl blackberry
    RAL 4012
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow
