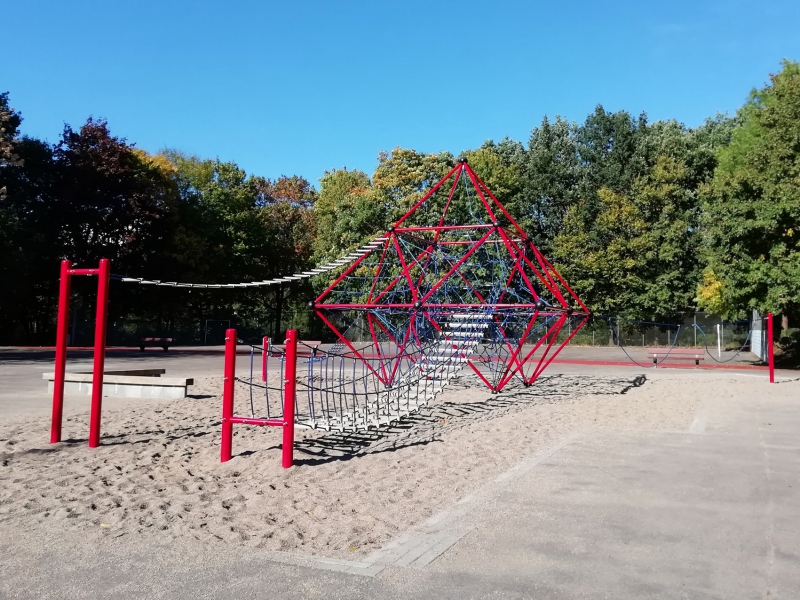

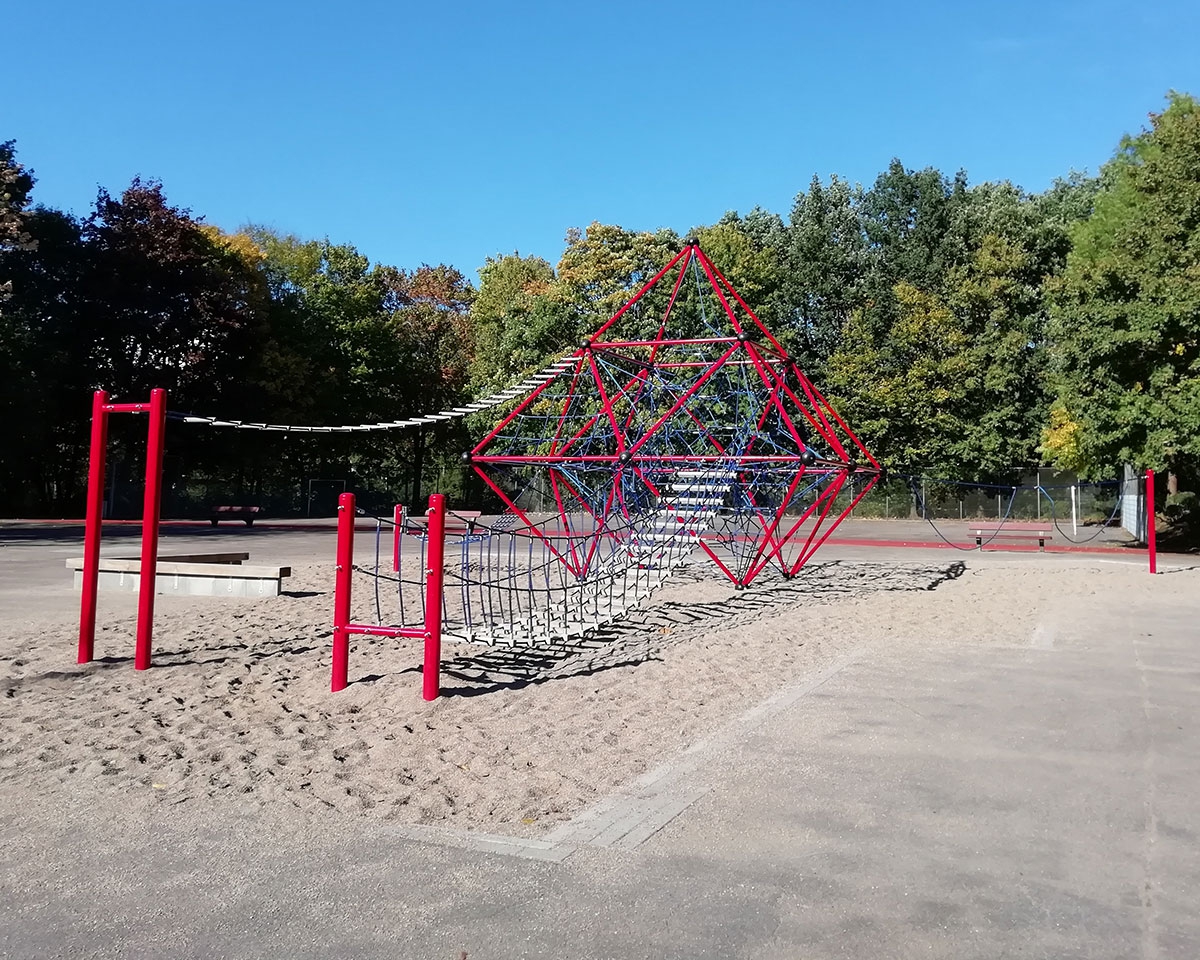

Mount Logan variant 1

No. 3153017, 3153317 (Triangulum)

Unit space area12.15 x 10.15 m
Safety space area15.80 x 13.41 m
Height of unit5.49 m
Age range5+
Number of users62
Free fall height2.89 m
Heaviest component175 kg
Total weight1300 kg
Assembly time8.00 hours
Installers3 persons
Foundations
Basic unit4 (1.30 m³ total quantity of concrete)
Additional elements3 (4.00 m³ total quantity of concrete)

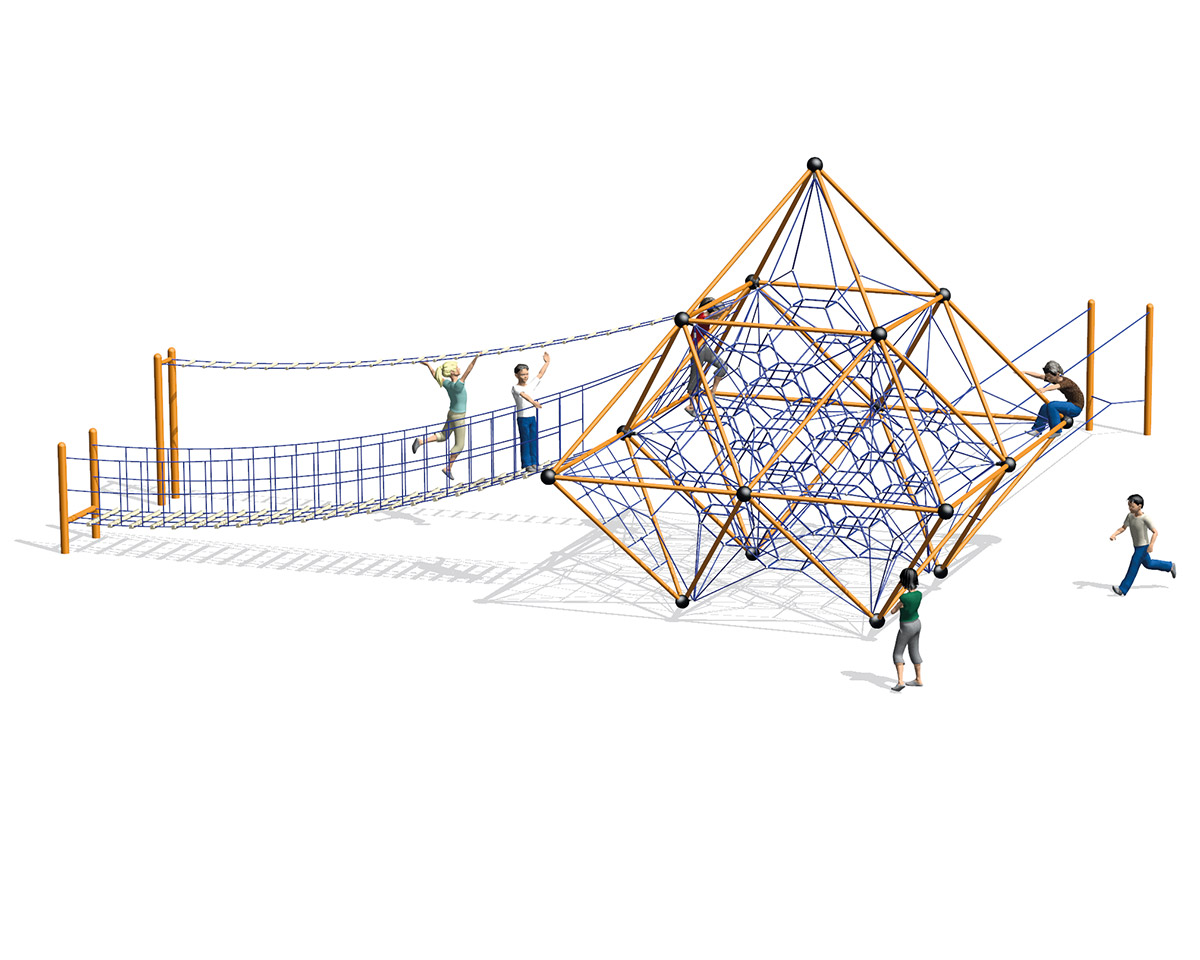

Mount Logan variant 1 consisting of the following individual components:

1 Basic unit
1 Balancing rope (5.00 m)
1 Hand over hand ladder (7.00 m)
1 Rung bridge (7.00 m)

Wow! It is almost impossible to have more possibilities to enter the Mount Logan than in variant 1.

The children have the choice! Either via the balancing rope, the 7.00 m long hand over hand ladder or the 7.00 m long rung bridge. Or they try one way after the other to find out which one is the most difficult way.

Giving up does not count! Concentration, cleverness, skill and ambition are required.



Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Additional elements Mount Logan

  • Triangular netTriangular net


  • Climbing net half-sideClimbing net half-side


  • Climbing net full-sideClimbing net full-side


  • Trapezoid net half-sideTrapezoid net half-side


  • Trapezoid net full-sideTrapezoid net full-side


  • Rung bridgeRung bridge


  • Catwalk bridgeCatwalk bridge


  • Jungle bridgeJungle bridge


  • Wobbly bridgeWobbly bridge


  • Hand over hand ladderHand over hand ladder


  • Hammock swingHammock swing


  • Hand over hand loop ropeHand over hand loop rope


  • Climbing rope, externalClimbing rope, external


  • Climbing rope, internalClimbing rope, internal


  • Climbing ladder, internalClimbing ladder, internal


  • Balancing ropeBalancing rope


  • Slide small, narrowSlide small, narrow


  • Slide small, wideSlide small, wide


  • Slide large, curved, party tunneledSlide large, curved,
    party tunneled
    (Classic)
  • Slide large, partly tunneledSlide large,
    partly tunneled
    (Classic)
  • Anchor frame, hot-dip-galvanisedAnchor frame,
    hot-dip-galvanised


  • colorballscolorballs
