Adventure Park Bambino Variant 8
No. 7219047
Unit space area | look at draft plan |
Safety space area | look at draft plan |
Height of unit | 1.72 m |
Age range | 3+ |
Number of users | 34 |
Free fall height | 0.60 m |
Heaviest component | 80 kg |
Total weight | 1137 kg |
Assembly time | 7.00 hours |
Installers | 2 persons |
Foundations | 18x 0.40 x 0.40 x 0.40 m |
2x 0.80 x 0.80 x 0.80 m | |
1x 0.70 x 0.70 x 0.80 m | |
2x 0.60 x 0.60 x 0.40 m | |
4x 1.10 x 1.10 x 0.80 m | |
Total quantity of concrete | 6.14 m³ |

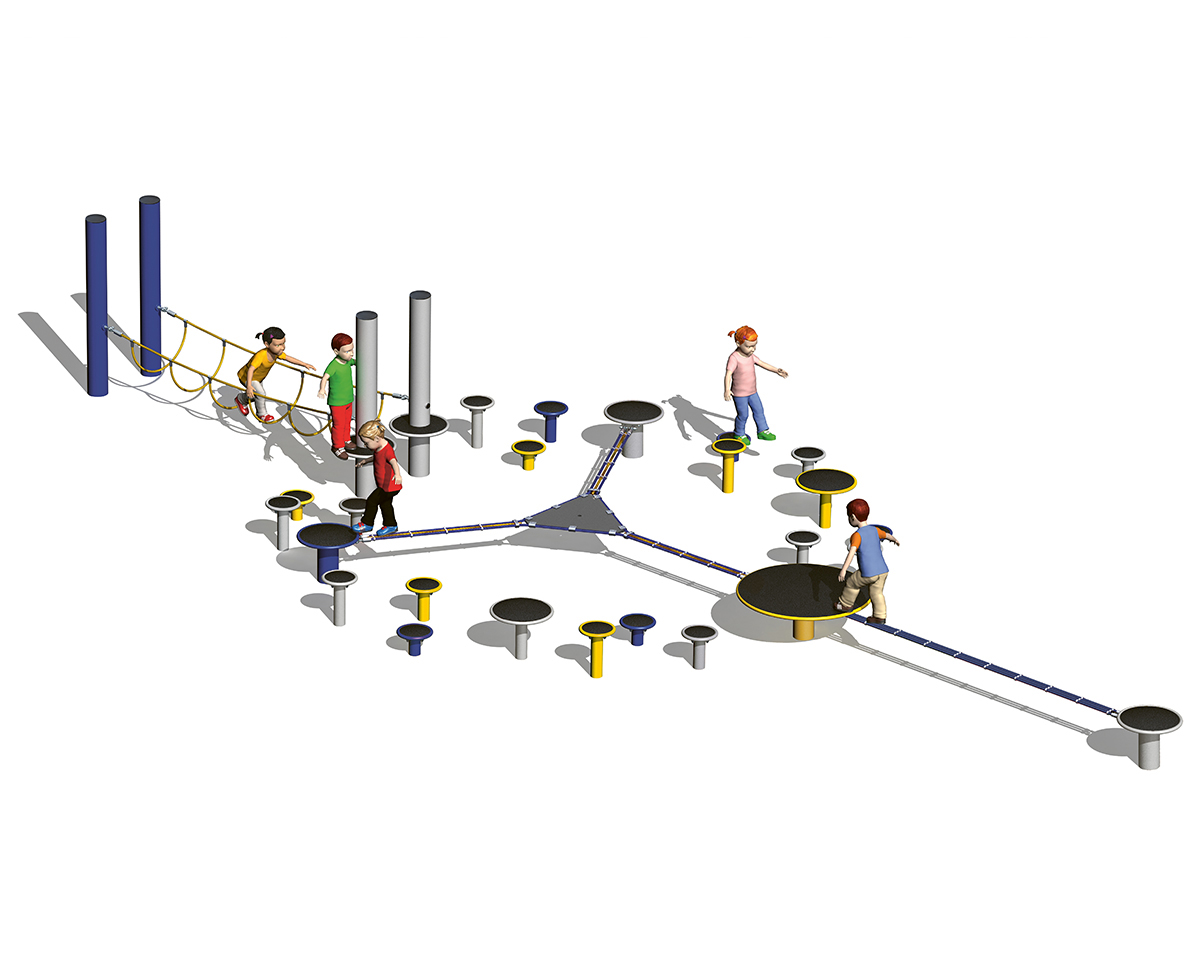

Bambino Variant 8 consisting of several individual components:
1 Tiger trail (3.00 m)
1 Ropeway Original (3.00 m)
1 Ropeway Flux 02
4 Support post small - Bambino
2 Plateau plates
1 Group platform
3 Podium circle S
2 Big beetle
18 Small beetle
The Bambino series allows infants to explore the world while testing their climbing skills. The Bambino elements are especially developed for children between 3 and 6 years of age. The free fall height is never more than 0.6 m. In this series, shorter posts add to the wide selection of individual modules.
Of course the Bambino series can be easily combined with the Junior series.
For the product series Adventure Park we refined our greatly approved SECUCOPE®PLUS-bracing with fork/eye bolts system. In comparison to the usual fixing method through tube clamps, the SECUCOPE®PLUS-bracing system has the advantage that every single rope element between the posts can be individually adjusted with the optimal pretension. Moreover, the stretching of the rope through usage can be balanced when maintaining the equipment.
