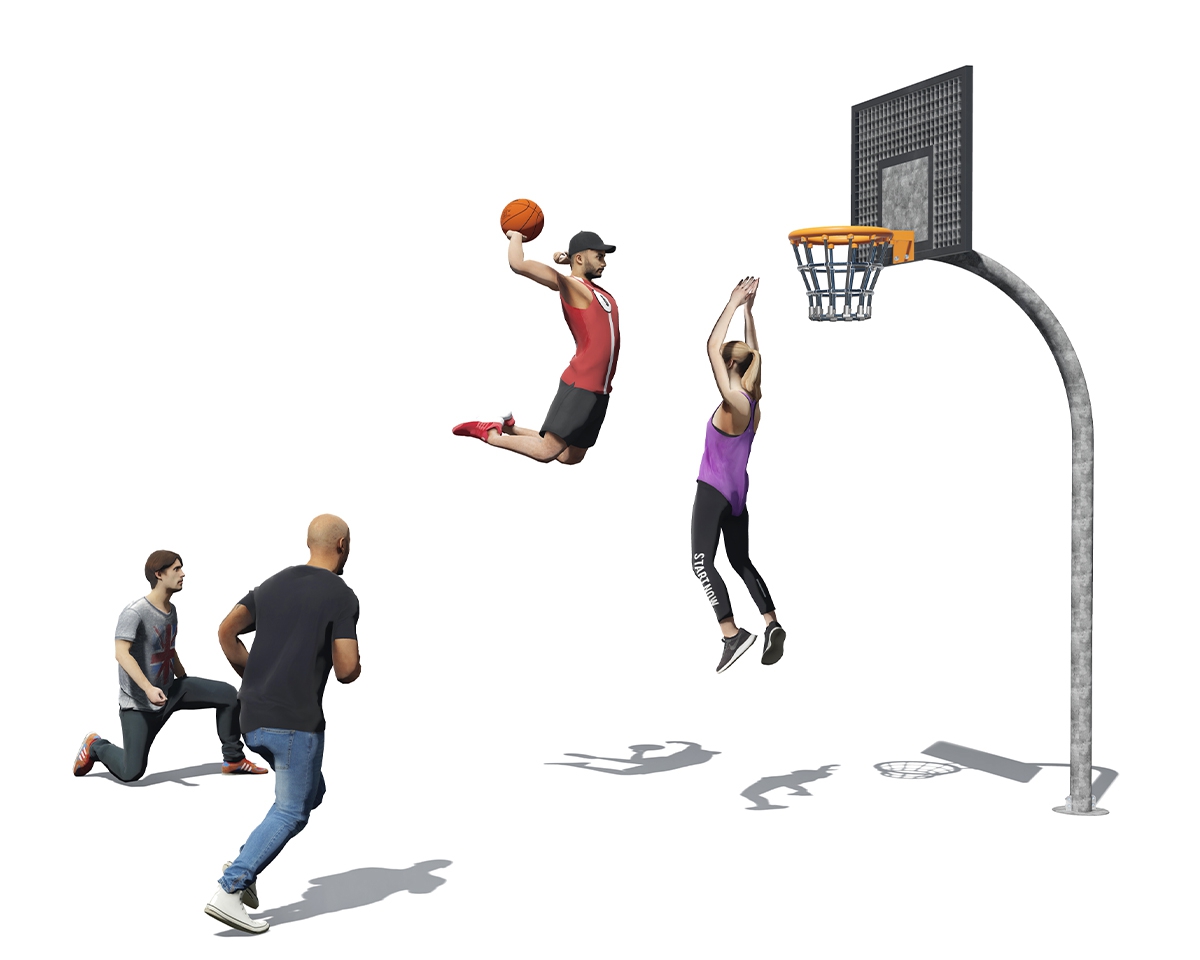

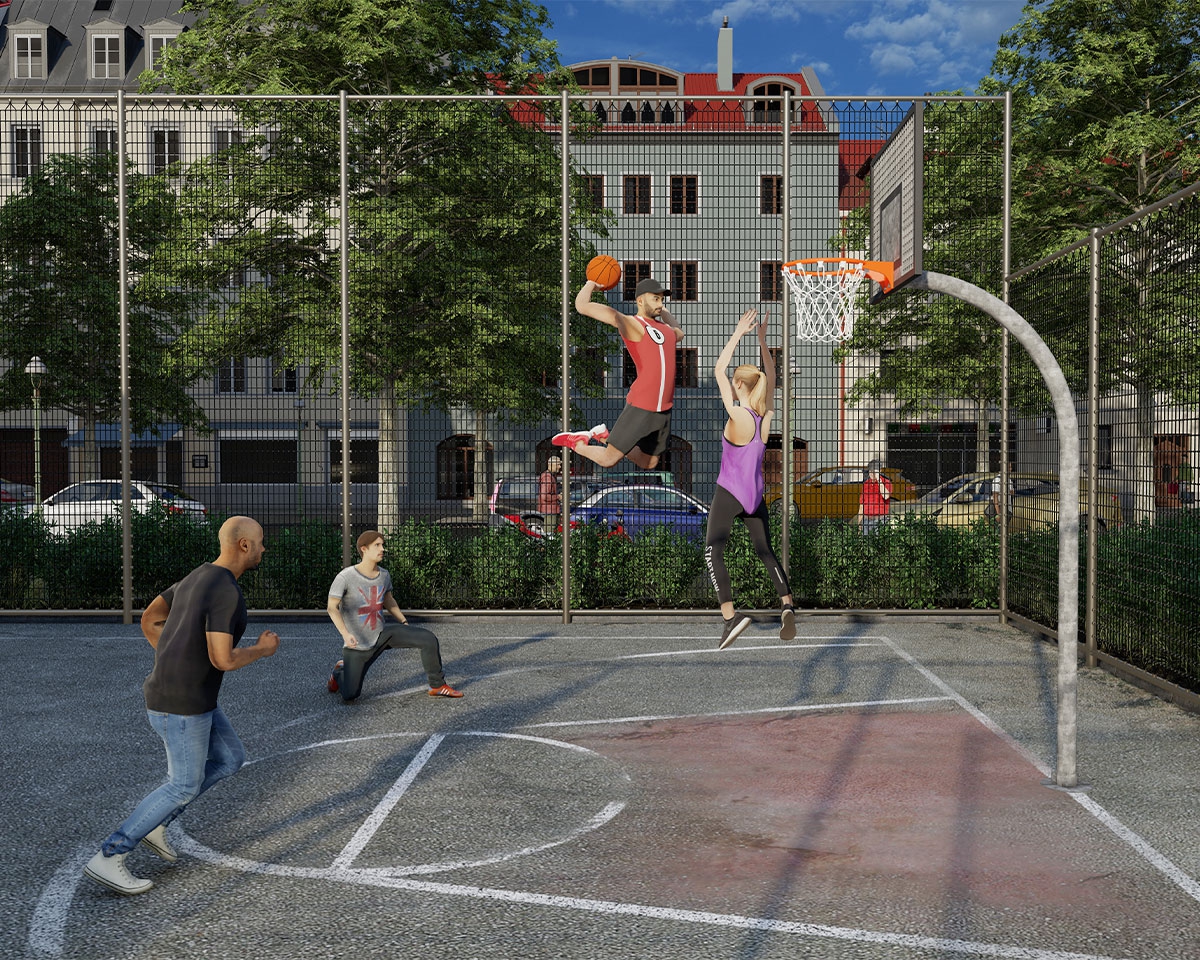

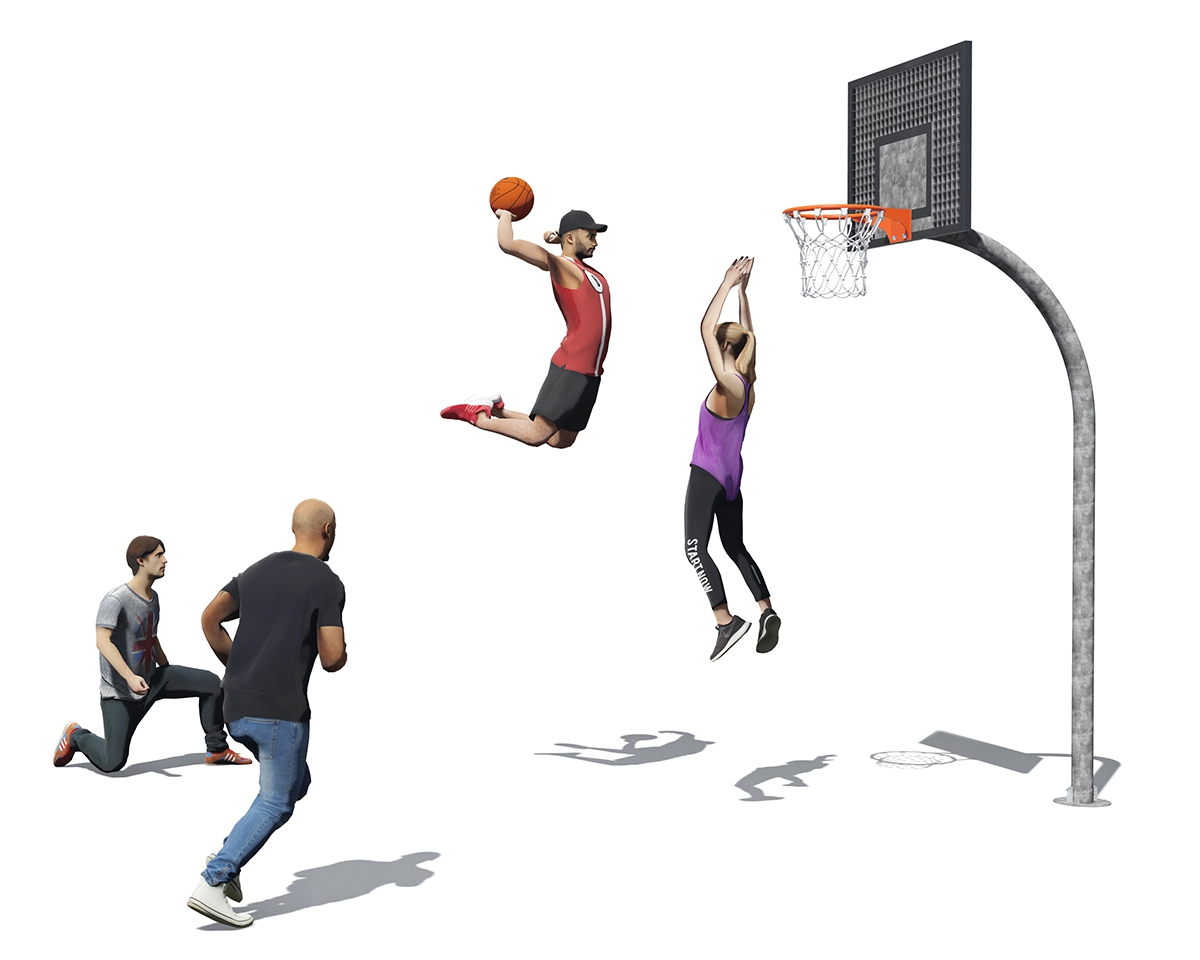

Streetball equipment original

No. 7010021 (streetball equipment) + No. 7010005 / 7010106 (basket) + No. 7010016 / 7010030 (target board)

Unit space area3.80 x 1.75 x 1.19 m
Basket ring height3.05 m
Backboard dimensions1.20 x 0.90 m
Mast extension1.01 m
Heaviest component65 kg
Total weight105 kg
Assembly time1.00 hour
Installation personnel2 persons
Foundations1x 0.90 x 1.00 x 1.00 m

The streetball equipment original consists of:
1x Streetball equipment original, mast overhang extension of 1000 mm, without streetball basket (No. 7010021)
1x Flange anchor for streeball equipment (No. 7010002602)

Selectable equipment for smb streetball systems:
1x Streetball target board (Variant selectable, image shows "standard" (No. 7010016), alternatively "tournament" (No. 7010030))
1x Streetball-basket (Variant selectable, image shows „99 classic“ (No. 7010106), alternatively: „SBK-01“ (No. 7010005))

Additional equipment for smb streetball systems:
1x Post and flange cover additionally powder-coated to RAL classic (No. 7010007)
1x Post protection pad with zipper (No. 7010040)
1x Shortening streetball posts, maximum shortening of 60 cm possible (No. 7010201)


Our streetball equipment is designed for durability and noise reduction.

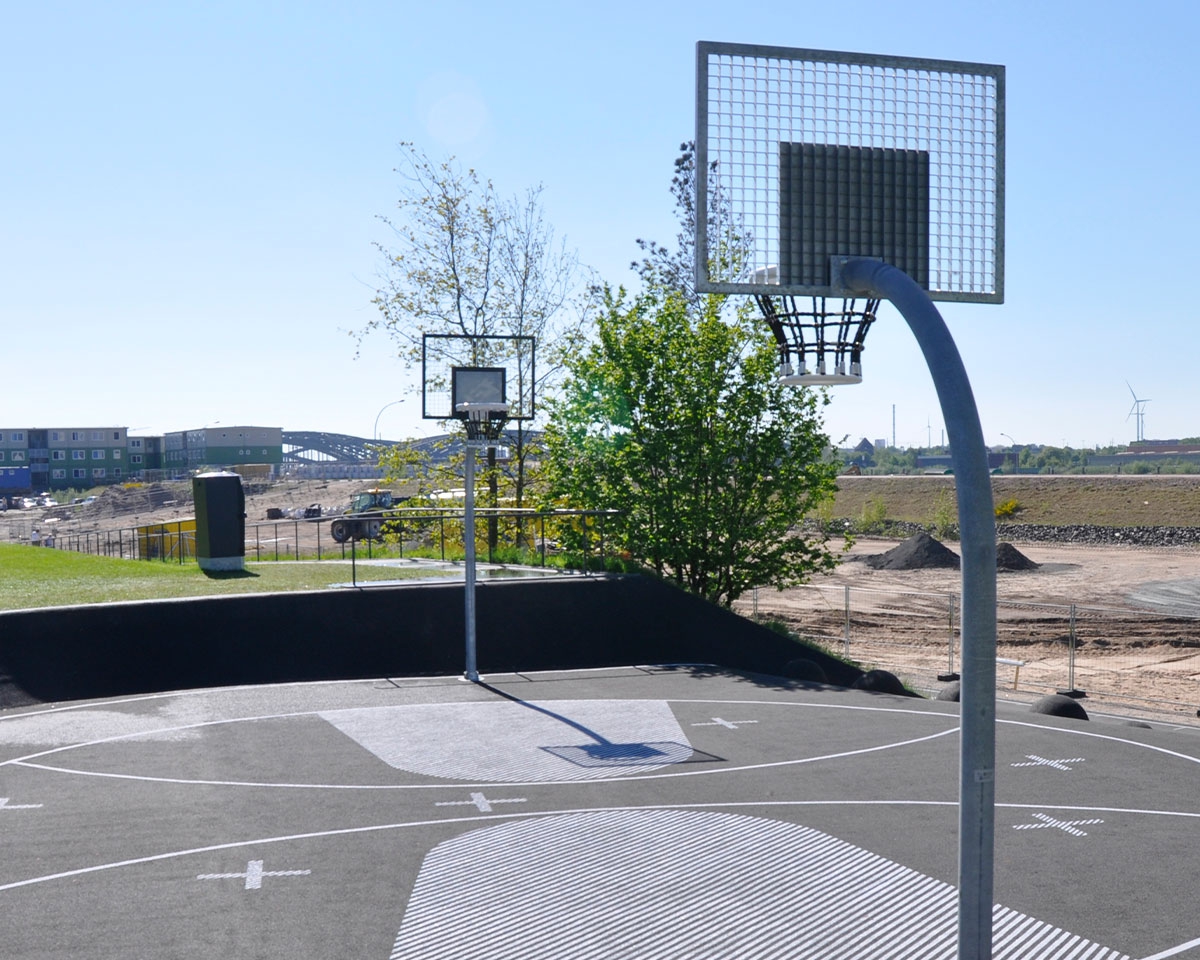

With a mast overhang extension of 1010 mm, the equipment can be used on almost any playing field. The backboard made of a hot-dip galvanized steel grid construction produces almost no noise when the ball hits the target.

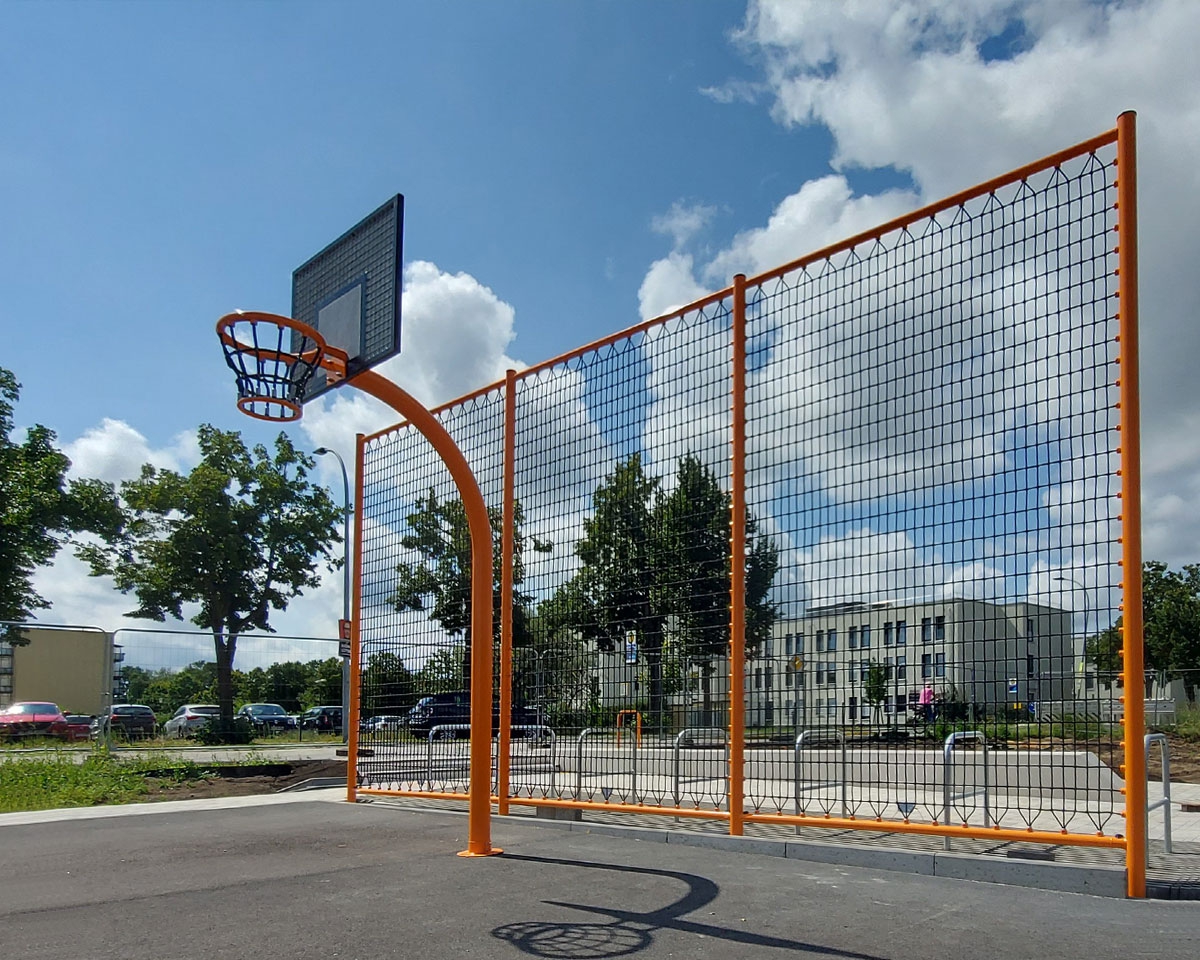

The standard hot-dip galvanized mast tube can be customized with a color coating.

The flange construction allows a foundation separate from the streetball facility. The fastening points are concealed by a screwable flange cover and can be easily reached for maintenance and inspection purposes.

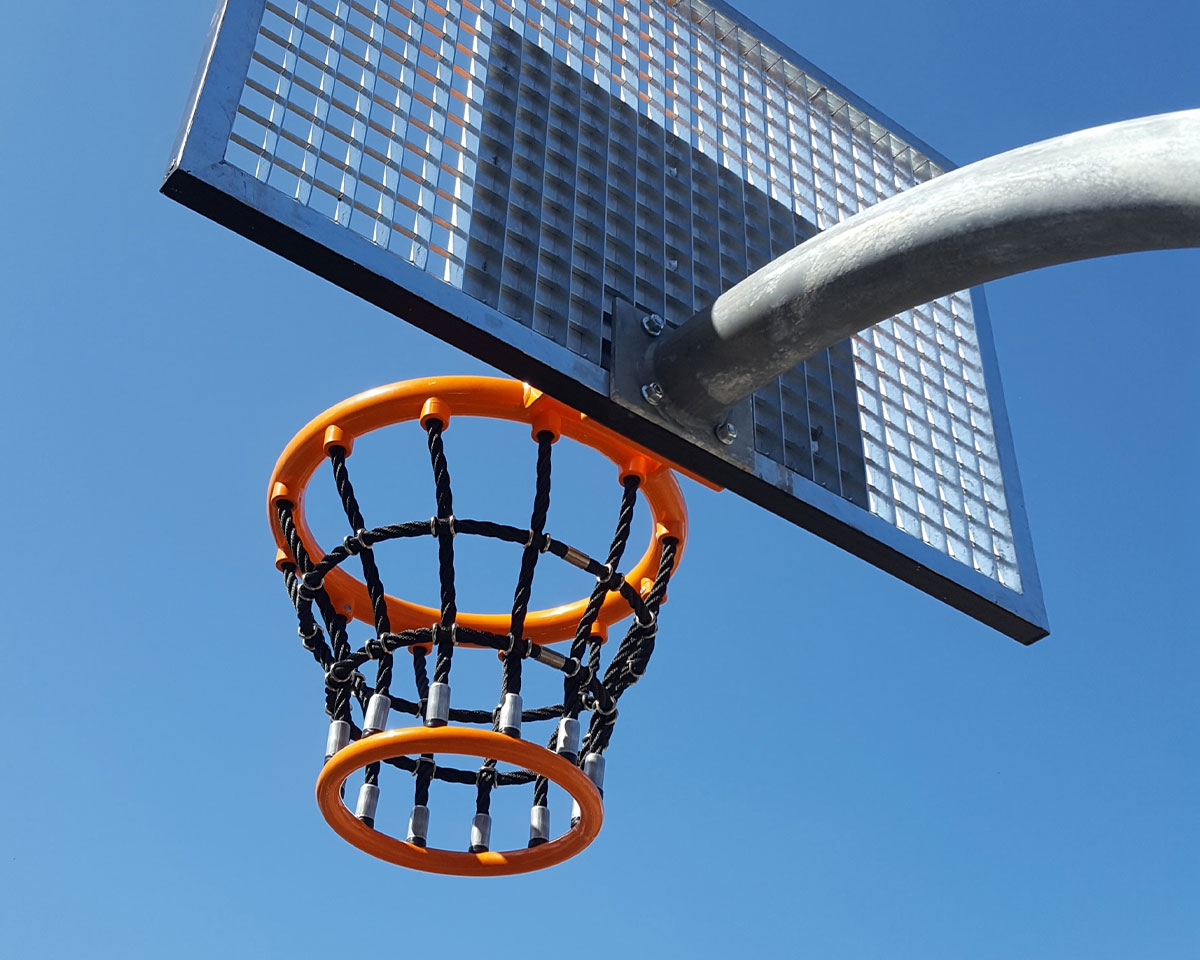

The basket upper ring is made of a Ø 48 mm steel tube and has an inner diameter of 450 mm (according to the rules). The net is made of Ø 16 mm Hercules rope with steel core.



Selectable equipment

  • SBK-01 „SBK-01“

    Art.No. 7010005
  • Korb 99 classic „99 classic“

    Art.No. 7010106
  • Standard Target board „standard“
    (90 x 120 cm)
    Art.No. 7010016
  • tournament Target board „tournament“
    (105,5 x 183 cm)
    Art.No. 7010030

Additional equipment

  • Powder coatingPowder coating
    "original"
    Art.No. 7010007
  • Powder coatingPowder coating
    "extended"
    Art.No. 7010008
  • Post protection pad Post protection pad
    with zipper
    Art.No. 7010040
  • ShorteningShortening streetball posts
    max. 60 cm
    Art.No. 7010201

Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Note: The mast of the streetball system is supplied hot-dip galvanized as standard.
A color coating is optionally available for an additional charge
.

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Selectable colors for post protection pad

  • Light blueLight blue
  • BlueBlue
  • RedRed
  • GreenGreen
  • YellowYellow
  • WhiteWhite
  • BlackBlack
  • GreyGrey
  • OrangeOrange

Features

Das Herkulesseil

The Hercules rope

Specialized ropes for specialized equipment. Find information about the structure of our ropes here.

Die ROWOCON®-Verbindung

The ROWOCON®-connection

The exclusive and optimal connection between our ropes and tubes or frames.

Flange anchoring

Flange anchoring

Our robust and durable anchoring solution.

Streetball - Der kongeniale Korb

Streetball - The congenial basket

The special feature of our streetball equipment is the basket.
