Basic 1
No. 6906011
| Grid dimension | 2.50 m |
| Height of post | 1.00 m |
| Mesh size | 60 x 120 mm |
| Heaviest component | 22 kg |
| Total weight | 76 kg |
| Foundations | 2x 0.60 x 0.60 x 0.90 m |

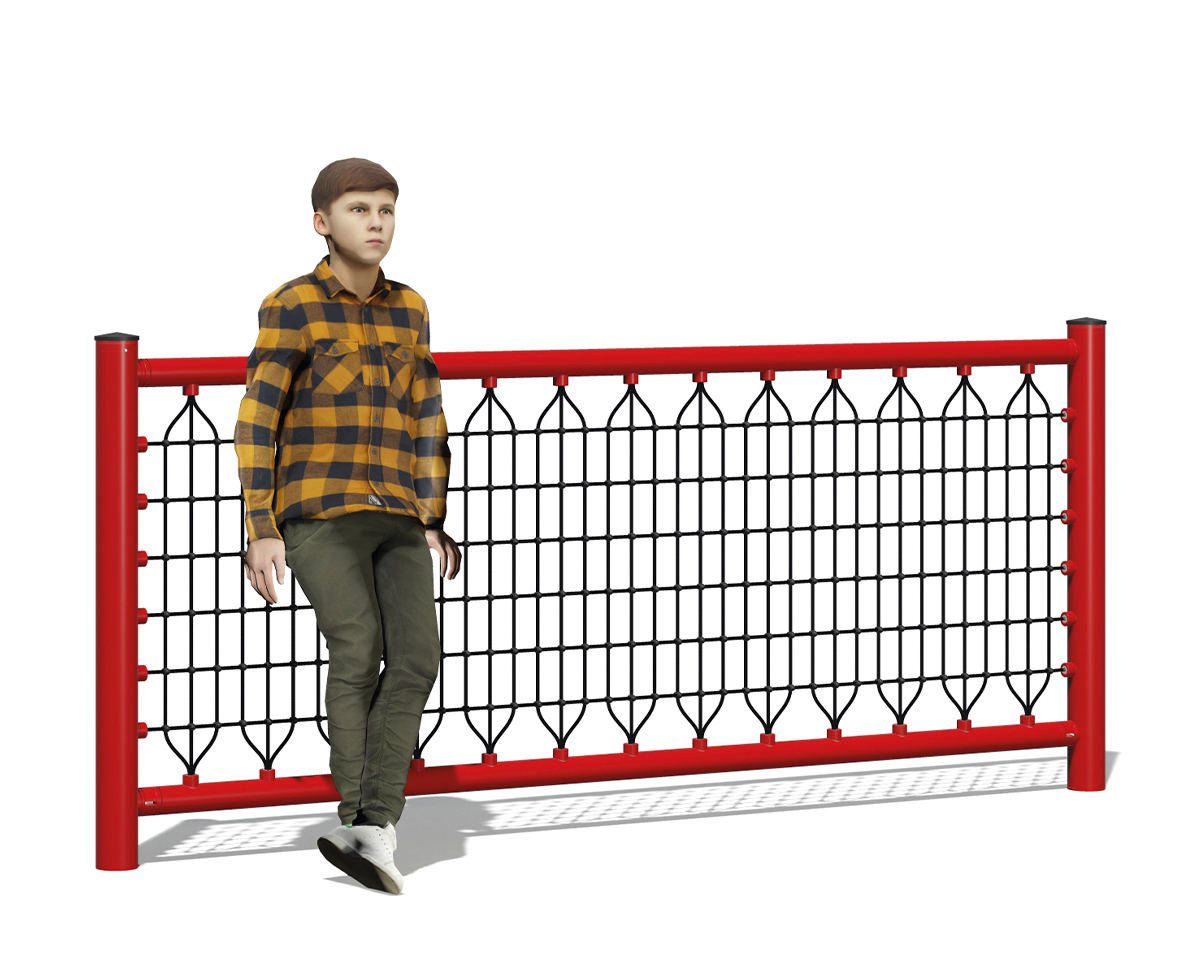

Our SILENTIQ® fence element in the basic height of 1 meter.
The SILENTIQ® basic elements are 2.50 m wide (axis to axis dimension) and are equipped with 90° or 180° angle connections, depending on planning requirements. The mesh size of the net elements is 60 x 120 mm (axis to axis dimension) and is certified by TÜV as “non-climbable”.
Special widths, heights and connection angles are possible. Please contact us if you need advice.
We will be happy to offer our advice if you have any questions in this regard. Contact possibilities can be found here.
Popular colors for steel parts
Beige
RAL 1001
Colza yellow
RAL 1021
Pastel orange
RAL 2003
Flame red
RAL 3000
Cobalt blue
RAL 5013
Distant blue
RAL 5023
Leaf green
RAL 6002
Yellow green
RAL 6018
Anthracite grey
RAL 7016
Light grey
RAL 7035
Terra brown
RAL 8028
Jet black
RAL 9005
White aluminium
RAL9006
Pure white
RAL 9010
Information: A large number of further colors of the RAL-system or other color systems are possible.
Selectable colors for ropes
Classic red
Cosmos black
Silver grey
Information: More colors on request.
