Mega beetle

No. 7216402 (Sleeve foundation), 7216502 (Flange variant)

Unit space areaØ 1.03 m
Safety space areaØ 4.03 m
Height of unit0.20 - 0.40 m
Age range3+
Number of users3
Free fall height0.20 - 0.40 m*
Heaviest component 52.58 kg
Total weight
     Sleeve foundation89.42- 94.46 kg*
     Flange variant79.94 - 84.98 kg*
Assembly time0.25 hours
Installers1 person
Foundations 0.50 x 0.50 x 0.80 m
Total quantity of concrete0.20 m³
* depending on installation height

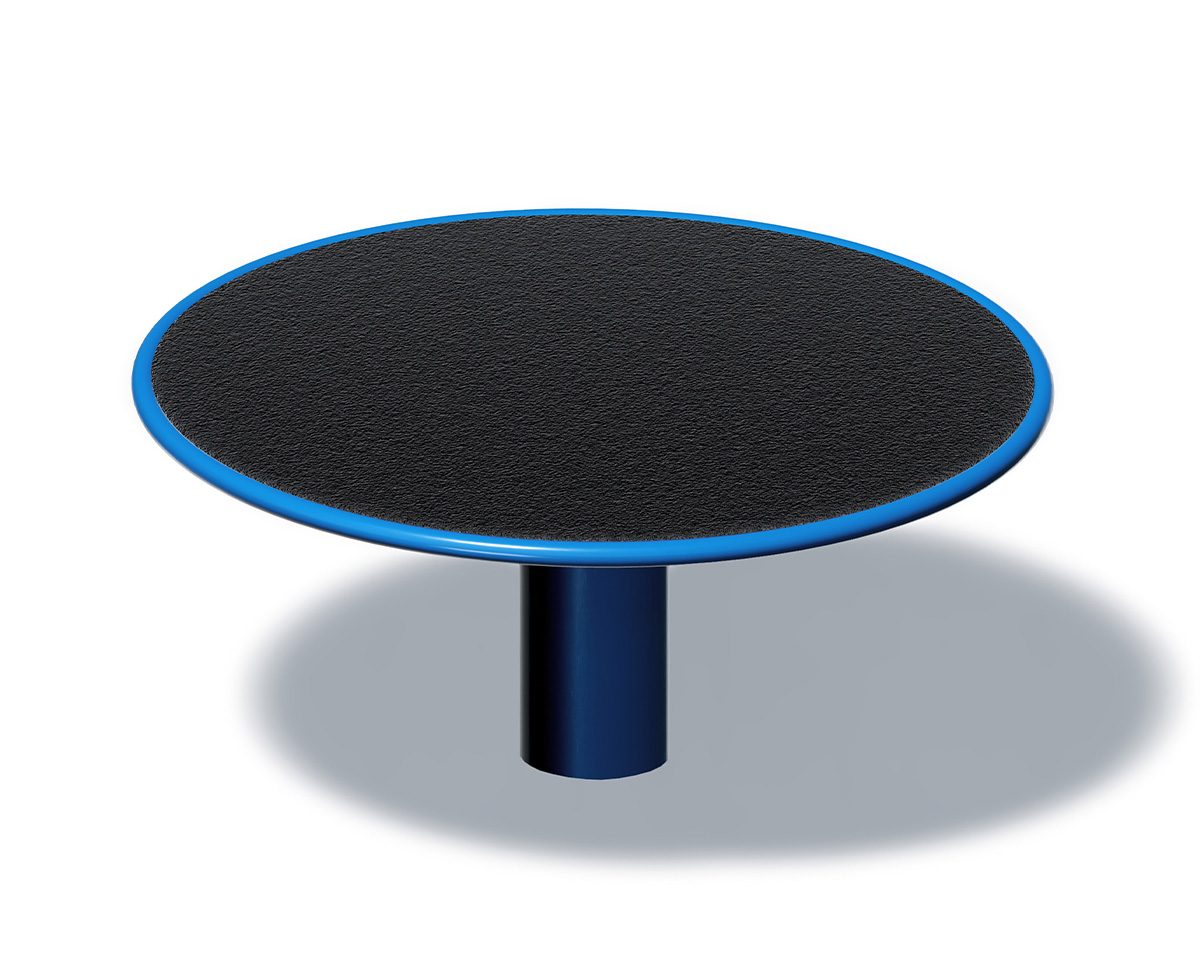

The Mega Beetle has a round base with a diameter of 1,027 mm. The surface is coated with colored rubber granulate.
The stand column made of tubular steel Ø 168.3 mm is permanently protected against corrosion by hot-dip galvanizing and subsequent powder coating in a RAL color.
