Features and characteristics
• no need for fall protection due to the low height of only 0.4 m
• the equipment can be mounted on any kind of surface
• individual elements of the CLASSIC and FLUX ropeways can be combined to form arrangements that are interesting for a wide range of ages
• the platforms are made of steel and are permanently protected against corrosion by hot dip galvanisation
• colored powder coatings ensure additional protection against corrosion and offer a wide variety of colours
• robust Hercules rope thanks to galvanized steel braid
• increased durability thanks to flexible connections
• tensioning device for perfect rope tension

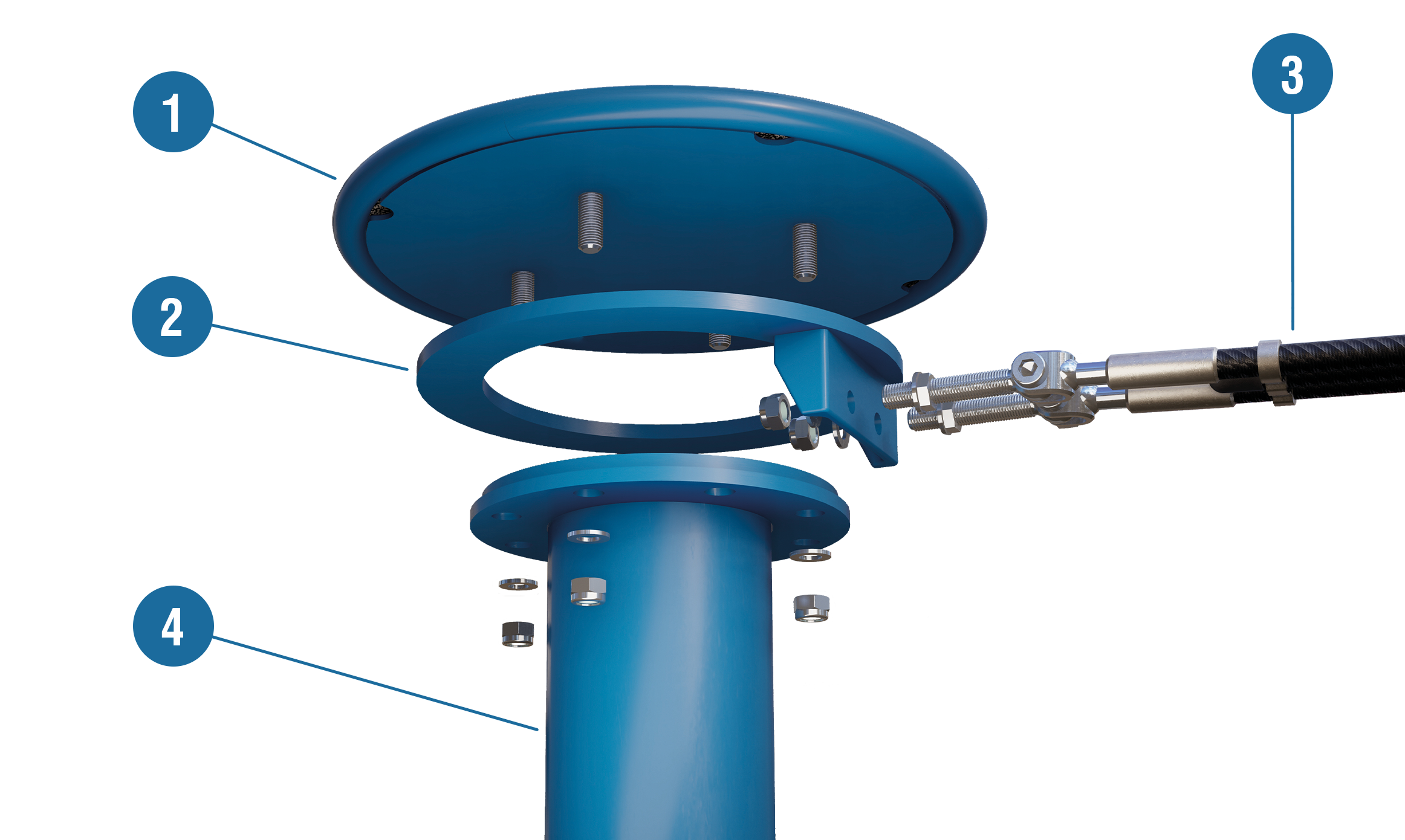

1 - The plateau plate
Our range of podium plates for the standing surface includes three different diameters: 477 mm, 700 mm and 1,000 mm. The surface of the plate is coated with rubber granulate, which ensures a firm grip.
2 - The TWIRLCON ring
The TWIRLCON ring makes the entire installation process much easier. In addition to the option of pre-assembling the ropeway outside the system, the TWIRLCON ring automatically adjusts itself when installed. This means that angular installation inaccuracies can be ignored when erecting the pillar. There is the option of attaching between one and five ropeways to the TWIRLCON ring. The minimum angle between two connecting profiles is 72°.
3 - The ropeway
The ropeway consists of robust Hercules ropes that are connected to each other using special aluminum press clamps. Flexible connecting elements are attached to the ends to prevent kinking and thus premature wear. You can choose between the Original, Duplex or Cross ropeway variants.
4 - The flanger
We offer the flange column in two versions: for setting in concrete using a sleeve foundation or alternatively as a flange version. The column has a diameter of 168 mm and is permanently protected against corrosion thanks to hot-dip galvanizing with subsequent powder coating.
