Mont Blanc variant 1
No. 3053018
| Unit space area | 7.27 x 10.33 m |
| Safety space area | 11.11 x 13.69 m |
| Height of unit | 5.48 m |
| Age range | 5+ |
| Number of users | 64 |
| Free fall height | 2.39 m |
| Heaviest component | 150 kg |
| Total weight | 961 kg |
| Assembly time | 7.00 hours |
| Installers | 3 persons |
| Foundations | |
| Basic unit | anchor frame |
| Additional elements | 1 (0.60 m³ total quantity of concrete) |
Mont Blanc variant 1 consisting of the following individual components:

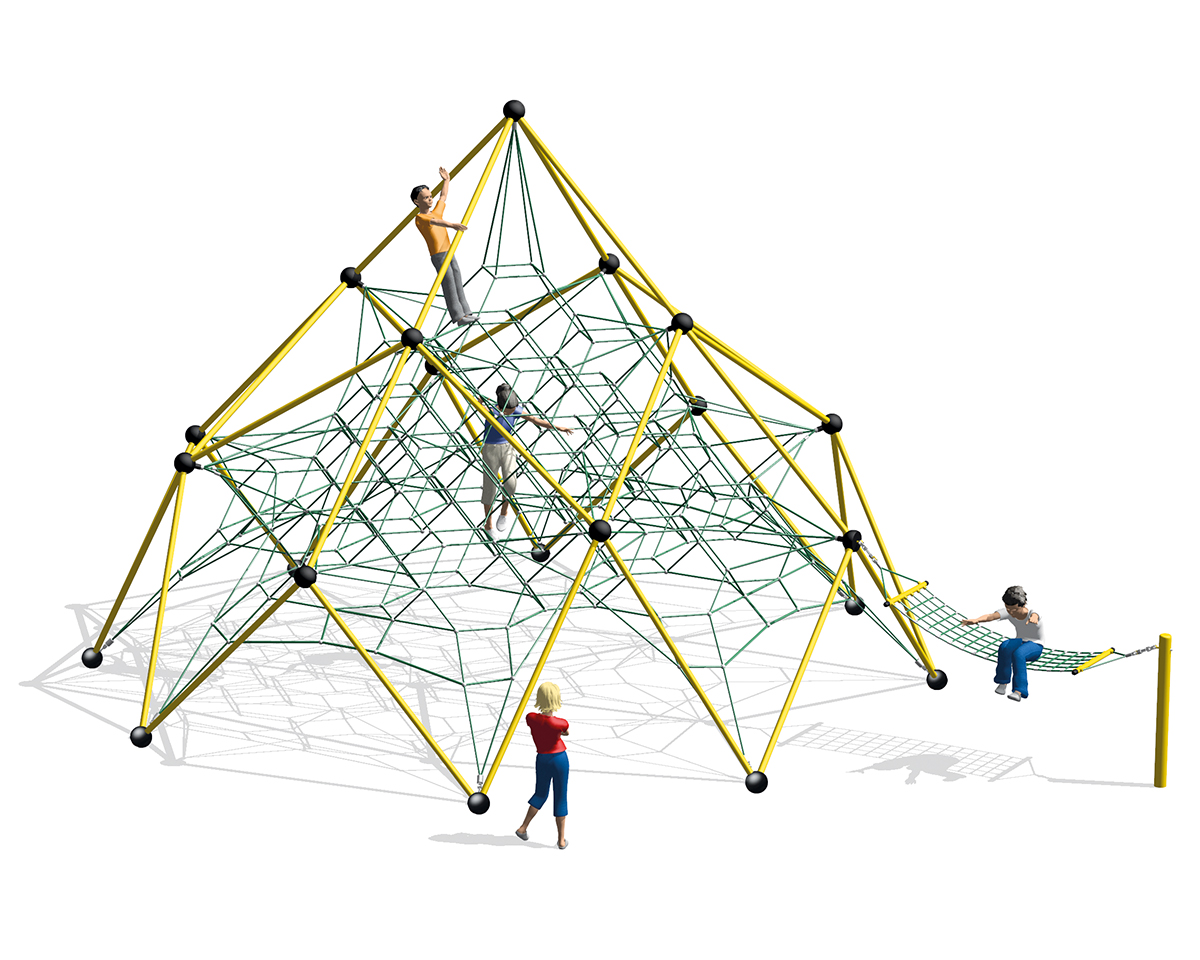

With a height of 5.50 m and an outer diameter of 8.10 m at the playing level, the basic version, the Mont Blanc, already has a very large playing volume.
An openly designed spacenet structure allows unhindered playing pleasure.
The assemblyt of the hammock swing adds variety and comfort.
With this unit is a fast and easy installation through the anchor frame possible.
More information about the anchor frame
Popular colors for steel parts
Beige
RAL 1001
Colza yellow
RAL 1021
Pastel orange
RAL 2003
Flame red
RAL 3000
Cobalt blue
RAL 5013
Distant blue
RAL 5023
Leaf green
RAL 6002
Yellow green
RAL 6018
Anthracite grey
RAL 7016
Light grey
RAL 7035
Terra brown
RAL 8028
Jet black
RAL 9005
White aluminium
RAL9006
Pure white
RAL 9010
Information: A large number of further colors of the RAL-system or other color systems are possible.
Selectable colors for ropes
Classic red
Missouri green
Royal blue
Cosmos black
Silver grey
Nature
Autumn yellow
Additional elements Mont Blanc
Seat net large
Net trough
Hand over hand loop rope
V-bridge
Jungle bridge
Slide large, straight
Slide large, left or right curve
colorballs
Hammock swing
