Liana park

No. 7218015

Number of users2 per meter
Assembly time0.25 hours
Installers1 person
Lengthup to 5.00 m
Foundationsper vertical rope 0.40 x 0.40 x 0.40 m
Total quantity of concreteper vertical rope 0.07 m³

Suitable for Adventure Park Bambino and Junior.

The liana park consists of robust Hercules ropes of Ø 18 mm and Ø 20 mm each with galvanized steel strands and a durable and easy-to-grip yarn sheath made of polyamide or polyester.

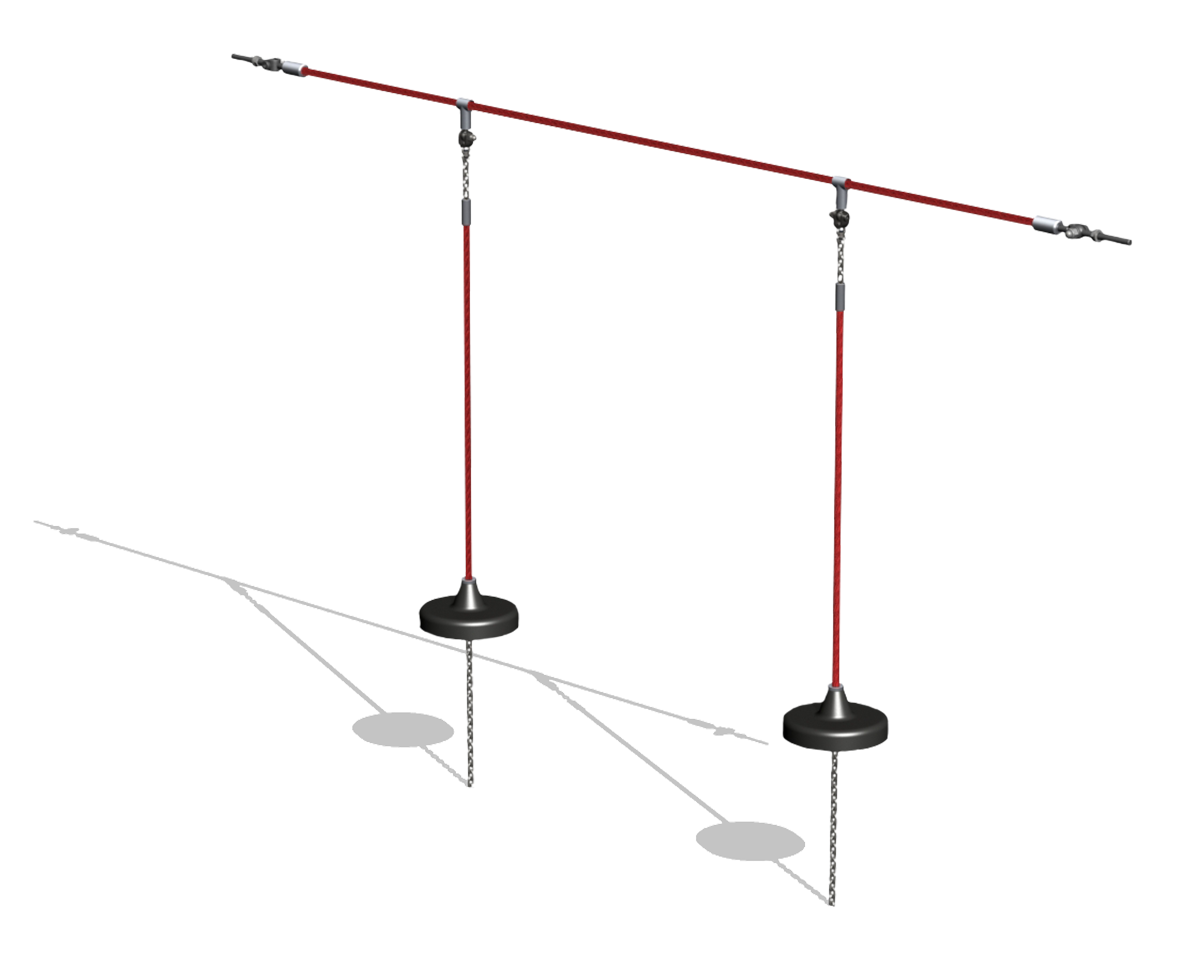

The element consists of a horizontal rope and two pendulum seats. The seats are made of rubber.

For the Adventure Park product series, we have further developed our proven SECUCOPE® PLUS tensioning system with fork eye bolt. It offers the advantage that the optimum degree of pretensioning can be set for each individual rope element between the posts. Furthermore, the rope elongation due to use can be compensated at the following maintenance intervals.

Depending on the production length, the liana park is suitable for a post spacing of up to 5.00 m (post center - post center).

Welcome to new adventures! Build your own Adventure Park - with your ideas and our experiences!

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow
