Har Meron²

No. 3040014

Unit space area5.85 x 11.51 m
Safety space area8.86 x 14.51 m
Height of unit4.19 m
Age range4+
Number of users62
Free fall height2.19 m
Heaviest component85 kg
Total weight1052 kg
Assembly time7.00 hours
Installers3 persons
Foundations
Basic unitanchor frame

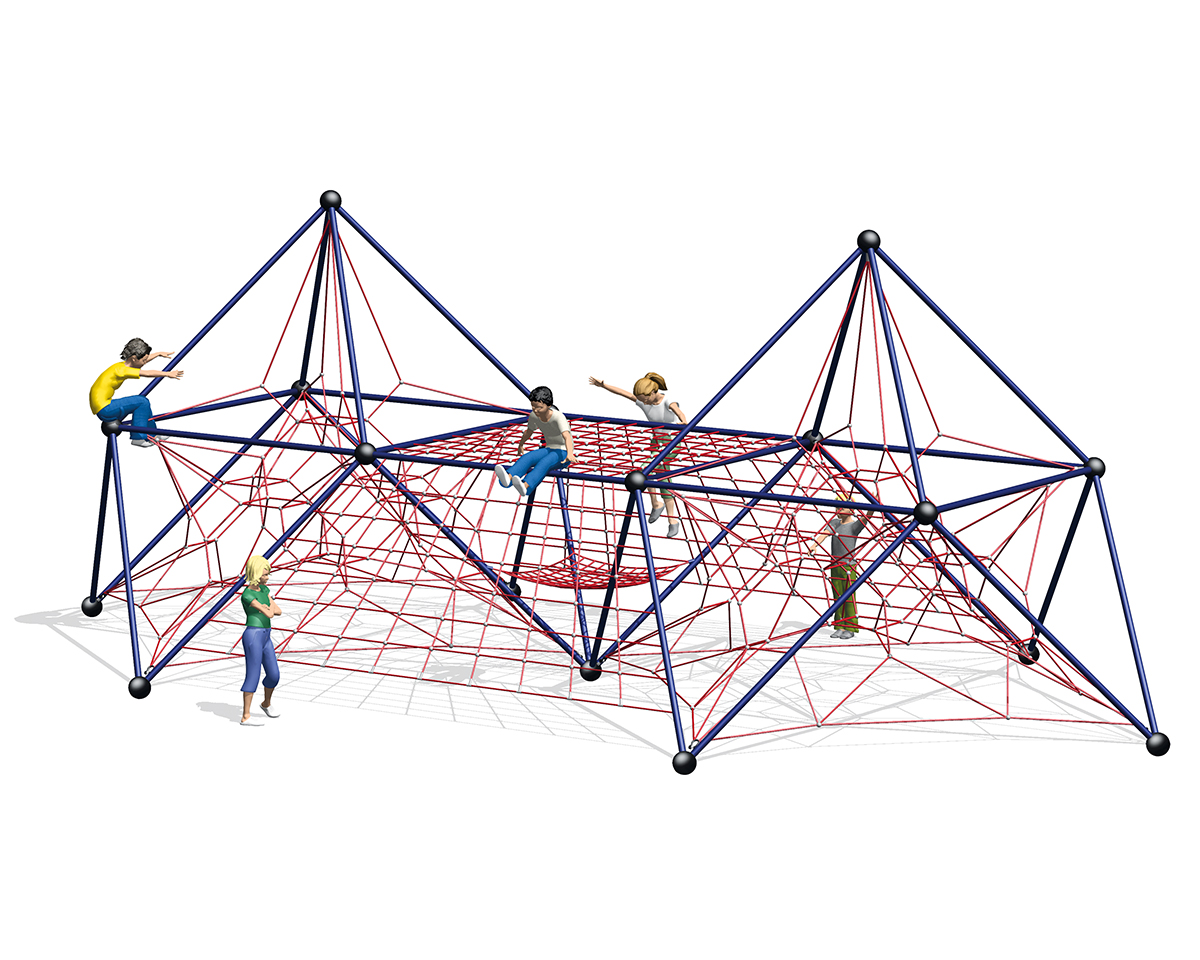

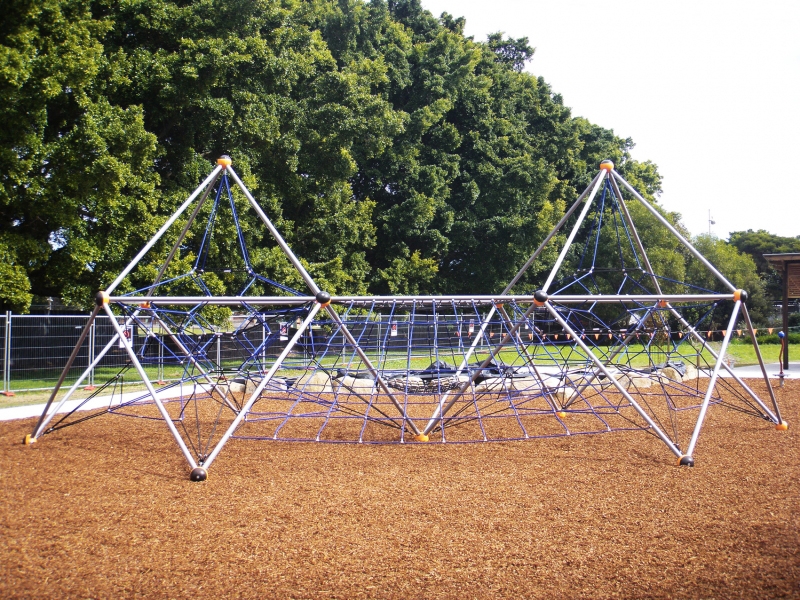

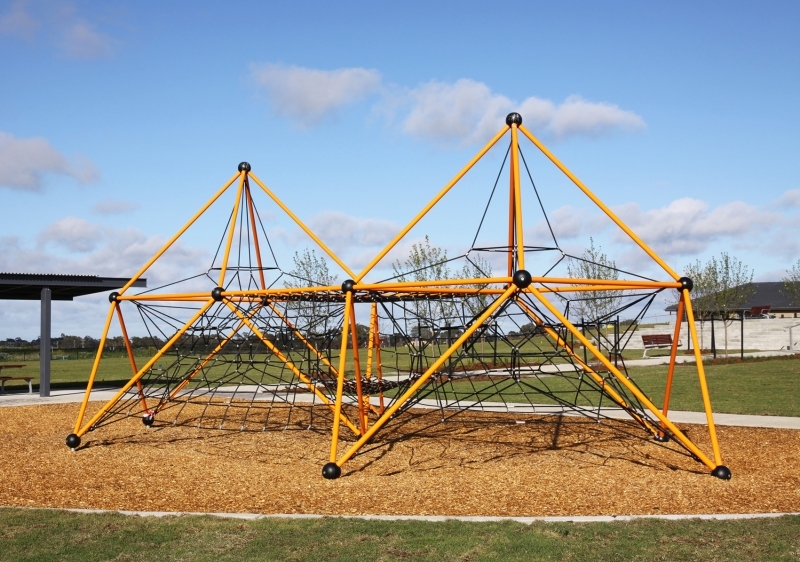

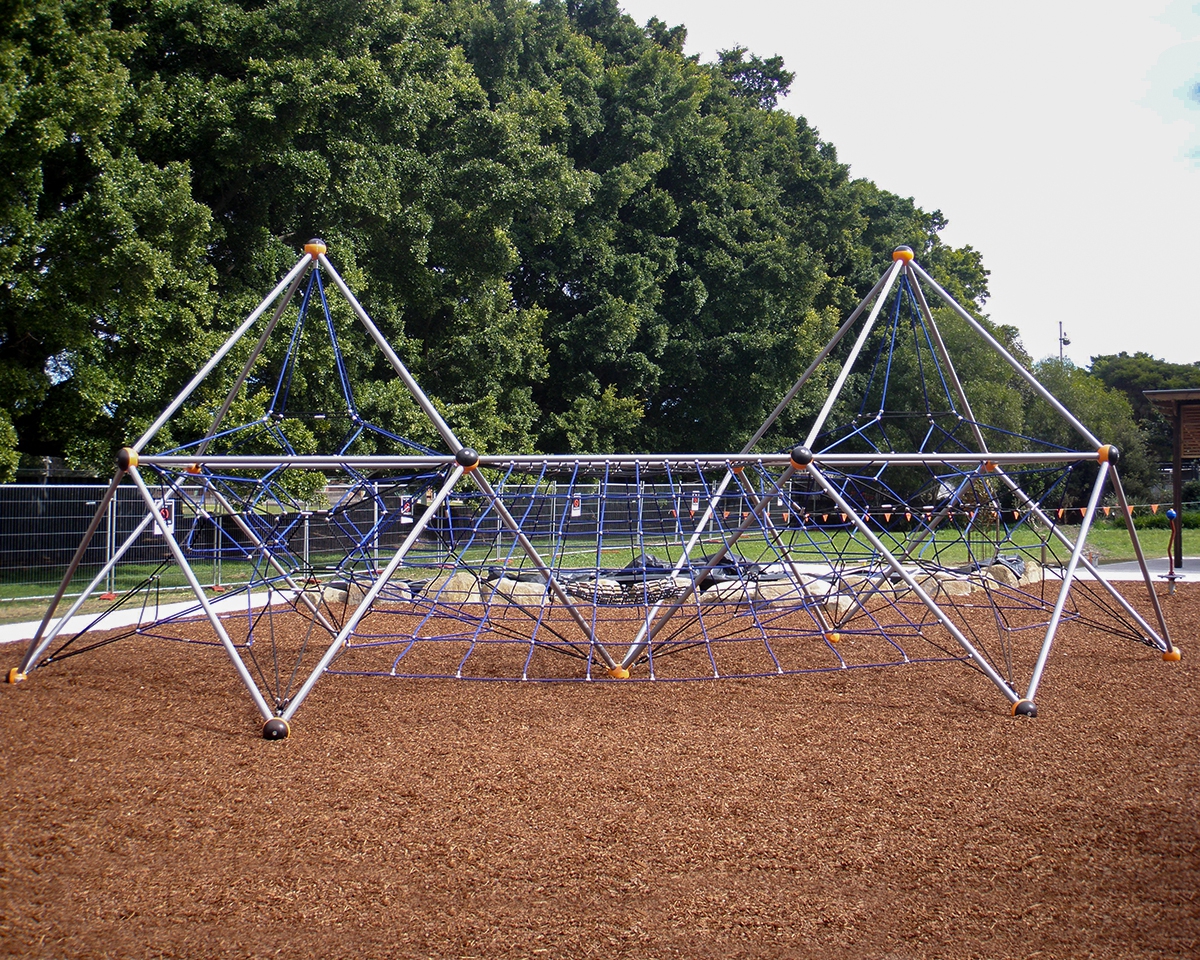

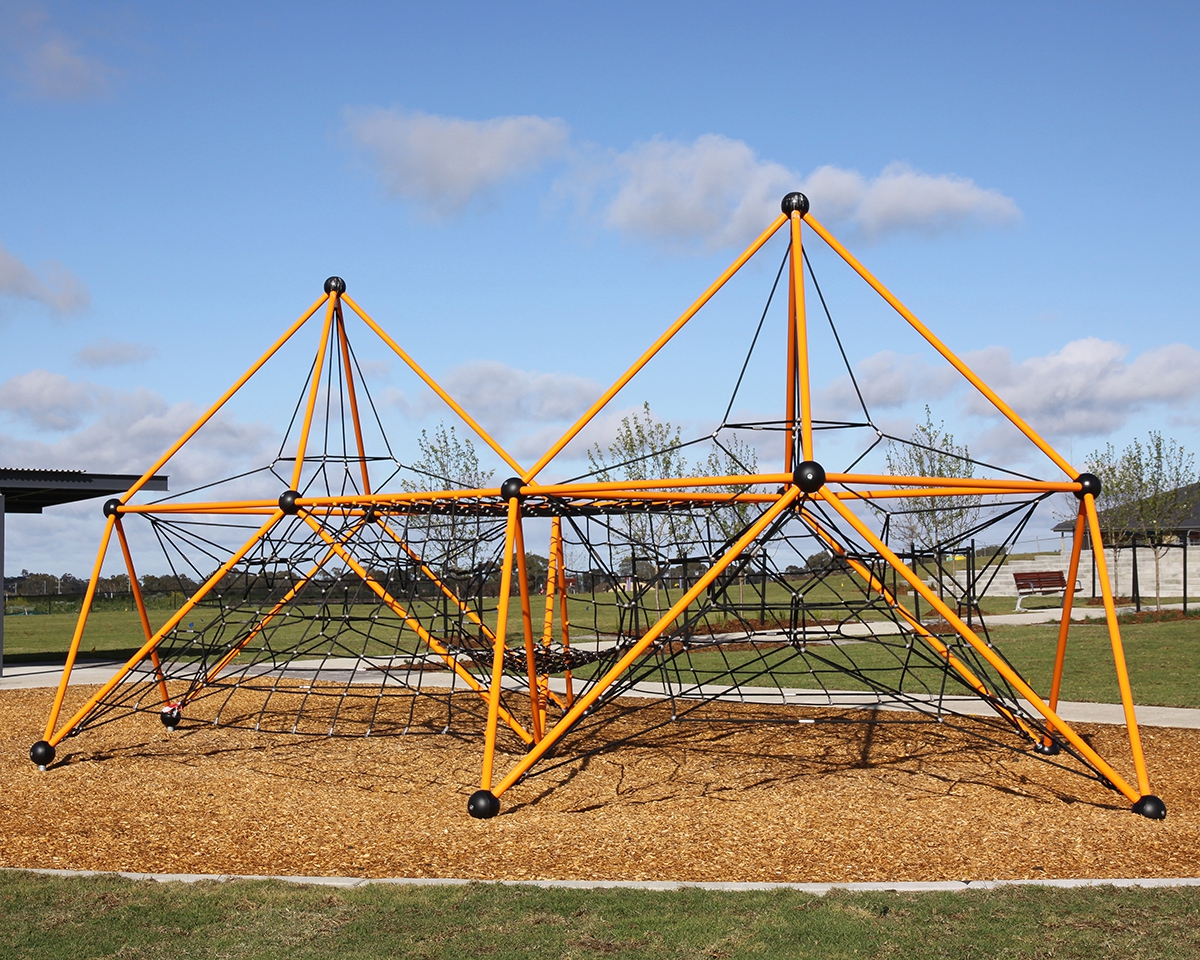

Two Har Meron placed next to each other results in a special kind of game combination.

The junctions of the middle level were connected by tubes and the resulting area was filled with a large-meshed surface net.

Climbing nets lead up from below on both sides.

Furthermore, in the lower area, a close-meshed lying net invites to stay.



anchor frameWith this unit is a fast and easy installation through the anchor frame possible.

More information about the anchor frame





Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Additional elements Har Meron

  • Seat net smallSeat net small


  • Hand over hand loop ropeHand over hand loop rope


  • colorballscolorballs


  • Hammock swingHammock swing


  • Lying matLying mat


Features

Design und Funktion

Design and function

Impressively functional! Find out what makes our framework units so special.

Herkulesseil

Hercules rope

The heart of everything!

Learn more about our climbing rope.

SECUCOPE® Spannsystem

SECUCOPE® tensioning system

Interesting facts about the installation of the SECUCOPE® tensioning system.

Ankerrahmen

Anchor frame

Simplified installation without foundations - find out more about our anchor frame.

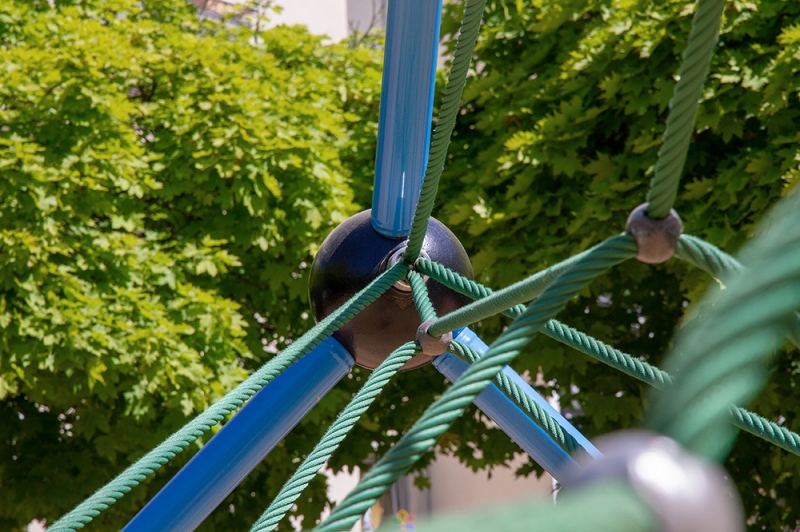

smb-Aluminium-Kugelknoten

smb aluminium ball knot

We introduce you to the ideal connecting element

of crossing ropes.
