Football goal medi
No. 7040010 (Goal) + No. 7040101 (Ground anchor)
| Unit space area | 2.38 x 0.79 m |
| Height of unit | 1.57 m |
| Mesh size | 40 x 130 mm |
| Heaviest component | 114 kg |
| Total weight | 140 kg |
| Assembly time | 0.50 hours |
| Installation personnel | 2 persons |
| Foundations | 2x 1.00 x 0.40 x 0.50 m |

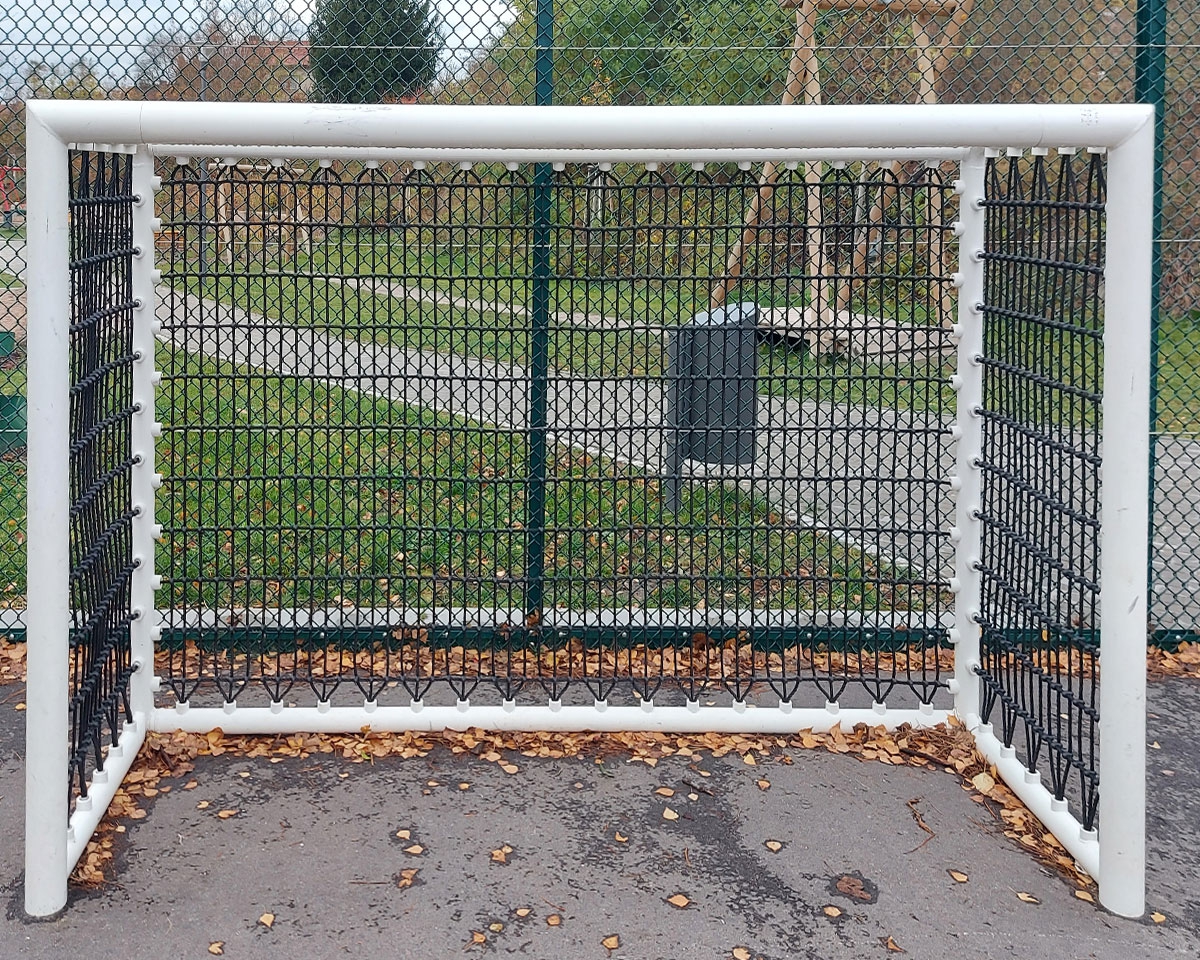

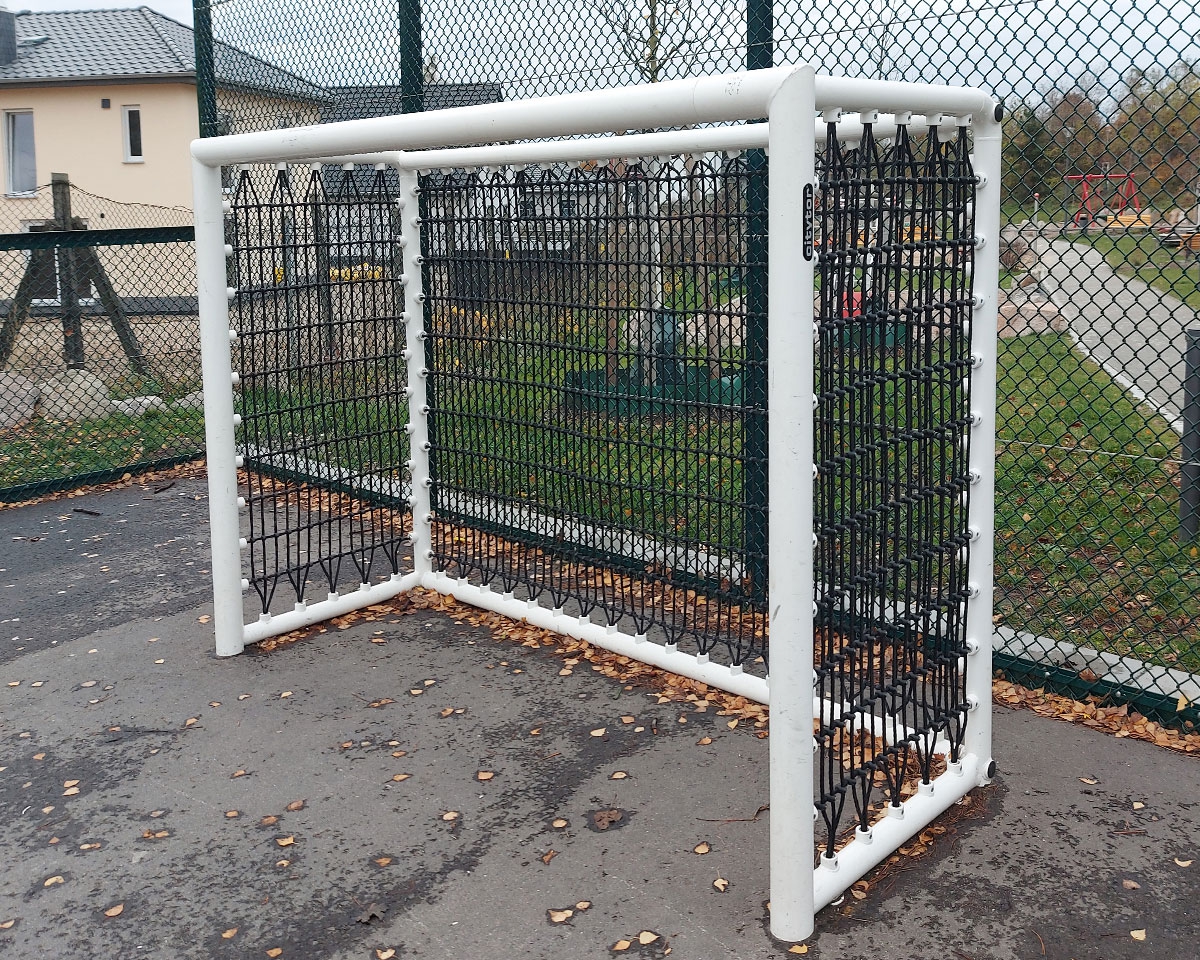

The football goal medi consists of:
1x Football goal citytor® medi (No. 7040010)
1x Set of Ground anchor (No. 7040101), for one goal
Our goals are hard to beat in terms of quality and noise reduction.
The extremely sturdy tubular steel frame is galvanized against corrosion and then powder coated, so you can match the color of the goal with your unique project.
For the side and rear nets, we use 8 mm Hercules rope with a mesh size of approximately 35 mm (horizontal) x 120 mm (vertical). There is no net in the roof area due to the requirements of the DIN EN 15312 standard.
The smb elliptical nodes connect the rope crossing points and the smb ROWOCON® sleeves ensure a secure connection between the frame and the net.
The goal is bolted to the ground using the quick&easy ground anchors. The screw connections used for fasten-ing are invisible and protected in the tubular frame!
Popular colors for steel parts
Beige
RAL 1001
Colza yellow
RAL 1021
Pastel orange
RAL 2003
Flame red
RAL 3000
Cobalt blue
RAL 5013
Distant blue
RAL 5023
Leaf green
RAL 6002
Yellow green
RAL 6018
Anthracite grey
RAL 7016
Light grey
RAL 7035
Terra brown
RAL 8028
Jet black
RAL 9005
White aluminium
RAL9006
Pure white
RAL 9010
Information: A large number of further colors of the RAL-system or other color systems are possible.
Selectable colors for ropes
Classic red
Cosmos black
Silver grey
Information: More colors on request.
