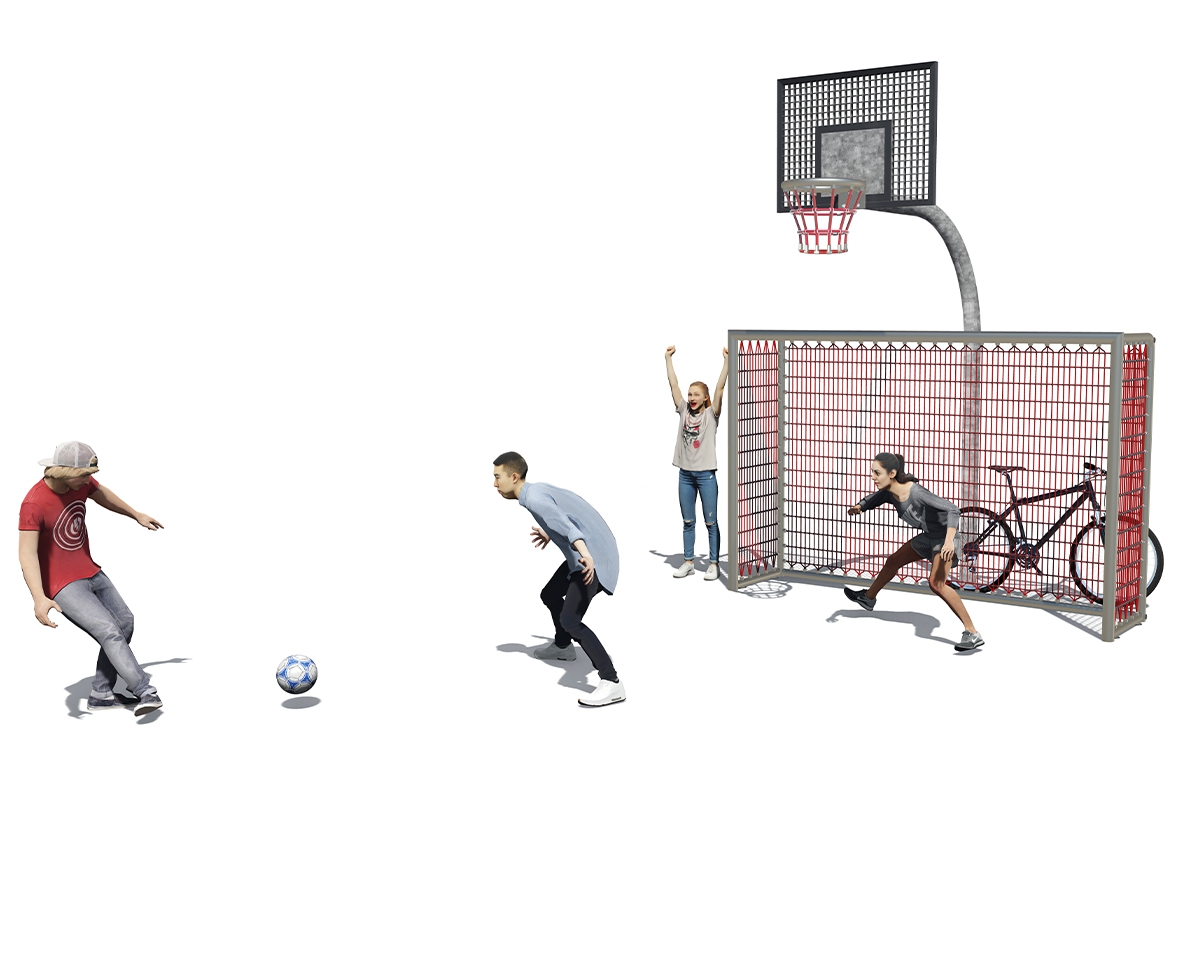

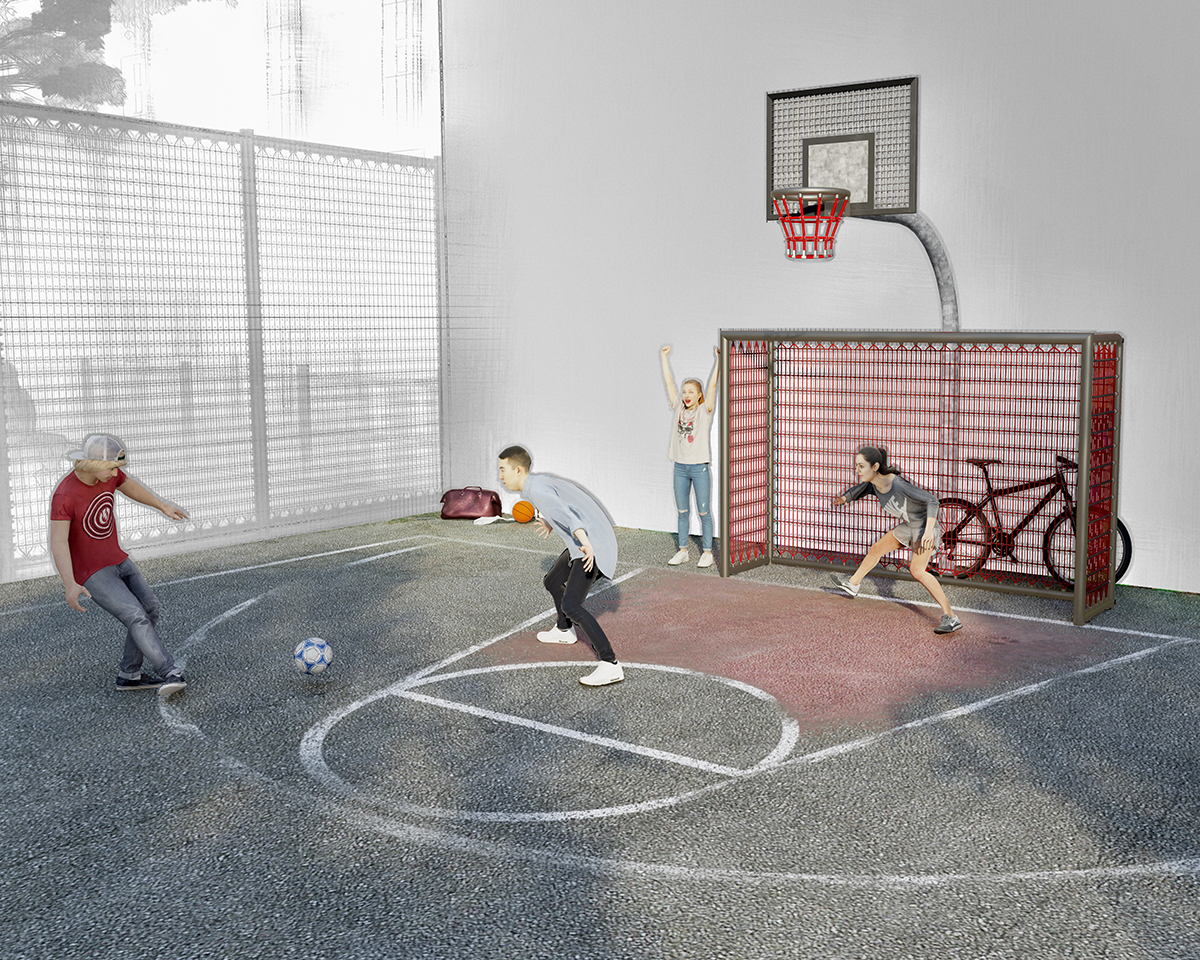

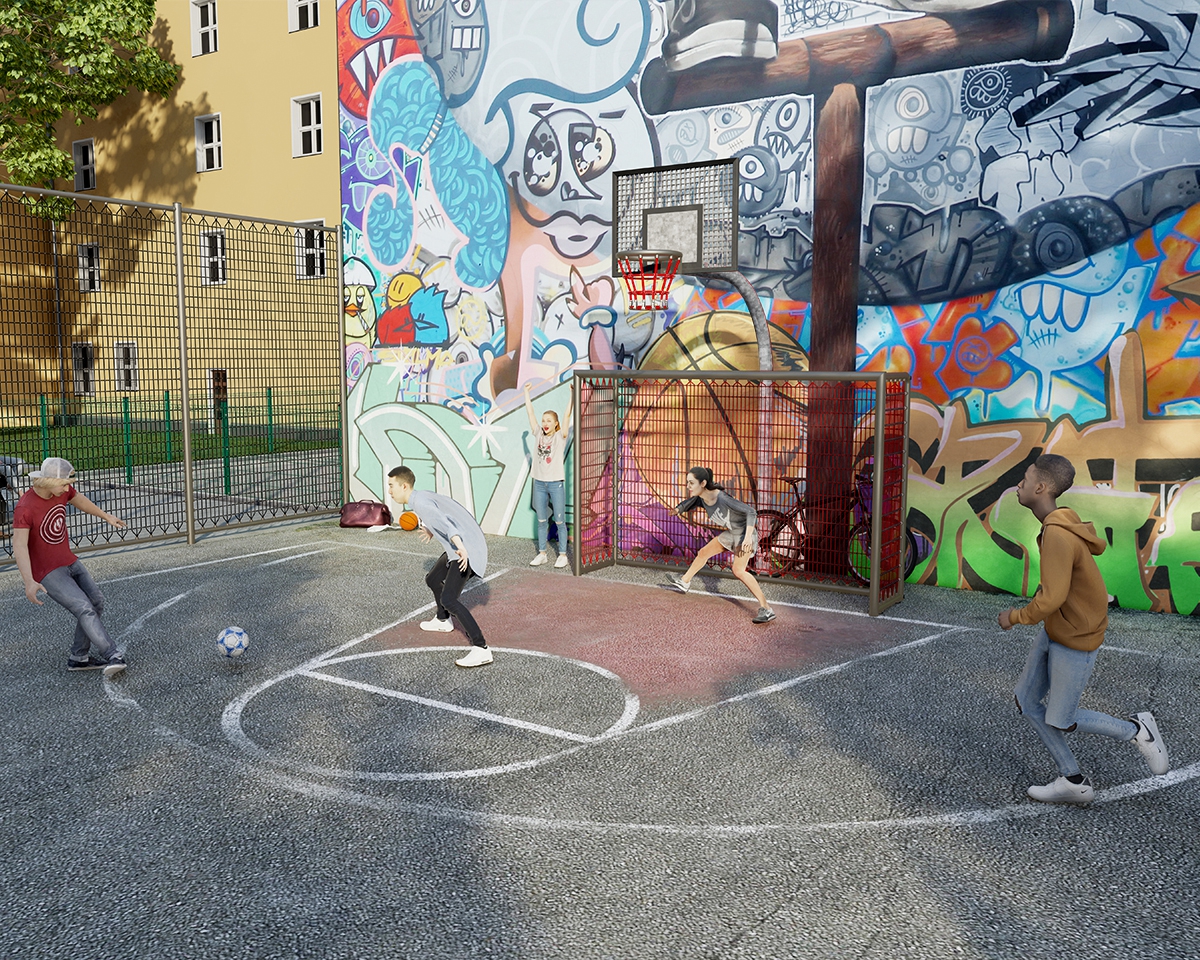

Football goal combi equipment

No. 7050011 (combi equipment) + No. 7010005 / 7010106 (Basket) + No. 7040101 (ground anchor) + No. 7010002602 (flange anchor)

Unit space area	3.16 x 2.59 m
Height of unit	3.80 m
Mesh size	40 x 130 mm
Basket ring height	3.05 m
Backboard dimensions	1.20 x 0.90 m
Heaviest component	149 kg
Total weight	280 kg
Assembly time	1.50 hours
Installation personnel	2 persons
Foundations
Football goal	2x 1.00 x 0.40 x 0.50 m
Streetball equipment	1x 1.00 x 1.10 x 1.10 m

The football goal combi equipmente consists of:
1x Football goal combi equipment, without strettball basket (No. 7050011)
1x Basket (Variant selectable, image shows „99 classic“ (No. 7010106), alternatively: „SBK-01“ (No. 7010005))
1x Set of Ground anchor (No. 7040101), for one goal
1x Flange anchor for streeball equipment (No. 7010002602)
optional:
1x Post and flange cover additionally powder-coated to RAL classic (No. 7010007)

Our goals are hard to beat in terms of quality and noise reduction.

The extremely sturdy tubular steel frame is galvanized against corrosion and then powder coated, so you can match the color of the goal with your unique project.
For the side and rear nets, we use 8 mm Hercules rope with a mesh size of approximately 35 mm (horizontal) x 120 mm (vertical). There is no net in the roof area due to the requirements of the DIN EN 15312 standard.

The smb elliptical nodes connect the rope crossing points and the smb ROWOCON® sleeves ensure a secure connection between the frame and the net.

The goal is bolted to the ground using the quick&easy ground anchors. The screw connections used for fasten-ing are invisible and protected in the tubular frame!
