Dufourspitze variant 3

No. 3042021

Unit space area5.86 x 8.72 m
Safety space area9.52 x 12.04 m
Height of unit4.43 m
Age range5+
Number of users40
Free fall height1.95 m
Heaviest component110 kg
Total weight813 kg
Assembly time6.50 hours
Installers3 persons
Foundations
Basic unitanchor frame
Additional elements1 (0.60 m³ total quantity of concrete)

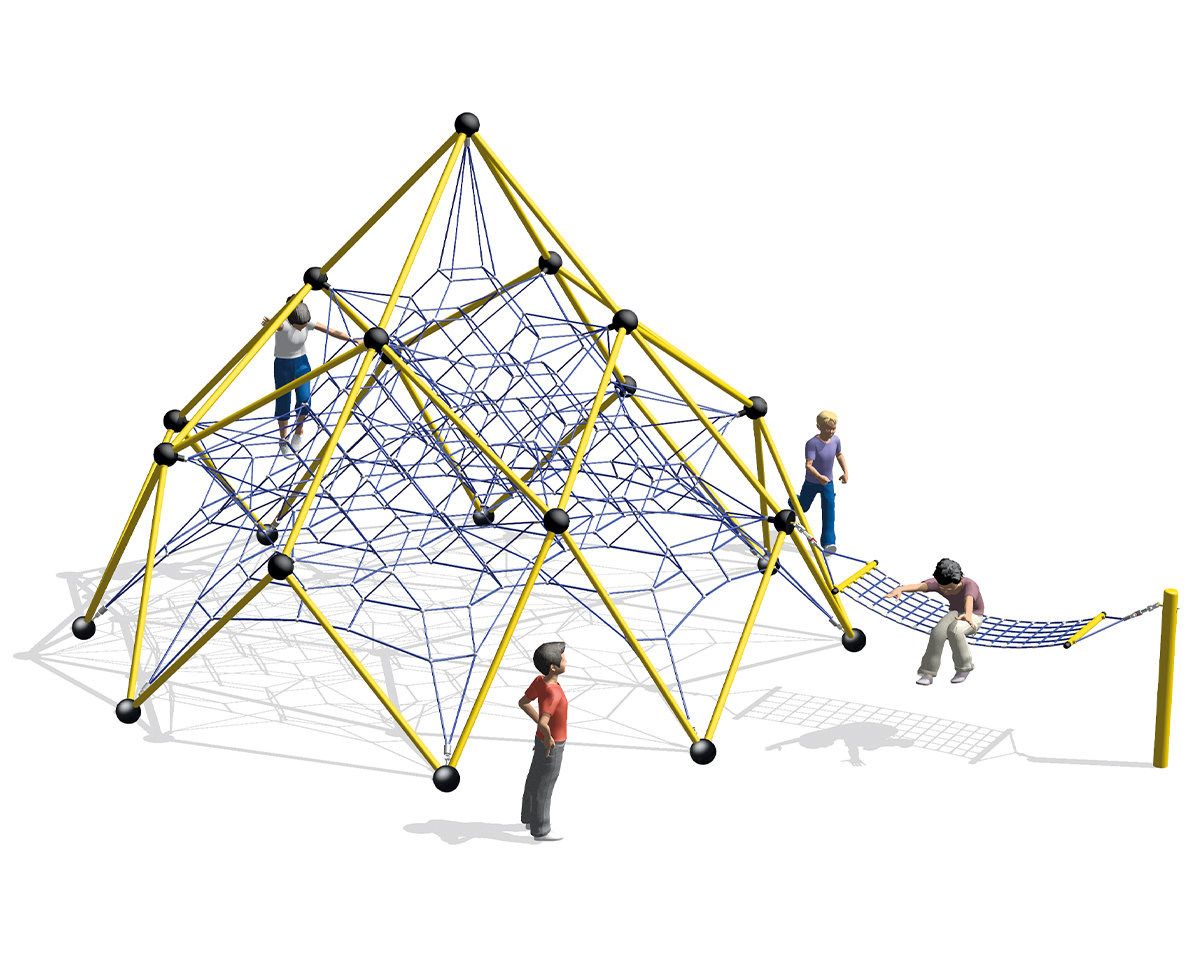

Dufourspitze variant 3 consisting of the following individual components:

1 Basic unit
1 Hammock swing

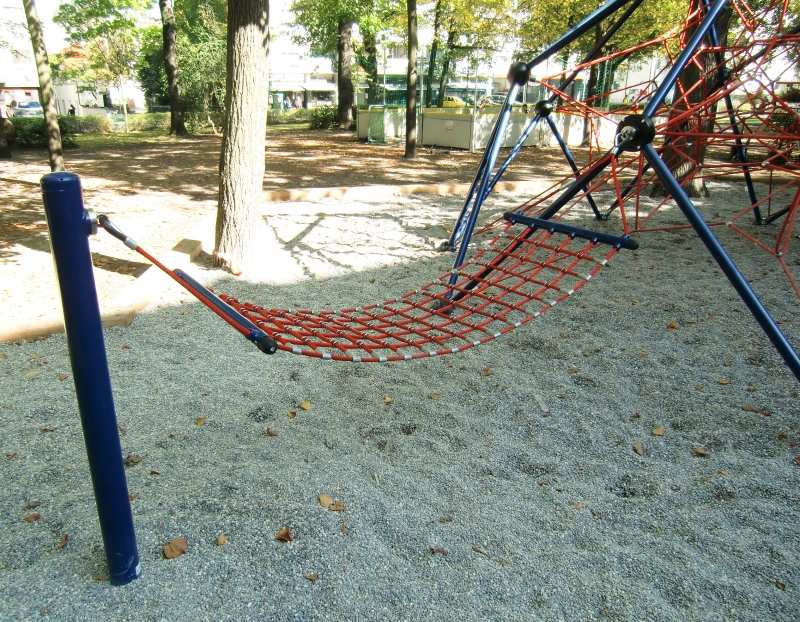

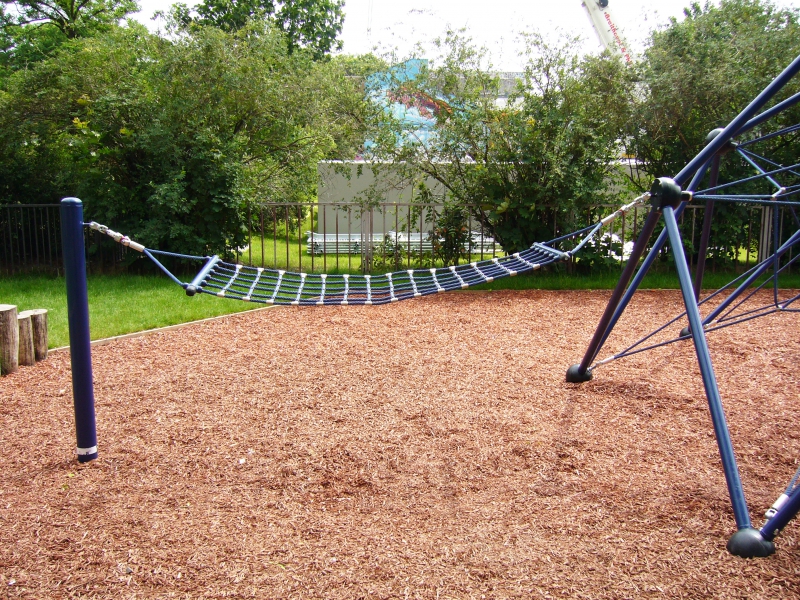

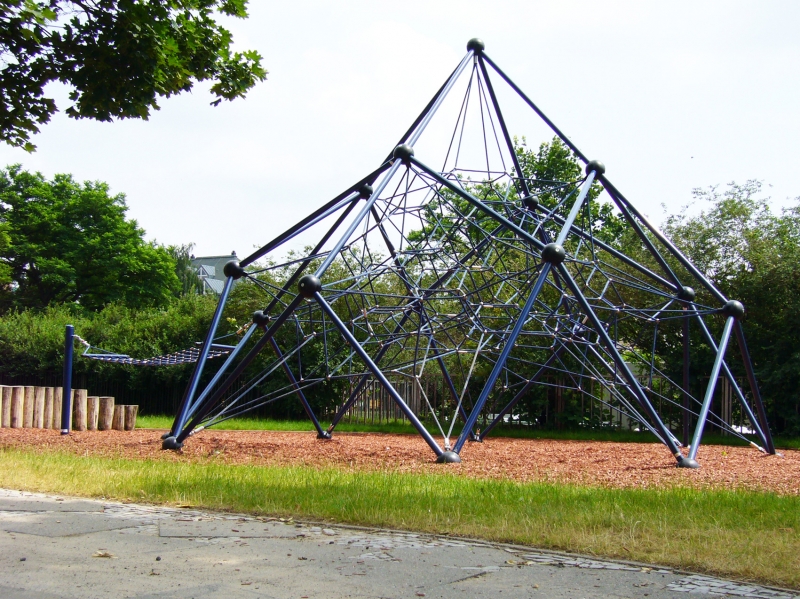

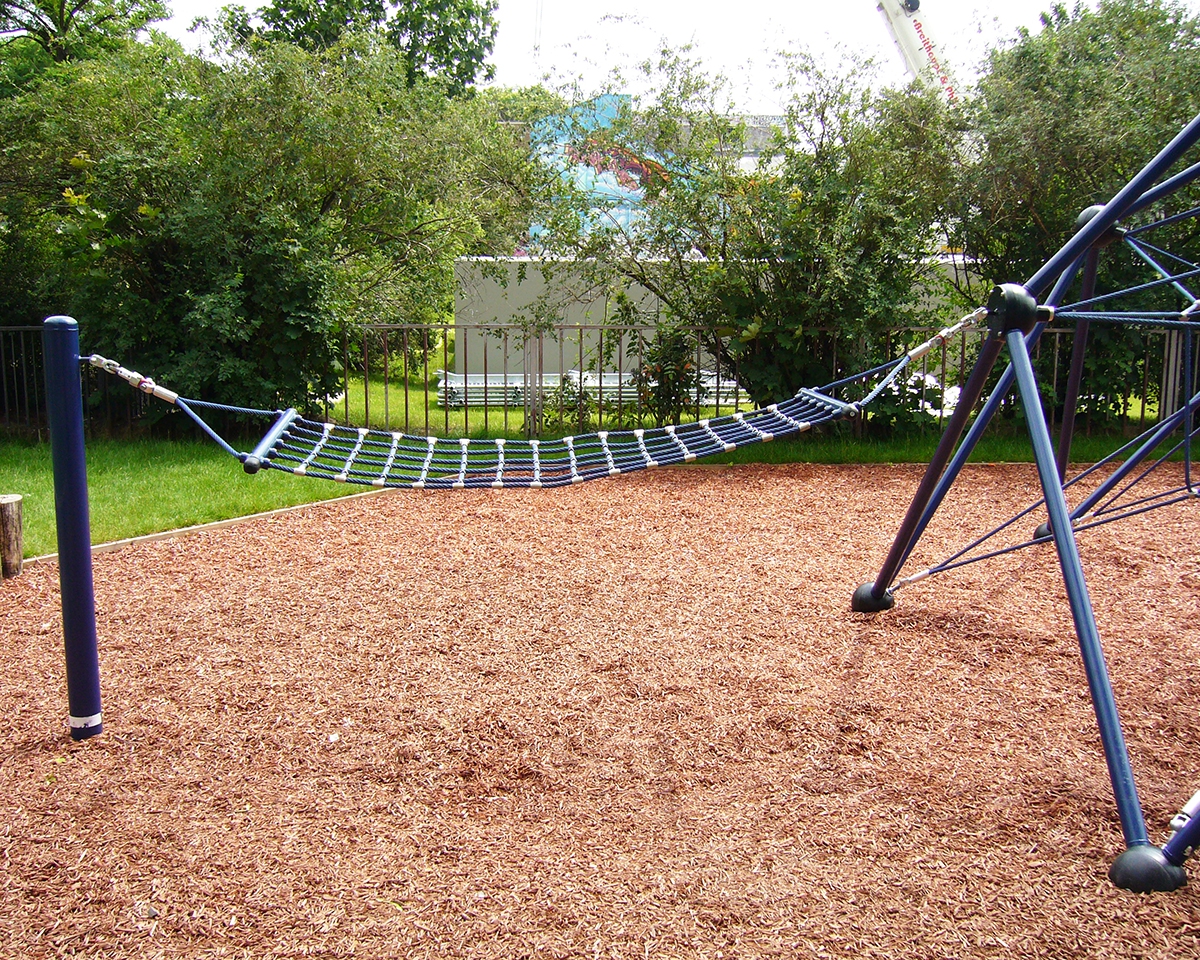

The Dufourspitze variant 3 offers plenty of space for climbing and an externally attached hammock swing, which is a great place to relax.

The rope crossing points of the hammock swing are fixed by stainless steel clamps, which are extremely robust and at the same time very inconspicuous in their dimensions.

They allow you to lie comfortably without unpleasant back pressure.



anchor frameWith this unit is a fast and easy installation through the anchor frame possible.

More information about the anchor frame





Popular colors for steel parts

  • RAL1001Beige
    RAL 1001
  • RAL1021Colza yellow
    RAL 1021
  • RAL2003Pastel orange
    RAL 2003
  • RAL3000Flame red
    RAL 3000
  • RAL5013Cobalt blue
    RAL 5013
  • RAL5023Distant blue
    RAL 5023
  • RAL6002Leaf green
    RAL 6002
  • RAL6018Yellow green
    RAL 6018
  • RAL7016Anthracite grey
    RAL 7016
  • RAL7035Light grey
    RAL 7035
  • RAL8028Terra brown
    RAL 8028
  • RAL9005Jet black
    RAL 9005
  • RAL9006White aluminium
    RAL9006
  • RAL9010Pure white
    RAL 9010


Information: A large number of further colors of the RAL-system or other color systems are possible.

Selectable colors for ropes

  • ClassicrotClassic red
  • MissourigruenMissouri green
  • RoyalblauRoyal blue
  • KosmosschwarzCosmos black
  • SilbergrauSilver grey
  • NaturNature
  • HerbstgelbAutumn yellow

Additional elements Dufourspitze

  • Seat net smallSeat net small


  • Hand over hand loop ropeHand over hand loop rope


  • V-bridgeV-bridge


  • Jungle bridgeJungle bridge


  • Slide large, straightSlide large, straight


  • Slide large, left or right curveSlide large, left or right curve


  • colorballscolorballs


  • Hammock swingHammock swing


Features

Design und Funktion

Design and function

Impressively functional! Find out what makes our framework units so special.

Herkulesseil

Hercules rope

The heart of everything!

Learn more about our climbing rope.

SECUCOPE® Spannsystem

SECUCOPE® tensioning system

Interesting facts about the installation of the SECUCOPE® tensioning system.

Ankerrahmen

Anchor frame

Simplified installation without foundations - find out more about our anchor frame.

smb-Aluminium-Kugelknoten

smb aluminium ball knot

We introduce you to the ideal connecting element

of crossing ropes.
