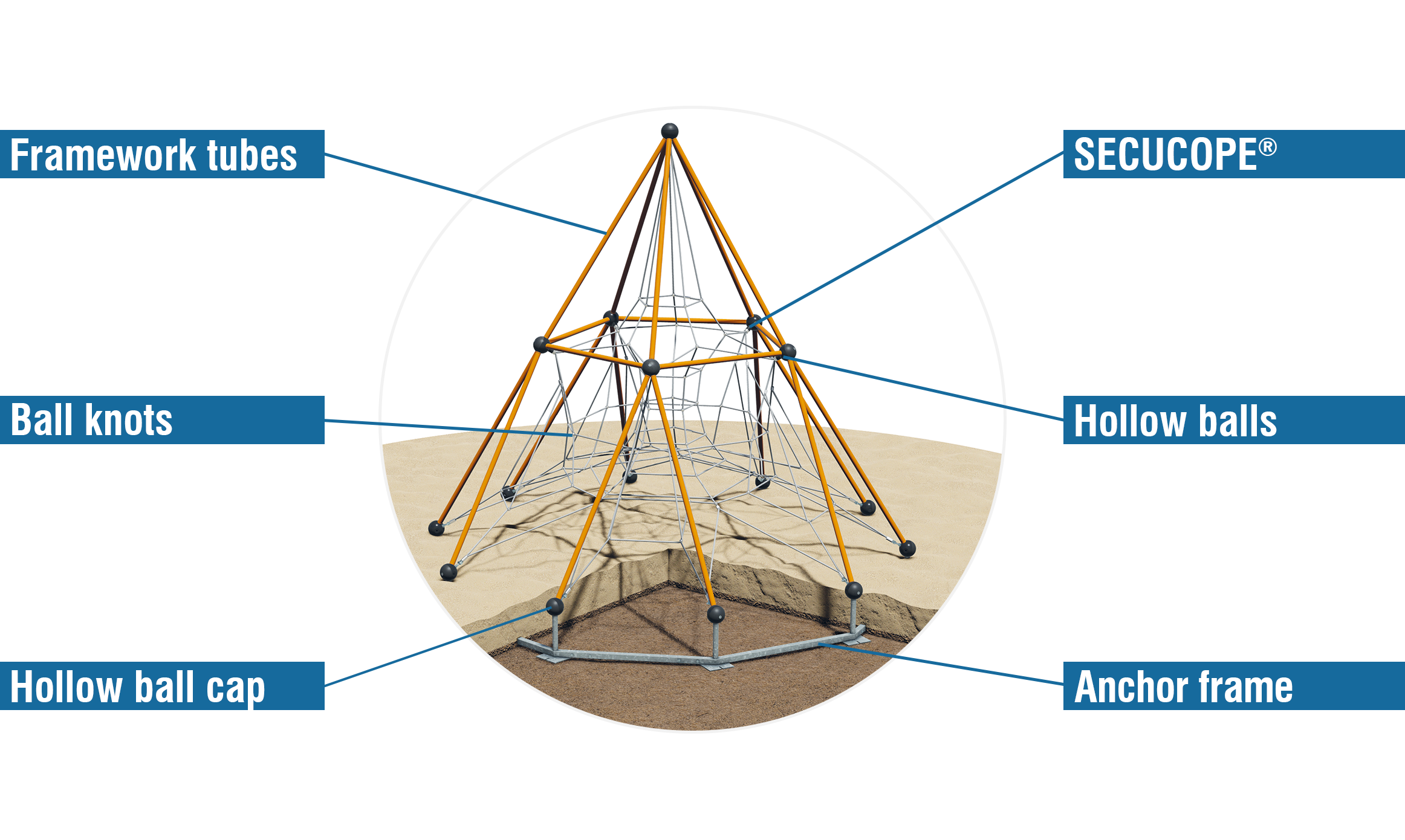

Design and function
Framework tubes
The framework steel components are spray-galvanized and color powder-coated as standard. Tubes with a diameter of 60.3 mm and wall thicknesses of between 2.9 and 4.5 mm are used.
SECUCOPE® tensioning system
The tensioning system located in a protected place in the hollow balls comfortably tensions the spacenet in the tube framework.
Learn more about our tensioning system here.
smb aluminium ball knots
The outstanding connecting element for crossing ropes. High rope forces are easily transferred. No sharp angles, no sharp edges.
Here you can get more detailed information about the smb-aluminium ball knots.
Hollow balls
The drop-forged hollow ball is hot-dip galvanized and color powder-coated. The tube screw fixings and the tensioning system is located inside of the hollow ball and therefore concealed and protected from unauthorized access.
Hollow ball cap
The cap, made from polyamide, seals off the hollow ball. A special bracket screw connection makes the final assembly simple.
Anchor frame
The basic unit does not need foundations. The screw-plug system of the anchor frame guarantees an easy, quick and precise assembly. Hot-dip galvanizing ensures a long service life.
You can find detailed information here.
