Crazy jungle

No. 7218022

Number of users	1 per meter
Assembly time	0.40 hours
Installers	2 persons
Length	4.00 m

Suitable for Adventure Park Junior.

The crazy jungle consists of robust Hercules ropes of Ø 16 mm each with galvanized steel strands, as well as a durable and easy-to-grip yarn coating made of polyamide or polyester.

The five crosses consisting of tube Ø 48 x 2.6 mm, tube length approx. 1200 mm, are permanently protected against corrosion by means of pointed galvanizing and subsequent color powder coating in a RAL color.

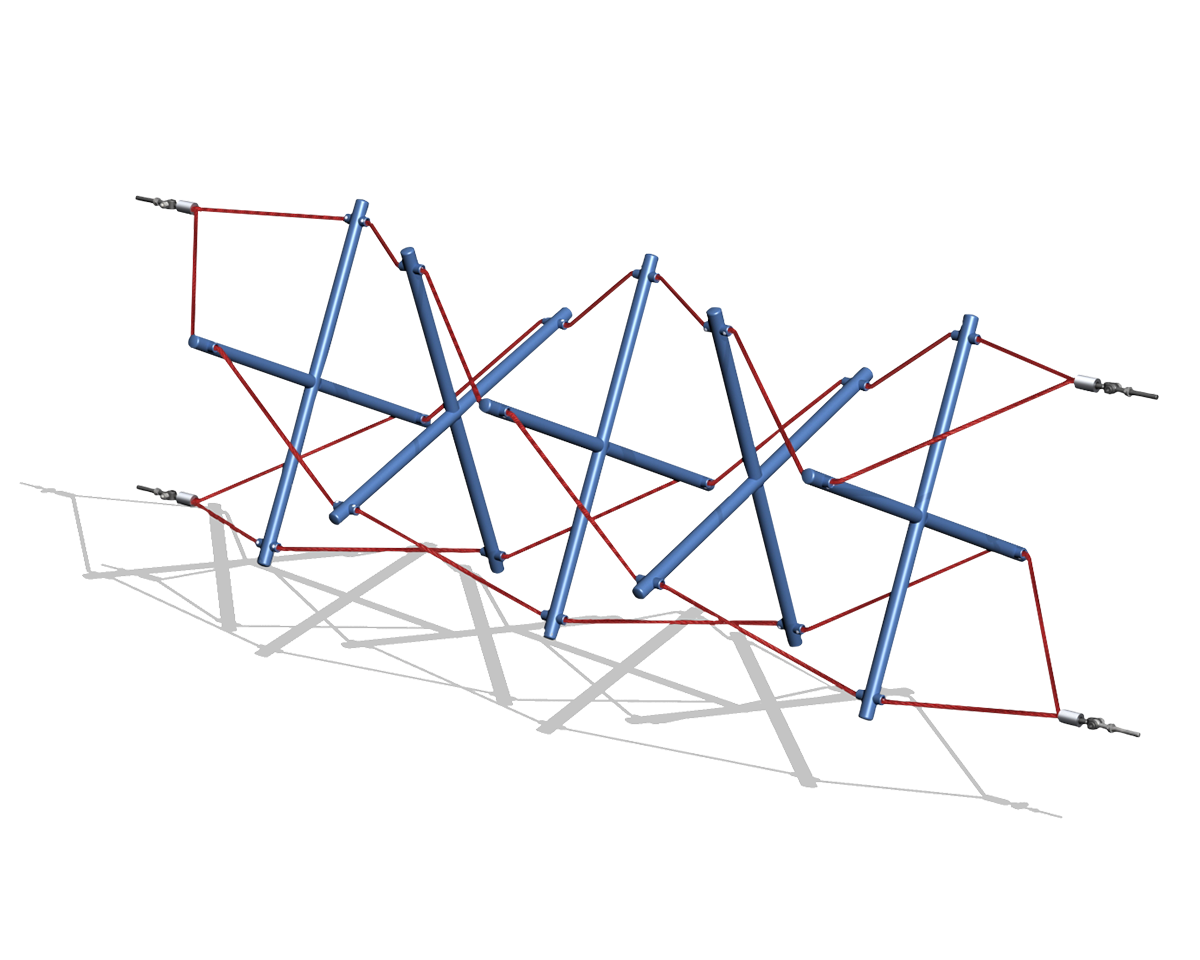

The crosses have welded sleeves through which the ropes are guided and screwed. Through the crosses the ropes describe a zigzag course.

The four ropes are attached vertically to two posts in an installation-friendly manner using the internal and protected SECUCOPE^® PLUS tensioning system. This articulated connection ensures a long service life and enables optimum rope tensioning.

The post spacing is 4.00 m (post center - post center).
